Mounting the Control Module

Determine a dry place inside the vehicle (out of the way) to mount the control
module (e.g., behind an inner body panel), making sure that all wiring will
reach the intended location.
1. Plug the sensor wires, speaker and power harness into the control
module before mounting. The sensor must be plugged into the
corresponding socket (see Figure 4). The control module is pre-fitted
with Velcro for mounting.
2. Clean the pre-selected mounting area to ensure good adhesion.
3. When the surface is dry, peel the backing off the Velcro pad and
attach the control module.

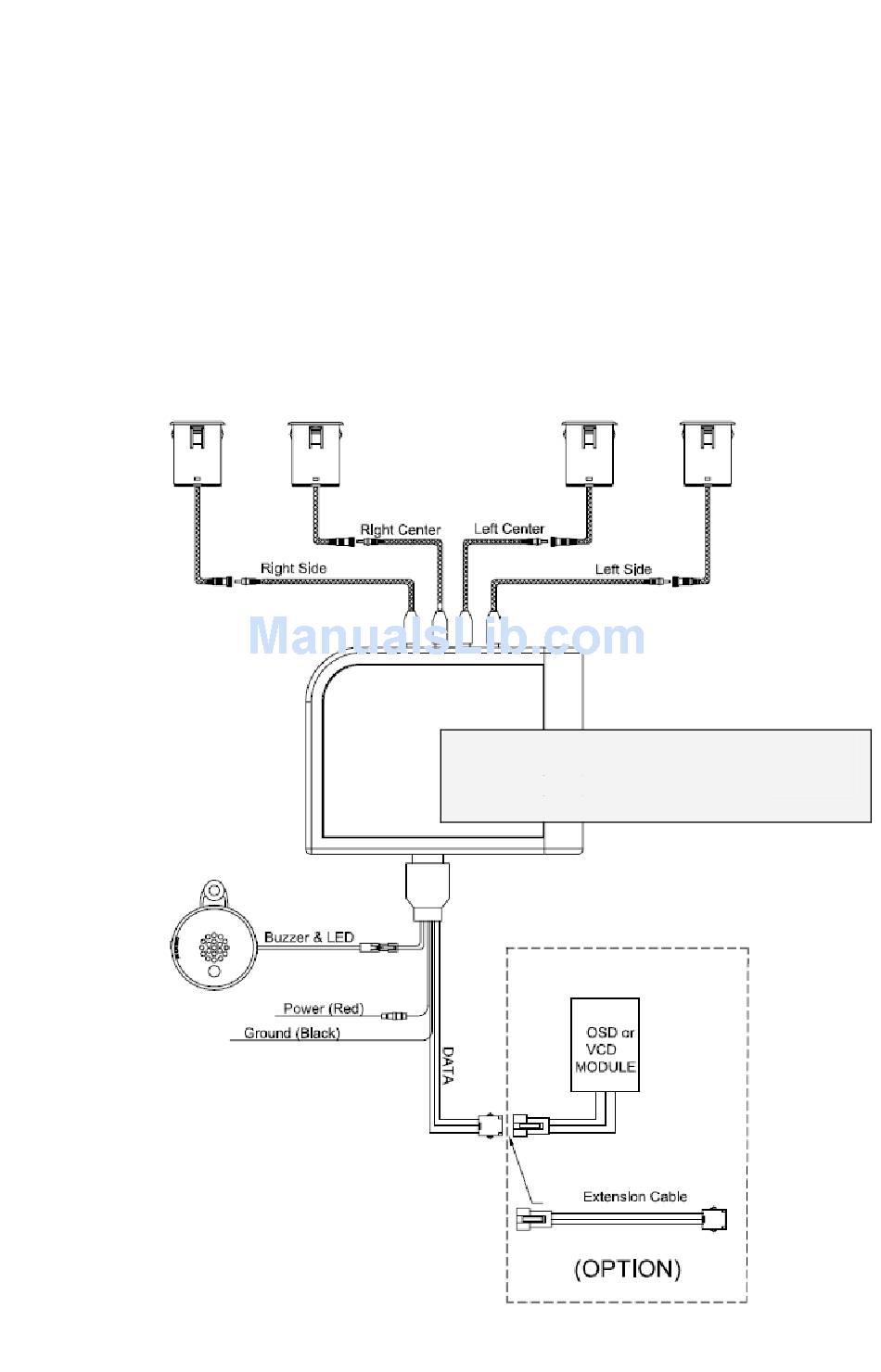

Figure 4
LS – Left Side Sensor (only used in 4 sensor install)
RS – Right Side Sensor (only used on a 4 sensor install)
