TABLE OF CONTENTS
Warnings.......................................................................................2
Product Description ......................................................................3
Packing List ..................................................................................3
Installation Instructions ................................................................4
Mounting the Sensors .......................................................4
Installing the Power Harness ...........................................7
Mounting the Speaker.......................................................8
Mounting the Control Module ..........................................9
Specifications..............................................................................10
Maintenance................................................................................10
Troubleshooting..........................................................................10
Warranty .....................................................................................11

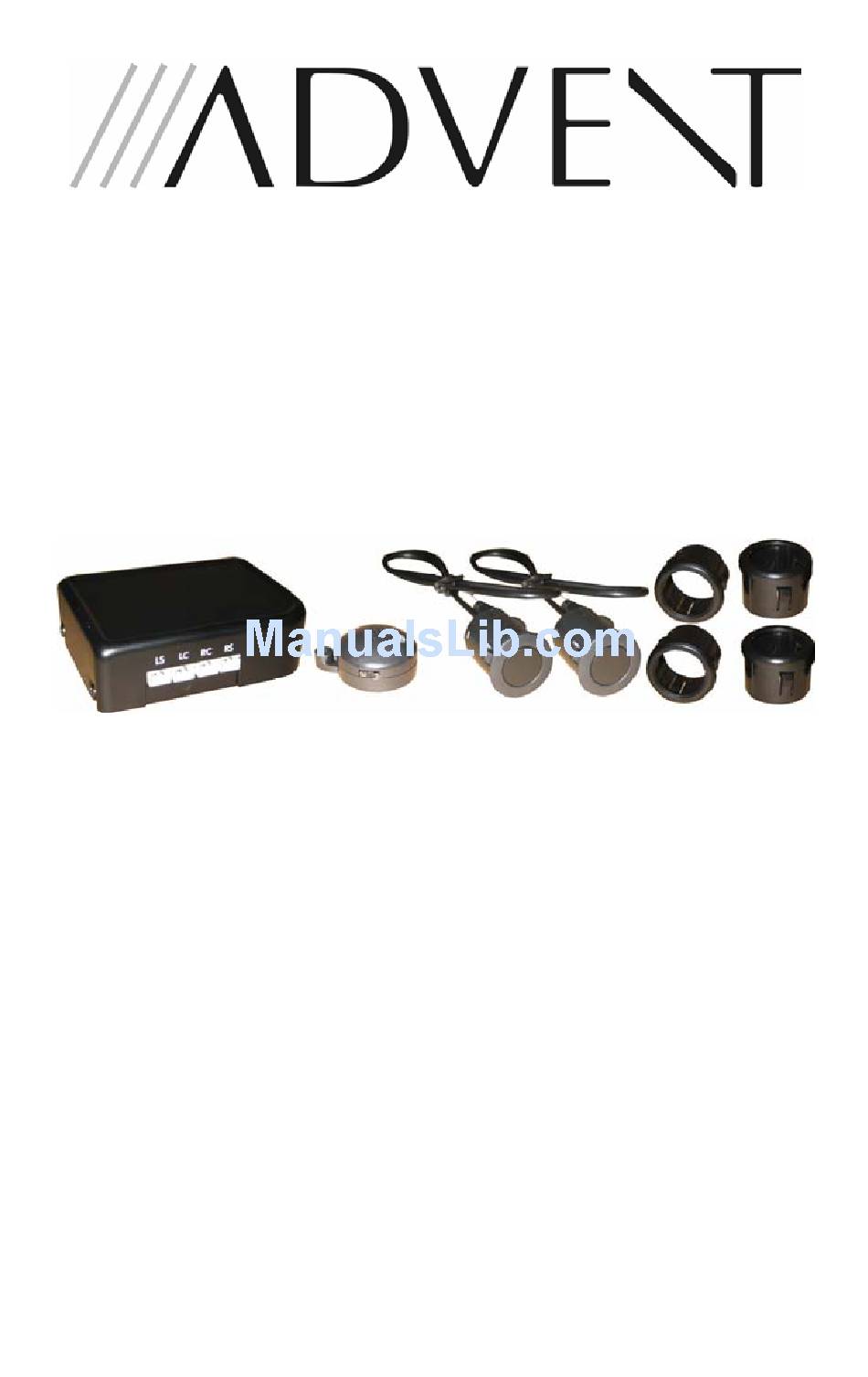

Rear Parking Sensor System
Model: PSS100
Installation Manual
Advertisement
Table of Contents
Related Manuals for Advent PSS100 - Standard Rear Only System
Summary of Contents for Advent PSS100 - Standard Rear Only System
-
Page 1: Table Of Contents
Rear Parking Sensor System Model: PSS100 Installation Manual TABLE OF CONTENTS Warnings..................2 Product Description ..............3 Packing List ..................3 Installation Instructions ..............4 Mounting the Sensors ............4 Installing the Power Harness ...........7 Mounting the Speaker............8 Mounting the Control Module ..........9 Specifications................10 Maintenance................10 Troubleshooting................10 Warranty ..................11... - Page 2 Features • Two reversing sensors detect obstacles up to 5 feet • Upgradeable to a 4 Sensor system (requires part #: PSS200) • Includes 0° and 8° sensor sleeves to fit most bumpers • Activates only when vehicle is in reverse •...
-
Page 3: Warnings
Your first priority while driving should always be the safe operation of your vehicle. Audiovox Electronics Corporation cannot accept any responsibility whatsoever for accidents resulting from failure to observe these precautions or safety instructions. -
Page 4: Product Description

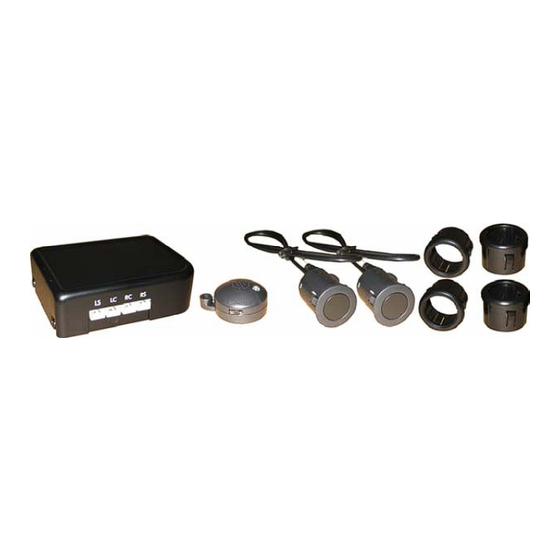

Product Description This Rear Parking Sensor System is designed to assist the driver by providing an alert when an object is behind the vehicle whenever the vehicle is shifted into reverse. Never rely solely on this product to ensure the area is clear of children and/or obstructions. This product is not intended to replace existing safety procedures, but rather to add an additional safety tool for your vehicle . -
Page 5: Installation Instructions
Installation Instructions Before installing this product, take time to familiarize yourself with the items in the box and use the packing list to verify all parts are present. Mounting the Sensors Choosing the Correct Sensor Sleeve Use the application guide below to determine whether a sensor sleeve will be required. - Page 6 Marking and Drilling Holes Figure 1 (2 sensors) Figure 2 (4 Sensors) Mark the locations of the sensors on the rear bumper using a grease pencil. Identify the sensors’ height on the bumper and mark. The sensor height should be between 18” and 30” from the ground. Divide the bumper as shown in Figure 1 for a two sensor install or as shown in Figure 2 for a four sensor install.
- Page 7 Installing the Sensor Sleeve and Sensors NOTE: When installing the sensors into the sensor sleeves, push on the outer ring of the sensor only. Never push on the center of the sensor. 1. Ensure sensors and sleeves are upright (All products have an alignment mark on the top).
-
Page 8: Installing The Power Harness
Installing the Power Harness Tap/Run Connection 1. Wire the Power Harness to the vehicle’s reverse lamp. Locate the reverse lamp in the tail light assembly. Using the tap connector supplied, perform the following steps: Place the un-stripped positive lead wire on the run channel. Insert the un-stripped red power wire completely. -
Page 9: Mounting The Speaker
Mounting the Speaker The speaker has three volume settings: Off, Hi, and Low. Since the speaker can be adjusted as needed, you should mount the speaker in an accessible location in the interior. 1. Route the wires for the speaker to the area where you will install the control module. -
Page 10: Mounting The Control Module
Mounting the Control Module Determine a dry place inside the vehicle (out of the way) to mount the control module (e.g., behind an inner body panel), making sure that all wiring will reach the intended location. 1. Plug the sensor wires, speaker and power harness into the control module before mounting. -
Page 11: Specifications
Specifications Power Supply DC9V-DC16V Current Draw <120mA Detecting Distance 0ft – 5ft Sensor Cable Length 19.68ft Operating Temperature Range -0°F ~ 176°F Maintenance Though your backup system requires minimum care, you should maintain its condition and performance using the following the guidelines: •... - Page 13 © 2008 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppage, NY...
