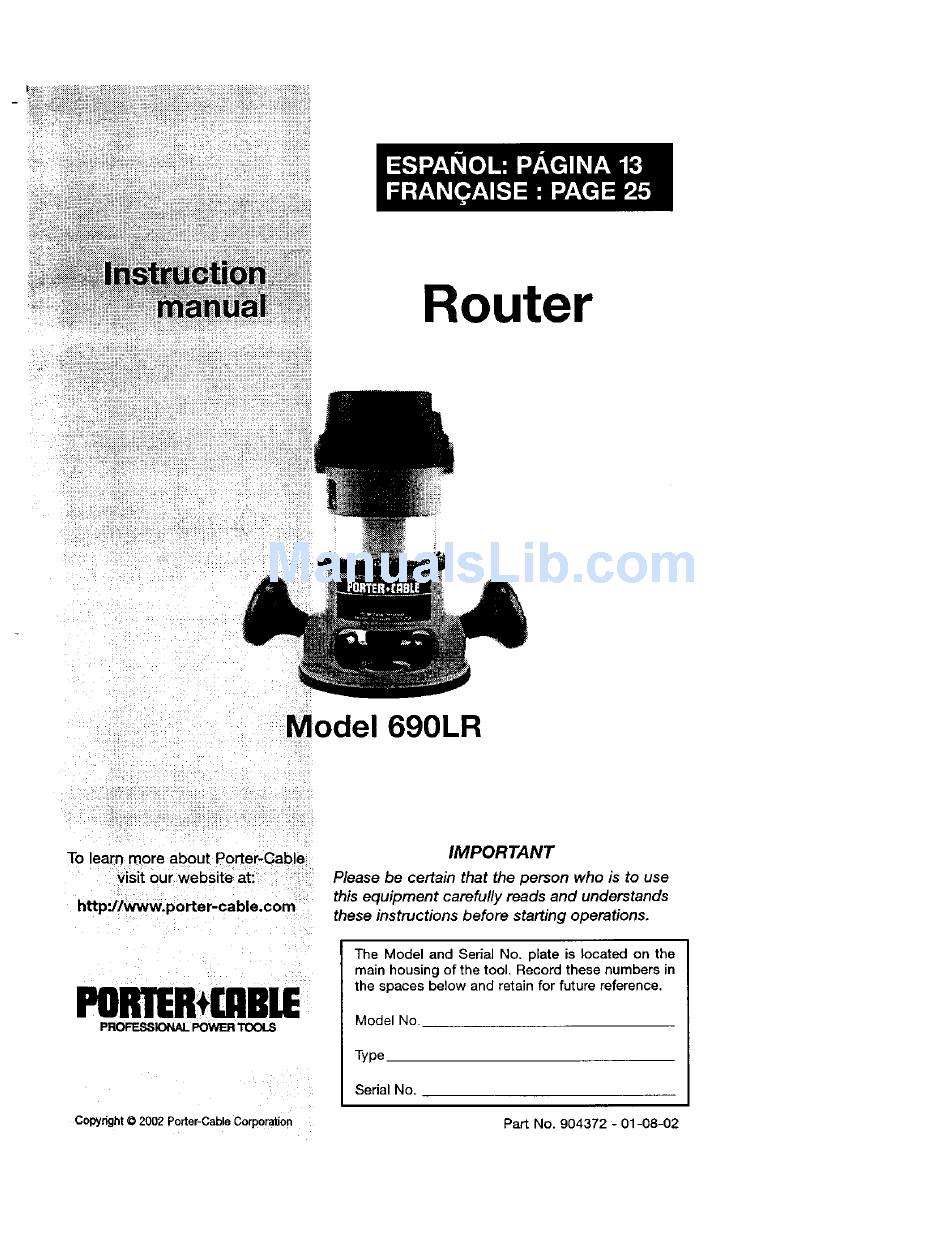

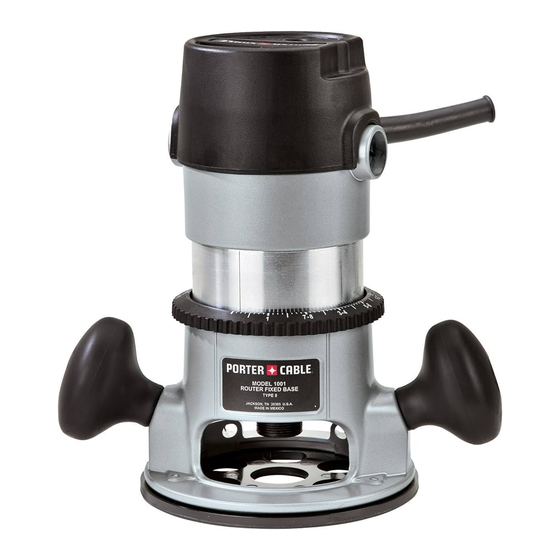

Router
Model 690LR
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
POIllERJWBlf
Copyright © 2002 Porter-Cable Corporation
IMPORTANT
Please be certain that the person who is to use
this equipment carefully reads and understands
these instructions before starting operations.
The Model and Serial No. plate is located on the
main housing of the tool. Record these numbers in
the spaces below and retain for future reference.
Model No.
Type
Serial No.
Part No. 904372 - 01-08-02

Advertisement

Table of Contents
loading

Related Manuals for Porter-Cable 690LR

Summary of Contents for Porter-Cable 690LR

  • Page 1 Router Model 690LR IMPORTANT To learn more about Porter-Cable visit our website at: Please be certain that the person who is to use this equipment carefully reads and understands http://www.porter-cable.com these instructions before starting operations. The Model and Serial No. plate is located on the main housing of the tool.

  • Page 2: General Safety Rules

    WARNING: SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, OTHER CONSTRUCTION ACTIVITIES contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • lead from lead-based paints, • crystalline silica from bricks and cement and other masonry products, and •...

  • Page 3: Personal Safety

    PERSONAL SAFETY Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury, power tools may result in serious personal injury.

  • Page 4: Additional Safety Rules For Routers

    If you have questions relative to its application, DO NOT use the tool until you have written Porter-Cable and we have advised you. Technical Service Manager...

  • Page 5: Extension Cord Selection

    REPLACEMENT PARTS When servicing use only identicalreplacement parts. MOTOR Many Porter-Cable tools will operate on either D.C., or single phase 25 to 60 cycle A.C. current and voltage within plus or minus 5 percent of that shown on the specification plate on the tool.

  • Page 6: Functional Description

    FUNCTIONAL DESCRIPTION FOREWORD The Porter Cable Model 690LR is a router designed for continuous operation to handle the most demanding applications. OPERATING INSTRUCTIONS SELECTING THE BIT This tool accommodates bits with 1/4" and 1/2" diameter shanks that are installed directly into the power unit collet.

  • Page 7: Adjusting Depth Of Cut

    A'n'ACHING MOTOR TO THE ROUTER CAUTION: DISCONNECT TOOL FROM POWER SOURCE. Open the clamp (A) Fig. 1, and set the power unit in the base unit. Align the lower pin of the motor unit (B) Fig. 1 with the groove in the base. Rotate the motor unit CLOCKWISE into the base until the upper guide pins are set in the groove of the base.

  • Page 8: Connecting To The Power Source

    Open the clamp (C) Fig. 4, and adjust the motor so that the co]let nut engages the center hole in the sub- base. Allow the sub-base to center itself on the collet nut. Close clamp. Tighten the sub-base mounting screws securely. Fig.
  • Page 9 Since cutter rotates clockwise (when viewing router from top), move the router from left to right to obtain a more efficient cutting. (Fig. 6). When working on the inside templet, move the router in clockwise direction. When working on the outside of a templet, move router...

  • Page 10: Maintenance

    ONLY be performed by an AUTHORIZED PORTER-CABLE SERVICE STATION or a PORTER-CABLE/DELTA FACTORY SERVICE CENTER. At approximately 100 hours of use, take or send your tool to your nearest authorized Porter-Cable Service...
  • Page 11 LIMITED ONE YEAR WARRANTY Porter-Cable warrants its Professional Power Tools for a pedod of one year from the date of original purchase. We will repair or replace at our option, any part or parts of the product and accessories covered under this warranty which, after examination, proves to be defective in workmanship or material during the wan'anty period.
  • Page 12 ServiceCenter.or P_,ter-Ceds) • DeltaFactc_ SeanceCente_Ifyoudo not haveaccessto any of these,call888-848-5175 and youw_ll be dirscted to tbe nearest Porter-Cable* Data FaotorySe_ce Cente_ Las E®acionesde Serv_o Autc_.adas est_nubicades en touchesgrandesc=udades, U ame a] 8(X)_87-8665 6 al 731-541-6042 papaobte_erasistenciaa fin de k_cal_aruna. Las piezasy _os accesor_ papa_s prodectosPorter_abCe•...
