Double Insulated
Routers

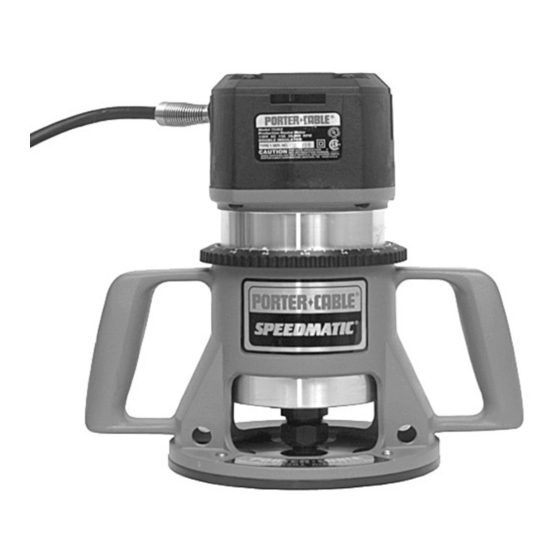

MODEL 7537
Consisting of:
MODEL 75371 Base
MODEL 75372 Motor
Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.
The Model and Serial No. plate is located on the main
housing of the tool. Record these numbers in the
spaces below and retain for future reference.
Model No. ______________________________________
Type ___________________________________________
Serial No. _______________________________________
MODEL 7536
Consisting of:
MODEL 75361 Base
MODEL 75362 Motor
IMPORTANT
Part No. 900314 - 12-05-03
