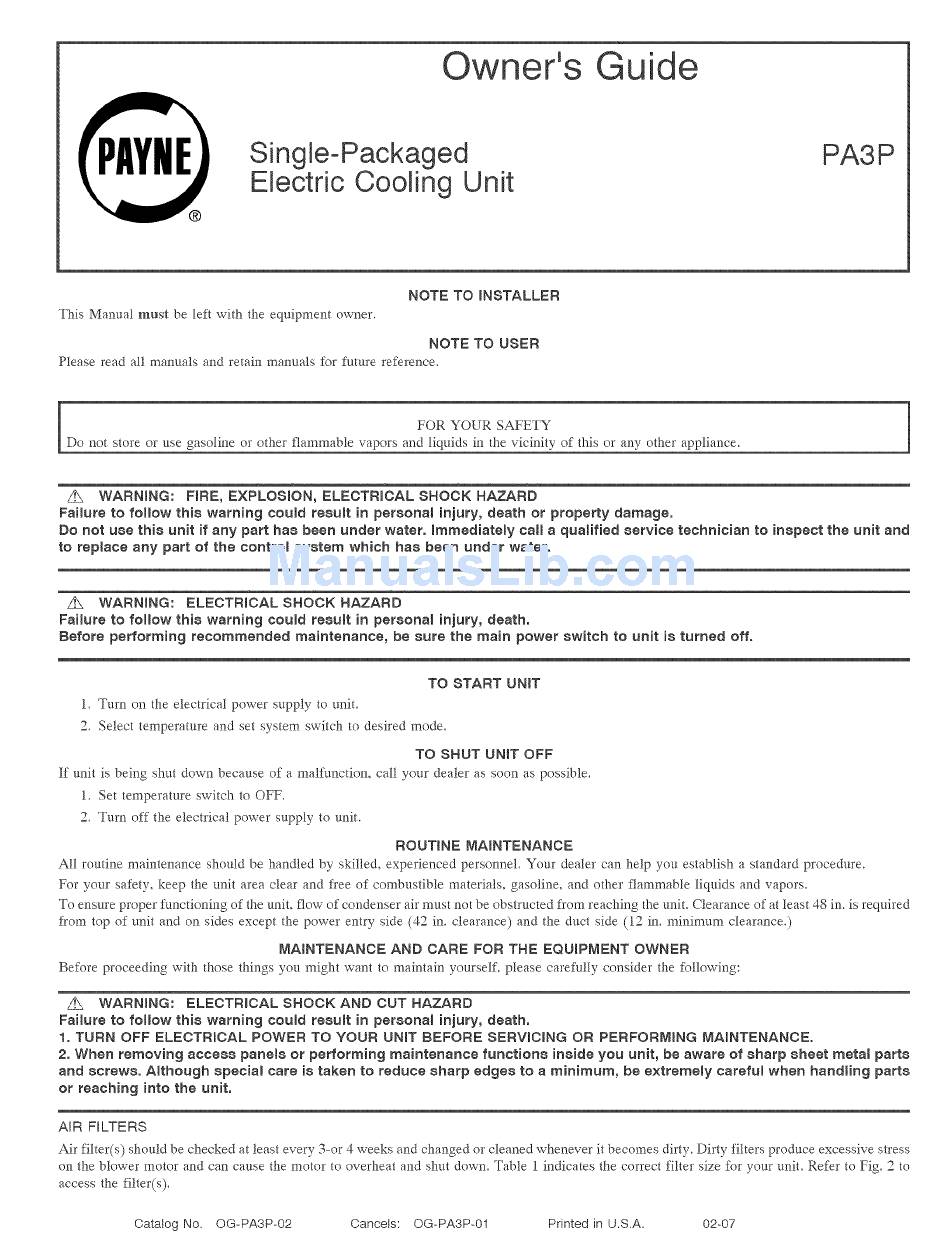

Payne PA3P Owner's Manual

Single-Packaged
Electric Cooling Unit
Guide
PA3P
NOTE TO INSTALLER
This Manual must be left with the equipment owner.
NOTE TO USER
Please read all manuals and retain manuals for _uture re_brence.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
/1"_ WARNING:
FIRE, EXPLOSION, ELEOTRmOAL SHOCK HAZARD
Failure to follow this warning could resuR in personal injury, death or property damage.
Do not use this unit if any part has been under water. Ummediately can a qualified service technician to inspect the unit and
to replace any part of the control system which has been under water.
z_ WARNING: ELEOTRUOAL SHOCK HAZARD
Failure to follow this warning could result in personal injury, death.
Before performing recommended maintenance, be sure the main power switch to unit is turned off.
TO START UNIT
1. Turn on the electrical power supply to unit.
2. Select temperature and set system switch to desired mode.
TO SHUT UNIT OFF
If unit is being shut down because of a malfunction, call your dealer as soon as possible.
1. Set temperature switch to OFF.
2. Turn off the electrical power supply to unit.
ROUTINE MAINTENANCE
All routine maintenance should be handled by skilled, experienced personnel Your dealer can help yon establish a standard procedure.
For your safety, keep the unit area clear and free of combustible materials, gasoline, and other flammable liquids and vapors.
To ensure proper functioning of the unit, flow of condenser air must not be obstructed fi'om reaching the unit. Clearance of at least 48 in. is required
from top of unit and on sides except the power entry side (42 in. clearance) and the duct side (12 in. minimum clearance.)
MAINTENANCE AND CARE FOR THE EQUmPNENT OWNER
Be_bre proceeding with those things you might want to maintain yourself, please carefldly consider the _bllowing:
z_ WARNING: ELECTRICAL SHOCK AND CUT HAZARD
Failure to follow this warning could result in personal injury, death.
1, TURN OFF ELECTRICAL POWER TO YOUR UNUT BEFORE SERVICING OR PERFORMING MAINTENANCE.
2. When removing access panels or performing maintenance functions inside you unit, be aware of sharp sheet metat parts
and screws. Although special care is taken to reduce sharp edges to a minimum, be extremely careful when handling parts
or reaching into the unit.
AIR FILTERS
Air filter(s) should be checked at least every 3-or 4 weeks and changed or cleaned whenever it becomes dirty. Dirty filters produce excessive stress
on the blower motor and can cause the motor to overheat and shut down. Table 1 indicates the correct filter size _br your unit. Refer to Fig. 2 to
access the filter(s).
Catalog No. OG-PA3P-02 Cancels: OG-PA3P-01 Printed in U.S.A. 02-07
