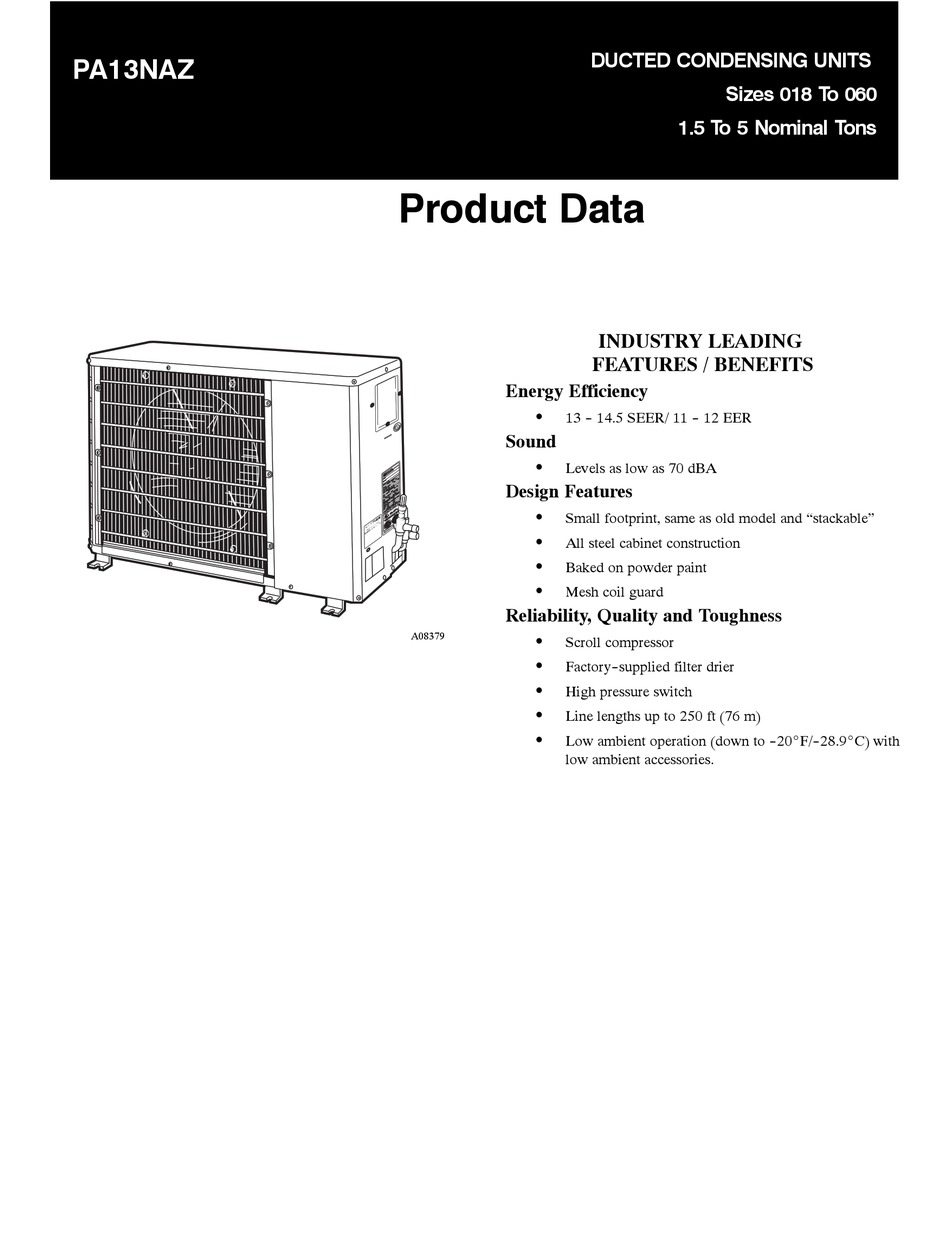

Ducted condensing units sizes 018 to 060 1.5 to 5 nominal tons
Hide thumbs
Table of Contents

Advertisement

Quick Links

PA13NAZ

Product Data

Energy Efficiency
S
13 - - 14.5 SEER/ 11 - - 12 EER
Sound
S
Levels as low as 70 dBA
Design Features
S
Small footprint, same as old model and "stackable"
S
All steel cabinet construction
S
Baked on powder paint
S
Mesh coil guard
Reliability, Quality and Toughness
A08379
S
Scroll compressor
S
Factory- -supplied filter drier
S
High pressure switch
S
Line lengths up to 250 ft (76 m)
S
Low ambient operation (down to - -20_F/- -28.9_C) with
low ambient accessories.
DUCTED CONDENSING UNITS
Sizes 018 To 060
1.5 To 5 Nominal Tons
INDUSTRY LEADING
FEATURES / BENEFITS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA13NAZ and is the answer not in the manual?

Questions and answers

Related Manuals for Payne PA13NAZ

Summary of Contents for Payne PA13NAZ

  • Page 1: Product Data

    DUCTED CONDENSING UNITS PA13NAZ Sizes 018 To 060 1.5 To 5 Nominal Tons Product Data INDUSTRY LEADING FEATURES / BENEFITS Energy Efficiency 13 - - 14.5 SEER/ 11 - - 12 EER Sound Levels as low as 70 dBA Design Features Small footprint, same as old model and “stackable”...

  • Page 2: Model Number Nomenclature

    Z --- CMX 030 --- 2 ---1/2 Tons 036 --- 3 Tons 048 --- 4 Ton 060 --- 5 Ton PHYSICAL DATA UNIT PA13NAZ 018 -- B 024 -- B 030 -- A 036 -- A 048 -- B 060 -- B NOMINAL CAPACITY (Tons) 2.50...

  • Page 3: Refrigerant Piping Length Limitations

    REFRIGERANT PIPING LENGTH LIMITATIONS Liquid Line Sizing and Maximum Total Equivalent Lengths for Cooling Only Systems with R- -410A Refrigerant The maximum allowable length of a residential split system depends on the liquid line diameter and vertical separation between indoor and outdoor units.

  • Page 4: Long Line Applications

    REFRIGERANT CHARGE ADJUSTMENTS Liquid Line Size R --- 410A Charge oz/ft (g/m) 0.60 (17.74) (Factory charge for lineset = 9 oz / 266.16 g) 5/16 0.40 (11.83) 0.27 (7.98) Units are factory charged for 15 ft (4.6 m) of 3/8” liquid line. The factory charge for 3/8” lineset 9 oz (266.16 g). When using other length or diameter liquid lines, charge adjustments are required per the chart above.
  • Page 5 ACCESSORIES KIT NUMBER KIT NAME KAACH1401AAA Crankcase Heater KAACH1201AAA Crankcase Heater KAACS0201PTC PTC Kit KAAFT0101AAA Evaporator Freeze Stat KAAHI0501PUR High Press. Switch KAALP0401PUR Low Press. Switch KAALS0201LLS Solenoid Valve KAATD0101TDR Time Delay Relay Winter Start Kit KAAWS0101AAA (for low ambient) KSACY0101AAA Cycle Protector KSAHS1501AAA...

  • Page 6: Accessory Usage Guideline

    4. Outdoor Air Temperature Sensor low- -pressure switch by bypassing it for the first 3 minutes of operation. Designed for use with Payne Thermostats listed in this publication. This device enables the thermostat to display the outdoor temperature. This device also is required to enable special thermostat features such as auxiliary heat lock out.

  • Page 7: Electrical Data

    ELECTRICAL DATA VOLTAGE RANGE* COMPRESSOR OUTDOOR FAN MOTOR PA13NAZ FUSE/CKT UNIT V ---PH ---Hz BKR AMPS SIZE AMPS 018---A 208/230--- 1--- 60 48.0 0.125 0.09 12.1 024---B 208/230--- 1--- 60 13.5 58.3 0.125 0.09 17.7 030---A 208/230--- 1--- 60 14.1 73.0...
  • Page 10 AHRI* COMBINATION RATINGS ARI Ref. No. Model Number Indoor Model Furnace Model Capacity EER @ A** SEER 3092030 PA13NAZ18---A †CNPV*1814A**+TDR 17,000 11.0 13.0 3092031 PA13NAZ18---A CAP**1814A** PG8*EA024045 17,000 11.5 14.0 3092033 PA13NAZ18---A CAP**2414A** PG8*EA024045 17,400 12.0 14.5 3092032 PA13NAZ18---A CAP**2414A**+TDR 17,400 11.0 13.0...
  • Page 11 AHRI* COMBINATION RATINGS (CONT.) ARI Ref. No. Model Number Indoor Model Furnace Model Capacity EER @ A** SEER 3466439 PA13NAZ24---B CSPH*3012A** PG9MXA036060 23,600 12.0 14.5 3466440 PA13NAZ24---B CSPH*3012A** PG9MXA036080 23,600 12.0 14.5 3466437 PA13NAZ24---B CSPH*3012A**+TDR 23,600 11.0 13.0 3466449 PA13NAZ24---B FF1ENP024 23,400 11.0...
  • Page 12 AHRI* COMBINATION RATINGS (CONT.) ARI Ref. No. Model Number Indoor Model Furnace Model Capacity EER @ A** SEER 3092139 PA13NAZ30---A CSPH*3612A** PG9MTAV60125*A** 29,000 12.0 14.5 3095446 PA13NAZ30---A CSPH*3612A** PG9MXA036060 29,000 12.0 14.5 3095447 PA13NAZ30---A CSPH*3612A** PG9MXA036080 29,000 12.0 14.5 3095448 PA13NAZ30---A CSPH*3612A** PG9MXA048080...
  • Page 13 AHRI* COMBINATION RATINGS (CONT.) ARI Ref. No. Model Number Indoor Model Furnace Model Capacity EER @ A** SEER 3092191 PA13NAZ36---A CSPH*3612A** PG8*EA060110 33,400 11.5 14.0 3092192 PA13NAZ36---A CSPH*3612A** PG9MTAV36050*A** 33,400 11.5 14.0 3092193 PA13NAZ36---A CSPH*3612A** PG9MTAV36075*A** 33,400 11.5 14.0 3092194 PA13NAZ36---A CSPH*3612A** PG9MTAV60100*A**...
  • Page 14 AHRI* COMBINATION RATINGS (CONT.) ARI Ref. No. Model Number Indoor Model Furnace Model Capacity EER @ A** SEER 3095717 PA13PAZ36---A CNPV*3617A** PG9MXA048080 33,400 11.5 14.0 3092226 PA13PAZ36---A CNPV*3617A**+TDR 33,400 11.0 13.0 3092229 PA13PAZ36---A CNPV*3621A** PG8*EA048090 33,400 11.5 14.0 3092230 PA13PAZ36---A CNPV*3621A** PG8*EA060110 33,400...
  • Page 15 AHRI* COMBINATION RATINGS (CONT.) ARI Ref. No. Model Number Indoor Model Furnace Model Capacity EER @ A** SEER 3095665 PA13EAZ36---A CNPH*3617A** PG9MXA060100 33,200 11.5 14.0 3092297 PA13EAZ36---A CNPH*3617A**+TDR 33,400 11.0 13.0 3092307 PA13EAZ36---A CNPH*4221A** PG8*EA024045 33,600 11.5 14.0 3092308 PA13EAZ36---A CNPH*4221A** PG8*EA048070 33,600...
  • Page 16 AHRI* COMBINATION RATINGS (CONT.) ARI Ref. No. Model Number Indoor Model Furnace Model Capacity EER @ A** SEER 3466462 PA13NAZ48---B CAP**4824A**+TDR 47,000 11.0 13.0 3466467 PA13NAZ48---B CAP**6021A** PG8*EA048090 47,000 12.0 14.5 3466468 PA13NAZ48---B CAP**6021A** PG8*EA060110 47,000 12.0 14.5 3466469 PA13NAZ48---B CAP**6021A** PG9MXA060100 47,000...
  • Page 17 AHRI* COMBINATION RATINGS (CONT.) ARI Ref. No. Model Number Indoor Model Furnace Model Capacity EER @ A** SEER 3466549 PA13NAZ48---B PF4MNA048 47,000 11.0 13.0 3466551 PA13NAZ48---B PF4MNA049 47,500 12.0 14.5 3466550 PA13NAZ48---B PF4MNA060 47,500 11.0 13.0 3466552 PA13NAZ48---B PF4MNA061 48,000 12.0 14.5 3466553...
  • Page 18 AHRI* COMBINATION RATINGS (CONT.) ARI Ref. No. Model Number Indoor Model Furnace Model Capacity EER @ A** SEER 3466593 PA13PAZ48---B CNPV*6124A**+TDR 48,000 11.0 13.0 3466629 PA13PAZ48---B CSPH*4812A** PG8*EA048070 46,500 11.0 13.0 3466630 PA13PAZ48---B CSPH*4812A** PG8*EA048090 46,500 11.5 14.0 3466631 PA13PAZ48---B CSPH*4812A** PG8*EA060110 46,500...
  • Page 19 AHRI* COMBINATION RATINGS (CONT.) ARI Ref. No. Model Number Indoor Model Furnace Model Capacity EER @ A** SEER 3466720 PA13EAZ48---B CNPH*6124A** PG8*EA060135 47,000 12.0 14.5 3466724 PA13EAZ48---B CNPH*6124A** PG9MTAV60100*A** 47,000 11.5 14.0 3466725 PA13EAZ48---B CNPH*6124A** PG9MTAV60125*A** 47,000 11.5 14.0 3466721 PA13EAZ48---B CNPH*6124A** PG9MXA048080...
  • Page 20 AHRI* COMBINATION RATINGS (CONT.) ARI Ref. No. Model Number Indoor Model Furnace Model Capacity EER @ A** SEER 3466784 PA13NAZ60---B CSPH*6012A** PG8*EA060135 56,000 11.0 13.5 3466785 PA13NAZ60---B CSPH*6012A** PG9MXA048080 56,000 11.0 13.2 3466786 PA13NAZ60---B CSPH*6012A** PG9MXA060100 56,000 11.0 13.5 3466787 PA13NAZ60---B CSPH*6012A** PG9MXA060120...
  • Page 21 TDR — Time---Delay Relay. In most cases, only 1 method should be used to achieve TDR function. Using more than 1 method in a system may cause degradation in performance. Use either the accessory Time---Delay Relay KAATD0101TDR or a furnace equipped with TDR. Most Payne furnaces are equipped with TDR.

  • Page 28: Guide Specifications

    GUIDE SPECIFICATIONS AIR- -COOLED, SPLIT- -SYSTEM AIR CONDITIONER PA13NAZ GENERAL 1- -1/2 TO 5 NOMINAL TONS — Condenser fan motors will be totally enclosed, 1- -phase System Description type with class B insulation and permanently lubricated Outdoor- -mounted, air- -cooled, split- -system air conditioner unit bearings.
  • Page 29 SYSTEM DESIGN SUMMARY 1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than 0.01- -in. wc. 2. Minimum outdoor operating air temperature without low- -ambient operation accessory is 55_F (12.8_C). 3.
  • Page 30 Copyright 2009 CAC/BDP . S 7310 W. Morris St. S Indianapolis, IN 46231 Printed in Mexico Edition Date: 07/09 Catalog No: SS---PA13NAZ---03 Replaces: SS--- PA13NAZ--- 02 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
