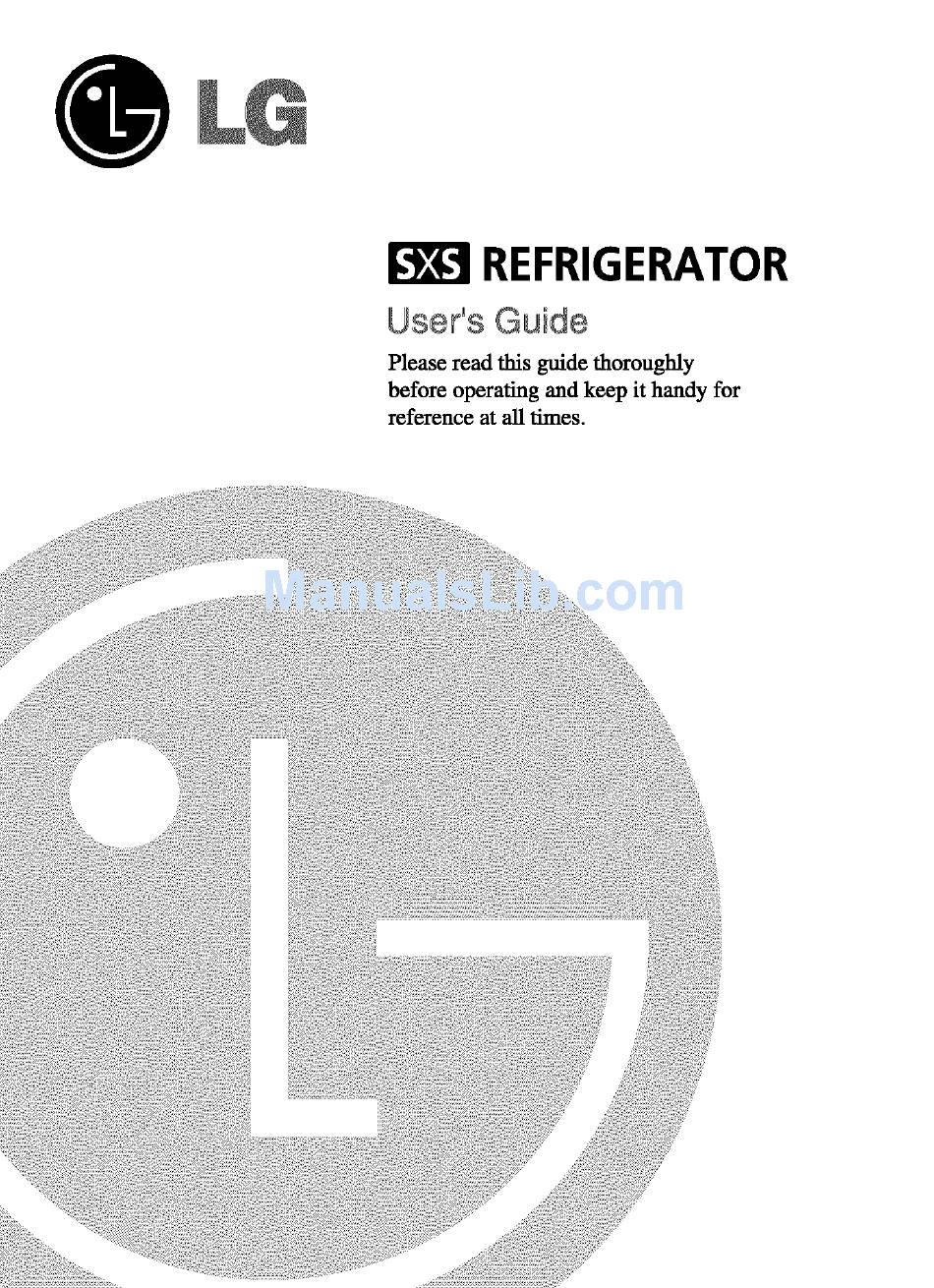

- Page 1 REFRIGERATOR User's Guide Please read this guide thoroughly before operating and keep it handy for reference at all times.
- Page 2 (In the UK Only) The wires in this mains lead are coloured in accordance with the following code : Important GREEN AND YELLOW : EARTH BLUE : NEUTRAL BROWN : LIVE This appliance must be earthed Greenand Yellow(Earth)/fll Brown(Live) Blue(Neutral) Cord As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows :...
-
Page 3: Table Of Contents
Table of Contents Introduction Entry Important Safety Instruction Identification of Parts Installation Where to Install Door Removal Mount the freezer and refrigerator compartment doors Feed Water Pipe Installation Height Adjustment Method to Connect Cables Operation Starting Adjusting the Temperatures and Functions (Dispenser / Automatic ice maker) Use to Screen Use to Remote Control... -
Page 4: Entry
Entry The model and serial numbers are found on the inner case of the refrigerator compartment of this unit. These numbers are unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. -
Page 5: Identification Of Parts
Child entrapment DANGER: Riskof child entrapment, Before you throw away your old refrigerator or freezer: warning Take off the doors but leave the shelves in place so that children may not easily climb inside, The appliance is not intended for use by young children or infirm persons without supervision. -
Page 6: Where To Install
Where to Install Strong Unstable installation may cause vibration and and even floor noise, If the floor to install the refrigerator on is not even, make the refrigerator level by rotating the height adjusting screw, Carpet or floorcloth on which a refrigerator is installed may be discolored by heat from the bottom of the refrigerator, So, it is necessary to placea thick pad below the refrigerator,... -
Page 7: Door Removal
Door Removal If your access door is too narrow for the refrigerator to passthe through, remove the refrigerator door and pass the refrigerator laterally, Remove lower Removethe lower cover by lifting upward, and cover and then pull up the feed water tube while pressing then feed water area (9 shown in the figure to the right. -
Page 8: Mount The Freezer And Refrigerator Compartment Doors
Remove the 3) Remove keeper by rotating it clockwise (@) refrigerator door and then remove the upper hinge by lifting it Keeper up(®). 4) Removethe refiigerator compartment door by lifting it up. Lower EtJnge Pass the Passthe refrigerator laterallythrough the access refrigerator door as shown in the right figure. -
Page 9: Height Adjustment
Height Adjustment If the freezer Make them level by inserting flat ( - type) driver into the groove of the left height adjusting screw and rotating it clockwise (0), compartment door is lower than the Height Difference refrigerator compartment door Adjus_nent Screw If the freezer Make them level by inserting fiat ( - type) driver into the groove of the right height... -
Page 10: Method To Connect Cables
Method to Connect Cables Connection There is a terminal on the rear upper part of refrigerator where the expansion Terminal port can be plugged-in. • For connection, turn the connection terminal to the right and fix it using round wires. •... -
Page 11: Starting
Starting When your refrigerator is first installed, allow it to stabilize at normal operating temperatures for 2-3 hours prior to filling it with fresh or frozen foods, If operation is interrupted, wait 5 minutes before restarting, Adjusting the temperatures and functions Screen Power button ExternalOutput j"... - Page 12 LCD Back Light LCD back light turns on to easily see display status in following cases: • When powering on • When touching desired button • When opening doors of refrigerator (refrigerator room, freezer room) Only LCD back light turns on if touching any button with the LCD back light turned off.
- Page 13 Automatic • The automatic ice maker can automatically make 8 pieces of ice cube at a time, maker 80 pieces a day, But these quantities may be varied according to various conditions including how many times the refrigerator door opens and closes, •...
- Page 14 The other Ambient temperature display window. functions • Temperature is displayed only by -9°C - 49°C, • Temperature less than -10°C is indicated with 'LO' and temperature more than 50°C is indicated with 'HI', • Temperature may differ from the actual ambient temperature as it is monitors on the upper part of refrigerator (top of door), Door open warning •...
- Page 15 Cautions Throw away the ice (about 20 pieces) and water (about 7 glasses) first made after refrigerator installation. The first ice and water may include particles or odor from the feed water pipe or feed water box, This is necessary in case that the refrigerator has not been used for a long time, Keep children away from the dispenser.
-
Page 16: Use To Screen
For more details, see the screen guide. Use To Screen Do not scrub the screen with a knife or auger with a sharp end. Pressing the screen too strongly may damage LCD screen. It is better write by using a touch pen for more clarity. -
Page 17: Shelf
Shelf Slide type shelf allows you to place or take Slide type tempered food out or put it in more conveniently, glass shelf (In select models only) Attachable wine Bottles can be stored laterally with this wine corner (In select corner, This can be attached to any shelf, models only) -
Page 18: Egg Box
Egg Box You can move the egg box to a place you want and select another form of box according to the amount of eggs, [Normal] [For Many Eggs] Convert into a Vegetable or Fresh compartment • The Bottom drawer in the refrigerator can be converted into a vegetable or fresh compartment Comna_m_nt .__Vegetable... - Page 19 Deodorizer (In select Models Only) This system efficiently absorbs strong odors by using the optical catalyst. This system r_71 Deodorizing does hot have any affect on stored food, 11 system ':.,"_ Vegetable " compartment Cco°nVersi° How to use the • Since it is installed already installed onto the cool air intake duct from the from deodorizing the refrigerator compartment, you need no separate installation, system...
-
Page 20: Location Of Foods
Location of Foods (Refer to 4pages, Identification of Parts) Automatic Automatically made ice is stored, maker Wine rack Store wine, Snack Drawer Store small foods such as bread, snacks, etc, Freezer Store various frozen foods such as meat, fish, compartment ice cream, frozen snacks, etc, shelf Freezer... -
Page 21: Storing Foods
Storing Foods • Store fresh food in the refrigerator compartment, How food is frozen and thawed is an important factor in maintaining its freshness and flavor, • Do not store food which goes bad easily at low temperatures, such as bananas,and melons, •... -
Page 22: How To Dismantle Parts
How to Dismantle Parts Freezer Separatethe lamp by pulling it out (@)while compartment slightlylifting the lamp cover (®). lamp Turn the bulb counterclockwise. Max. 60 W bulb for refrigerator is used and can be purchased at a service center. Dispenser lamp Max. - Page 23 Upper lamp in To remove the lamp cover, pull the lamp cover forwards while pressing the bottom refrigerator side of the lamp cover upwards, Turn the compartment bulb counterclockwise, Max, 60 W bulb for refrigerator is used and can be purchased at a servicecenter, Lower lamp in Separate the lamp cover by holding both...
-
Page 24: General Information
General Information Vacation time During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer storage. When you plan not to operate, keep it running remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation. -
Page 25: Trouble Shooting
Trouble Shooting Before calling for service, review this list, It may save you both time and expense, This list includes common occurrences that are not the result of defective workmanship or materials in this appliance, Normal Operations Refrigerator Refrigerator Refrigerator control is off, Set refrigerator control, compressor does not run. - Page 26 Refrigerator Thermostat is keeping the refrigerator This is normal. The Refrigerator goes on compressor at a constant temperature, and off to keep the temperature constant. does not run. Temperatures too cold Temperature in the Freezer control is set too cold Set the freezer control to a warmer freezer is too cold setting until the freezer temperature is...
- Page 27 Sound and Noise Louder sound Today's refrigerators have increased It is normal for sound levels to be higher, levels when storage capacity and maintain more Refrigerator is on. even temperatures. Refrigerator operates at higher pressures This is normal, The sound will level off as Louder sound levels when during the start of the ON cycle,...
- Page 28 Odors in Refrigerator Interior needs to be cleaned, Clean interior with sponge,warm water and baking soda, Foodwith strong odor is in the refrigerator, Cover food completely, Some containers and wrapping materials Use a different container or brand of produce odors, wrapping materials.
- Page 29 Dispenser will Ice has melted and frozen around auger Remove ice storage bin, and thaw and not dispense due to infrequent use, the contents, Clean bin, wipe dry and ice. temperature fluctuations and/or power replace in proper position, outrages, When new ice is made, dispenser should operate, Ice dispenser Ice cubes arejammed between the ice...
- Page 32 LG Electronics Inc. LG Twin Tower, 20, Yoido-Dong, Youngdungpo-Gu, Seoul, 150-721, Korea. http://www.lge.com P/NO : 3828JD8449A Printed in Korea...
