LG 47LB1DA Owner's Manual
  1. Manuals
  2. Brands
  3. LG Manuals
  4. LCD TV
  5. 47LB1DA
  6. Owner's manual
LG 47LB1DA Owner's Manual

LG 47LB1DA Owner's Manual

Hide thumbs Also See for 47LB1DA:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Training Manual
¢Ood
L@ EM÷ct_n_cs
JnCo
wwwo[geoCOm
I LCD "IV
OWNER'S MANUAL
LCD TV MODEl.
47L1_
DA
g
N
..,"%
)r,4o
)(,;?
/w2)
1080Pd
-_
........ d
K.....

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 47LB1DA and is the answer not in the manual?

Questions and answers

Related Manuals for LG 47LB1DA

Summary of Contents for LG 47LB1DA

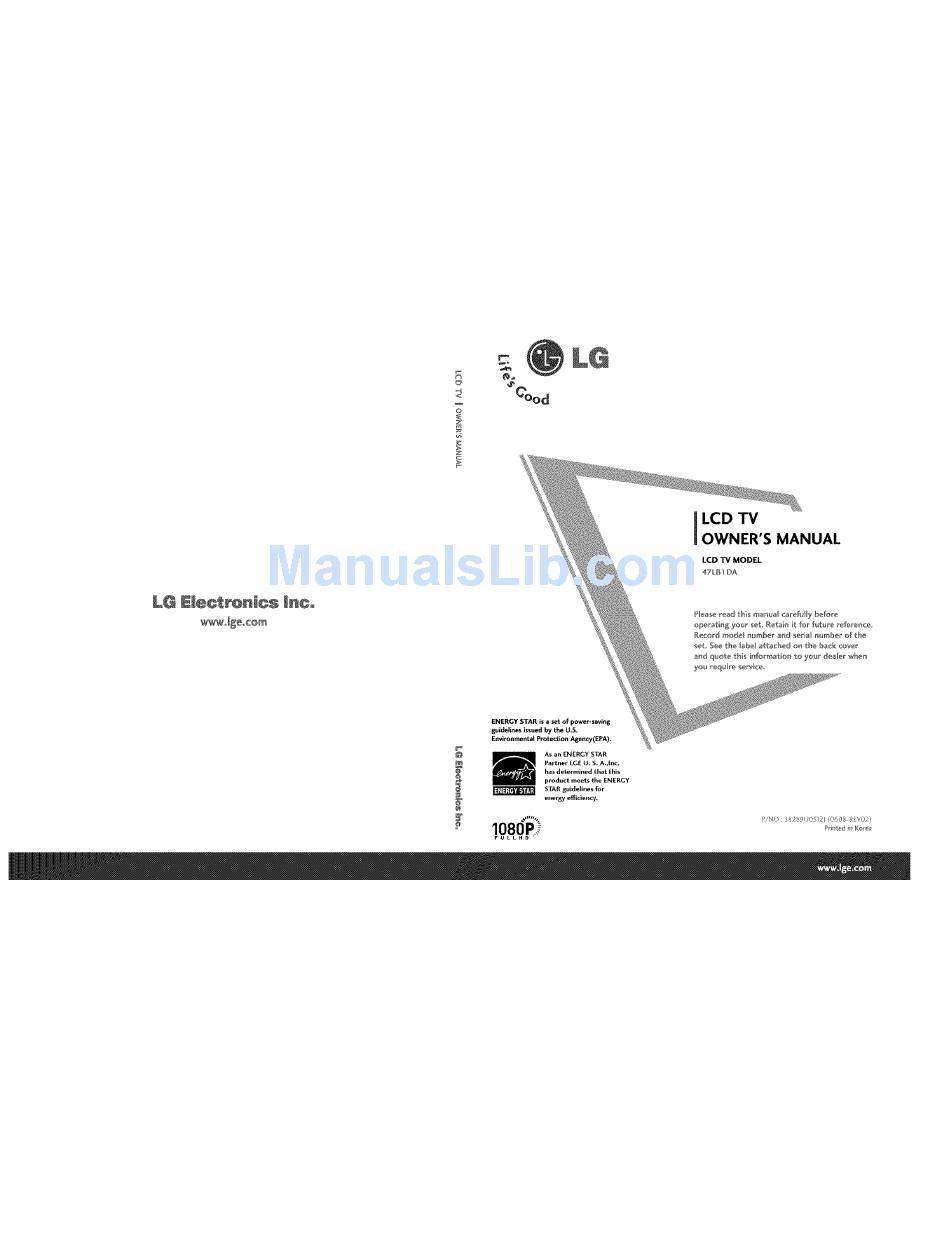

  • Page 1 ¢Ood I LCD "IV OWNER'S MANUAL LCD TV MODEl. 47L1_ L@ EM÷ct_n_cs JnCo wwwo[geoCOm ..,"% )r,4o )(,;? /w2) 1080Pd ..d K..

  • Page 2: Warning /Caution

    PRODUCT could void the user's authority to operate the P_IN OR MOISTURE. equipment. Do not a_empt to modify this product in any way without wri_en authorization from LG Electronics. Unauthorized modification could void the user's authority to operate this product...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTION IMPORTANT SAFETYINSTRUCTIONS Important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet or sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the apparatus.
  • Page 4 an authorized servicer. Protect the power Use only with the cart, stand, tdpod, bracket, cord from physical or mechanical abuse, such or table specified by the manufacturer, or sold as being twisted, kinked, pinched, closed in a with the appa_tus. When a cart is used, use door, or walked upon.

  • Page 5: Table Of Contents

    CONTENTS WARNING / CAUTION SAFETY INSTRUCTIONS....TV Guide On Screen Setup ....39-41 - Ready to Setup - Using TV Guide TV Guide On Screen _uFeature ....42-57 TV Guide On Screen rMNotices for U.S.A. / - Overview Digital Cable Compatibility ....
  • Page 6 Optional Features Aspect Ratio Control ......92-93 On Screen Menus Selection and Adjustment ..62 ......... 94-95 Caption/Text - Analog Broadcasting System Captions ... 94 Setup(Channel) - Digit[ Broadcasting System Captions ..Auto Channel Search (EZ Scan) ....Caption Option .......
  • Page 7 INTRODUCTION If the TV feels cold to the touch, there may be a ]75 ° - Wide angle range of vision small "flicker" when it is turned on. This is normal Your flat panel screen offers an exceptionally broad there is nothing wrong with TV.
  • Page 8 Officiaf term for an HD_'V that conforms to the plug- Manufactured under licen_ from Do.lby Laboratories. and-play digital calve TV standard using POD (Point "Do/'by _and the doubie-D symbol are trademarks of DIGITAL of D___[oyment) access cards, also called Oolby Iaboratories, CabLeCARDs_ that allow u_rs _ plug the cable directly into an HDTV set and enjoy HDTV and digi tal cable without baying to use a _para_...

  • Page 9: Digital Cable Compatibility

    TV GUIDE ON SCREEN NOTICES FOR U.S.A. Trademark Notice In the United States, TV GUIDE and other related marks are registered marks of Gemstar-TV Guide International, Inc_ and/or one of its affiliates_ In Canada, TV GUIDE is a registered mark of Transcontinental Inc.

  • Page 10: Accessories

    ACCESSORIES Ensure that the following accessories are included with your product. If an accessory is missing, please con- tact the dealer where you purchased the product. User must use shielded signal interface cables (D-sub 1S pin cable) with ferrite cores to maintain standard compliance for the product.
  • Page 11 512J-IH47LBIDA-UB 06/7/21 2:59 Page CONTROLS Here shown may be somewhat different from your Front Panel Controls POWER GUIDE INPUT VOLUME CHANNEL Button Buffon Buffon Bu_on Power Standby Indicator Illuminates redin standby mode. When the TV is turned on, the indicator Remote Control Sensor...

  • Page 12: Controls / Connection Options

    512JI4?LB]DA-UB 06/7/21 1:59 Page CONNECTION OPTIONS Back Connection Panel S-VID[O Input Provides better picture quality than video input. AUDIO Input Connections are available for listening stereo sound from an external device. VIDEO Input CabbCARD Connects the video signal from a video devke.

  • Page 13: Remote Control Key Functions

    522J-147LB1DA_,_UB 06/7/21 2:02 Page REMOTE CONTROL KEY FUNCTIONS When using the remote control, aim it at the remote control sensor on the TV. r_ INPUT In AV 1 -2, Component 1-2, RGB-PC (or RGB-DTV), HDMI]/DVi, and HDMI2 input sources, screen returns to the last TV channel.
  • Page 14 522J_147LB1DA_,_UB 06/7/21 2:02 Page TV, DVD, VCR, Select the remote operating mode: TV, DVD, or VCR_ p.58-61 Switches the sub picture PIP, POP, Twin picture or off mode. PIP CH-/P[P C_ Changes the PIP channel. _ p.5 9 PIP INPUT Select the connected input...

  • Page 15: Attaching The Tv To A Wall

    922J_147LB1DA.,.UB 06/7/21 2:02 Page INSTALLATION ATTACHING THE TV TO A WALL We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards. Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward direction, potentially causing injury or damaging the product.

  • Page 16: Wire Arrangement

    522J_147LB1DA.,.UB 06/7/21 2:02 Page WIRE ARRANGEMENT Connect the cables as necessary. After connec_ng the cables neatly, arrange the cables to the Cable Ho[der_ To connect an additional equipment, see the Connecti_s & Setup section. CABLE HOLDER Install the CABLE MANAGEMENT shown.

  • Page 17: Desktop Pedestal Installation

    522J-1H47LB1DA-UB 06/7/21 2:02 Page INSTALLATION DESKTOP PEDESTAL INSTALLATION For proper ventilation_ allow a clearance of 4inches on each side from the wall, .._i_i!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii ¸ SWIVELSTAND The TV can be conveniently swivelled on its stand 30 ° to the left or right to provide the optimum viewing...

  • Page 18: Auto Link

    522J_147LB1DA.,_UB 06/7/21 2:02 Page CONNECTIONS & SETUP AUTO LINK Press the INPUT button and then displays the connected external equipment list on the screen. Press the ENTER button to change the main input to the active external equipment Use the A or Y button to select the main input source_...

  • Page 19: Antenna Or Cane Connection

    522J_14?LB1DA_,_UB 06/7/21 2:02 Page CONNECTIONS & SETUP ANTENNA OR CABLE CONNECTION 1. Antenna (analog or distal) Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections. For optimum picture quality, adiust antenna direction if needed. Multi-family Dwellings/Apartments (Connect to wall antenna socket) RF Coaxial Wire (75 ohm) Single-family Dwellings/Houses...
  • Page 20 512J 1 4?LB]DA_UB 06/7/21 2:02 Page Ar_tenn_ To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly. If the antenna needs to be split for two TV's, install a 2-Way Signal Spli_er_ If the antenna is not installed properly,...

  • Page 21: Cablecard

    522J-1H47LB1DA-UB 06/7/21 2:02 Page CONNECTIONS & SETUP CABLECARD SETUP 1. How to use Insert the CableCARD TMfrom your cable service provider into the CableCARD 'M slot on the back of your if pairing information about this TV and the CableCARD displayed on the screem contact your...

  • Page 22: Hdstb Setup

    512J-1H47LBIDA_,_UB 06/8/23 4:18 Page HDSTB SETUP This TV can receive Digital Over-the=air/Cabie signals without an external digital set-top box. However, if you do receive digital signals from a digital set-top box or other digital external device, refer to the figure as shown below_ This PC supports HDCP (High-bandwidth Digital Contents Protedion)
  • Page 23 522G_147LB1DA_,_UB 06/7/21 2:02 Page CONNECTIONS & SETUP When connecting D_sub 15pin cable 1. How to connect onnect the RGB output of the digital set-,top box to the RGB (PC/DTV) jack on the set. Connect the audio outputs of the set-top box to the AUDIO (RGB/DVI)
  • Page 24 522J-1H47LB1DA-UB 06/7/21 2:02 Page When HDM_ DVmcable connecti ng 1. How to connect Connect the DVI output of the digital set-top box to the HDMI (DVI) iack on the set. AUDIO(RGB/DVI) jack Connect the audio output of the digital set=top box to the on the set.

  • Page 25: Vcr Setup

    522J_147LB1DA_,_UB 06/7/21 2:02 Page CONNECTIONS & SETUP VCR SETUP To avoid picture noise (interference), leave an adequate distance between the VCR and TV If a fixed image is displayed on the screen for a long time, the image may become imprinted on the screen and remain visible.
  • Page 26 922G_lH47LB1DA_,_UB 06/7/21 2:02 Page When connecting with a RCA cable 1. How to connect Connect AUDIO/VIDEO jacks between TV and VCR. Match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red) 2. How to use insert a video bpe into the VCR and press PLAY on the...

  • Page 27: Av Out Setup

    522J-1H47LB1DA-UB 06/7/21 2:02 Page CONNECTIONS & SETUP AM OUT SETUP The TV has a special signal output capability which allows you to hook up the second TV or monitor. 1. How to connect Connect the second TV or monitor to the TV's AV OUT ]acEs.

  • Page 28: Digital Audio Output

    522J-1H47LB1DA-UB 06/7/21 2:02 Page DIGITAL AUDIO OUTPUT Send the TV% audio to external audio equipment via the Digital Audio Output (Optical) port. 1. How to connect Connect one end of an optical cable to the TV Digital Audio (Optical) Output port. Connect the other end of the optical...

  • Page 29: External A/V Source Setup

    522J_147LB1DA_,_UB 06/7/21 2:02 Page CONNECTIONS & SETUP EXTERNAL _V SOURCE SETUP 1. Howto connect Video Game Set Connect AUDIO/VIDEO jacks between TV and external equipment. Match the iack colors. (Video _ yellow, Audio Left - white, and Audio Right = red) 2.

  • Page 30: Dvd Setup

    522G_lH47LB1DA_,_UB 06/7/21 2:02 Page DVD SETUP When connecting Component cabie 1. How to connect Connect the video outputs (Y, PB, PR) of the DVD to the COMPONENT IN VIDEO1 jacks on the set. Match the _ack colors (Y = green_ PB = blue, and PR = red). Connect the audio outputs of the DVD to the COMPONENT IN AUDIO1...
  • Page 31 522J_147LB1DA_,_UB 06/7/21 2:02 Page CONNECTIONS & SETUP When connecting with an S-Video cable 1. How to conne_ onnect the S-VIDEO output of the DVD to the S-VIDEO input on the set. Connect the audio outputs of the DVD to the AU DIO input jacks on the set 2.

  • Page 32: Pc Setup

    522J_147LB1DA_,_UB 06/7/21 2:02 Page PC SETUP This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the 1-V's settings. The TV perceives 640x480, 60Hz as DTV 480p based on the PC graphic card. If necessary, change the screen scanning rate for the graphic card accordingly.
  • Page 33 522J-1H47LB1DA-UB 06/7/21 2:02 Page CONNECTIONS & SETUP When connecting HDMI to Dr[ cable 1. How to connect onnect the DVI output of the PC to the HDMI 1 (DVI) jack on the set Connect the PC audio output to the AUDIO (RGB/DVI) iack on the set 2.
  • Page 34 512J 4?LB]DA_UB 06/8/23 10:19 Page ,.,4 Supported Display Spedfications (RGB/HDMI-PC) Supported Display Specifications (RGB/HDMI-DTV) f_°C--I_m } 31.468 70.09 ................... 31.4731.47 59.9460 31.469 70_08 45.00 60.00 3'I ,469 59_94 44,96 59,94 3Z861 72.80 3Z500 75.00 33.75 60_00 33.72 59.94 5.1563Z879 _"_" _"" -" _ "'_ _46.87548_0773 75.0072.
  • Page 35 522J_147LB1DA_,_UB 06/7/21 2:02 Page CONNECTIONS & SETUP e ® ® Screen Setup PC mode When RGB connect to PC output and select the RGB-PC in Main Input, this function is used. When HDMI IN 1 (DVl) connect to PC output and select HDMI 1/DVI input, this function is used.

  • Page 36: Turning The Tv On

    522J-1H47LB1DA-UB 06/7/21 2:02 Page BASIC OPERATION TURNING THE TV ON First, connect power cord correctly. At this moment, the TV switches to standby mode. In standby mode, press the (b/I, INPUT, CH (A or button on the TV or press the POWEK INPUT, TV INPUT, CH(+ or-), Number (0~9) button on the remote control.

  • Page 37: On-Screen Menus Language Selection

    522J-1H47LB1DA-UB 06/7/21 2:02 Page BASIC OPERATION ON-SCREEN MENUS LANGUAGE SELECTION The menus can be shown on the screen in the selected language. First select your language. ress the MENU button and then use A or Y but* ton to select the OPTION menu.

  • Page 38: Initial Channel Search(Ez Scan)

    522J-1H47LB1DA-UB 06/7/21 2:02 Page INITIAL CHANNEL SEARCH(EZ SCAN) This feature automatically finds all channels available through antenna or cable input and stores them in memory on the channel list. Run EZ Scan again after any Antenna!Cable connection changes. Note: A password is required to gain access to EZ Scan menu if the Lock System is turned...

  • Page 39: Channel Selection

    522J-1H47LB1DA-UB 06/7/21 2:02 Page BASIC OPERATION CHANNEL SELECTION Press the CH +/_ or NUMBERbuttons to select a channel number_ VOLUME ADJUSTMENT Adjust the volume to suit your personal preference. Press the VOL +/_ button to adjust the volume. If you want to switch the sound off, press the MUTE button.

  • Page 40: Tv Guide On Screen Setup

    522J_147LB1DA_,_UB 06/7/21 2:02 Page TV GUIDE ON SCR SYSTEM TV GUIDE ON SCREEN:SETUP The TV Guide On Screen system uses Setup information to provide with show listings lineups in your area--which are updated several times a day. Once you set up the TV according to manufacturer's instructions, you are ready to set up the TV Guide On...

  • Page 41: Using Tv Guide

    522J_147LB1DA_,_UB 06/7/21 2:02 Page TV GUIDE ON SCREEN 'M SYSTEM Using TV Guide Screen 1: Country This screen asks you the location of your TV. Use the A or Y bu_on to highlight a country. Press the ENTER button to display Screen 2. Screen 2: Enter ZIP or Postal Code Option...
  • Page 42 522J-1H47LB1DA-UB 06/7/21 2:02 Page Screen 4: Do you have an antenna connected? I{ you sebct Yes, you see Screen S. If you select No, you see Screen Screen 5: Are your basic settings correct? I{ you select Yes, you see Screen 6. If you select No, you see Screen Congratulations...

  • Page 43: Tv Guide On Screen

    522J_147LB1DA_,_UB 06/7/21 2:02 Page TV GUIDE ON SCREEN 'M SYSTEM TV GUIDE ON SCREEN FEATURE Overview Your new TV contains the TV Guide On Screen Interactive Program Guide, The TV Guide On Screen system has features that help you get the most out of your viewing experience.

  • Page 44: Screen Components

    922J_147LB1DA=,,UB 06/7/21 2:02 Page Screen Components The screens displayed in the TV Guide On Screen system share many of the same components, as shown the following figure: TV Guide Logo Video Window HigE|ight Current S_r_ice Label Service _r Time slot INFO button INFO box @ Tilo...

  • Page 45: Panel Menu

    522J_lH4?LB1DA_,_UB 06/7/21 2:02 Page TV GUIDE ON SCREEN SYSTEM Panel Menu A Panel Menu appears when the MENU button is pressed on a highlighted tile and additional options available. It also appears when you press the ENTER button on a show starting in the future.

  • Page 46: Main Services

    522J-1H47LB1DA-UB 06/7/21 2:02 Page Main Services Access Listings by pressing the TV GUIDE button on your remote or on the front panel of your Listings is always the first Service displayed in the Guide. With Listings highlighted, press the INFO button to display a Help screem Press the...
  • Page 47 522J-1H47LB1DA-UB 06/7/21 2:02 Page TV GUIDE ON SCREEN _M SYSTEM Search lets you find shows alphabetically, by category (Movies, Sports, Children, Educational, N_s0 Variety° Series, HDTV) or by Keyword. With Search highlighted, press the iN[O buffon to display a Help screen. Press the [NFO button again to close the screen.
  • Page 48 522J_147LB1DA_,_UB 06/7/21 2:02 Page Use the Y button to highlight a subcategory (for example, Press the ENTER button to display a list of all Movies, orga- nized by date and time, Highlight a show and press the ENT£R button to watch on now) or the MENU button to displ:ay the Episode Options...
  • Page 49 922J_147LB1DA_,_UB 06/7/21 2:02 Page TV GUIDE ON SCREEN SYSTEM Key_word Search Keyword search lets you enter a word(s) to look for a particular sho_ by category or for every show title that matches. Highlight the Keyword navigation tabel, and press the ENTER button to display the Keyword Search menu, Highlight New Search, and press the ENTER...
  • Page 50 922J_147LB1DA_,_UB 06/7/21 2:02 Page A list of all matching shows for that keyword is displayed, You can highlight a show, and press the ENTER button to display all airings_ You can then highlight a specific listing and press the ENTER button to watch (if On now) or the MENU button to display the Episode Options menu.
  • Page 51 522J_147LB1DA_,_UB 06/7/21 2:02 Page TV GUIDE ON SCREEN SYSTEM Schedule lets you review, edit, or delete Remind events that you set previously. See page SS for information on how to set a reminder. With Schedule highlighted, press the INFO button to display a Help screen.
  • Page 52 922J_147LB1DA_,_UB 06/7/21 2:02 Page A_er you initially complete Guide Setup, you can make changes to Guide settings in the following areas: Change System Settings Change Channel Display i Change Default Options Highlight a choice_ press the ENTER button_ and follow on-screen instructions.
  • Page 53 922J_147LB1DA_,_UB 06/7/21 2:02 Page TV GUIDE ON SCREEN 'M SYSTEM Change Channel Display Change Channel Display lets you edit channel information that appears in Listings. With Change Channel Display you Re-order the position of the channel in Listings. Change the tune channel number. Switch a channel: On - The channel is always displayed.
  • Page 54 922J_147LB1DA_,_UB 06/7/21 2:02 Page Change Default Options Change Default Options lets you change default settings in the following categories: General Defaults Lu_u_ Record Defaults i_ Remind Defaults Highlight Change Default Options, and press the ENTER button. General Defaults Genera[ Defaults lets you set defauffs for the following: i The initial...
  • Page 55 522G_147LB1DA_,_UB 06/7/21 2:02 Page TV GUIDE ON SCREEN 'M SYSTEM Record Defaults This TV doesn't support recording feature. Remind Defaults Remind Defaults lets you set defaults for the following: Power On the TV, if Off, when a Reminder is scheduled. Choices are Yes and No.

  • Page 56: Remind Features

    522J_147LB1DA_,_UB 06/7/21 2:02 Page Remind Features You can set a show Reminder in Listings, Search, and Schedule or change Reminder settings for a show in Schedule. There are 2 ways to set a show Reminder: From a Panel Menu Highlight a show, and press the MEN U button to display the Episode Options menu.
  • Page 57 522J_147LB1DA_,_UB 06/7/21 2:02 Page TV GUIDE ON SCREEN SYSTEM Manual Reminder ighlight the Schedule Service label, and press the MENU button to display the Schedule Options menu, Highlight New Manual Reminder and press the ENTER button to display the Remind Options menu.
  • Page 58 522J-1H47LB1DA-UB 06/7/21 2:02 Page Remind Alerts Based on your option settings, a notification screen will appear, if your TV is On at the reminder time. Then you can choose to hide the reminder, or highlight the show, and press the ENTER button to tune to the show.

  • Page 59: Pip/Pop/Twin Picture

    SPECIAL FUNCTIONS PiP /POP /Twin Picture PIP lets you view 2 different inputs (sources) on your TV screen at the same time. One source will be large, and the other source will show a smaller inset image. Twin Picture mode splits the screen into two images, allowing two picture...

  • Page 60: Selecting An Input Signal Source For Pip/Twin Picture

    Selecting an Input Signal Source for PIP/Twin Picture Use the PIP INPUT button to select the input source for the sub picture. Each press of PIP INPUT button changes the PIP source. You can also select sources for the Sub Input in the SETUP menu. Analog (TV/CATV), AV1, and AV2 DTV/CADTV, Analog(TV/CATV),...

  • Page 61: Swapping Pip/Twin Picture

    SPECIALFUNCTIONS P[P / POP / Twin Picture Swapping the PIP/Twin Picture Repeatedly, use the SWAP button to switch the main and sub pictures, u Component 1, Component 2, RGBoPC (or RGB_DTV), HDMI1/DVI, HDMI2 input sources for the main picture can't be used to swap the main and sub pictures.

  • Page 62: Pop (Picture-Out-Of-Picture: Channel Scan)

    POP (Picture-out-of-Picture : Channel Scan) Use POP to search the programs of all the memorized channels one-by-one on the 3 PIP screen display, (while the main picture source remains the current channel). The pictures of all the programmed channels are searched with the 3 POP screens.

  • Page 63: On Screen Menus Selection And Adjustment

    TV MENU ON SCREENMENUS SELECTION AND AD]USTMENT Your TV's OSD (On Screen Display) may differ slightly from what is shown in this manuaL Press the MENU button and then use A or V button to select the each menu. Press the _ button and then use A Y 4 _...

  • Page 64: Setup(Channel)

    TV MENU [ SETUP(Channel) AUTO CHANNEL SEARCH (EZ SCAN) ® Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the channel list. Run EZ Scan again after any Antenna/Cable connection changes. A password is required to gain access to EZ Scan menu the Lock System is turned...

  • Page 65: Manual Channel Search(Manual Scan)

    TV MENU SETUP(Channel) MANUAL CHANNEL SEARCH(MANUAL SCAN) A password is required to gain access to Manual Scan menu if the Lock System is turned on. While using the CabIeCARD rM,CATV_ CADTV is not work- ing in Manual Scan. button ress the MENU button and then use A or Y...

  • Page 66: Channel Edit

    CHANNEL EDIT From the default channel list created from the EZ Scan channel search, you can create different types of channel lists in memory: '_custom list" and "favorite channel list" A custom list can be created by toggling each channel on or off with ENTER button_...

  • Page 67: Dtv Signal Strength

    TV MENU SETUP(Channel) DTV SIGNAL STRENGTH This feature displays the DTV signal levels being received and indicates whether you need to adjust your antenna or digitaJ cable input. The higher the signal strength, the less likely you are to experience picture degradation.

  • Page 68: Main Picture Source Selection

    MAIN PICTURE SOURCE SELECTION Changes the picture source so you can watch your off-air TV, cable TV, VCR, DVD, or any other devices that are corn nected to your Press the MENU button and then use A or Y button to select the SETUP menu.

  • Page 69: Input Label

    TV MENU SETUP(Channel) INPUT LABEL ® DAY _ D@Y_ Sets a label to each input source which is not in use when you press the INPUT button. Press the MENU button and then use & or Y but- SETUP ton to select the menu.

  • Page 70: Auto Picture Control (Ez Picture)

    TV MENU I VIDEO ADJUSTMENT AUTO PICTURE CONTROL (EZ PICTURE) EZ Picture adjusts the TV for the best picture appearance. Select the preset value in the EZ Picture menu based on the program category. Daylight Nomal, Night Time Settings are preset for optimum picture quality at the factory...

  • Page 71: Adaptive Picture Mode (Apm)

    TV MENU VIDEO ADJUSTMENT ADAPTIVE PICTURE MODE (APM) Allows you to select your preferred picture mode after comparing the four different picture (Daylight, Normal, Night Time, Userl (or User2)) settings. Press the APM button at once. As shown below_the screen is divided to 4-split.

  • Page 72: Manual Picture Control

    MANUAL PICTURE CONTROL (EZ Picture-User option) Adjust the picture appearance to suit your preference viewing situations, Press the MENU button and then use A or Y button to select the VIDEO menu. Press the _ button and then use A or Y button to select EZ Picture.

  • Page 73: Color Temperaturecontrol

    TV MENU VIDEO ADJUSTMENT COLOR TEMPERATURECONTROL Auto Color Temperature Control Choose one of three automatic color adjustments. Set to warm to enhance hotter colors such as red, or set to cool to see less intense colors with more blue. Press the MENU button and then use A or Y button to select the VI DEO menu.

  • Page 74: Manual Color Temperature Control

    Manual Color Temperature Control You can also adjust the detailed settings(Red, Green, Blue) by selecting the User menu_ Press the MENU button and then use A or T button to select the VIDEO menu, Press the _ buffoon and then use A or Y button to select Color Temperature, Press the _ button and then use A or T button to...
  • Page 75 TV MENU VIDEO ADJUSTMENT XD is LG Electronic's unique picture improving technology to display a real HD source through an advanced digital signal processing algorithm. When selecting EZ Picture options (Daylight, Normal and Night time), XD is automatically changed to Auto.

  • Page 76: Advanced

    ADVANCED-CINEMA 3:2 MODE SETUP Set up the TV for the best picture appearance for viewing movies. When you operate Cinema 3:2 Mode (3:2 PuiloD_n Mode or Cinema Correction Mode), the TV will adjust 24 fps video from movies to 30 fps video for display. This feature operates only in Analog, AV1, AV2, and Component 480i mode.

  • Page 77: Black Level

    TV MENU WDEO ADJUSTMENT ADVANCED°BLACK LEVEL Adjusting the contrast and the brightness of the screen using the black level of the screens This feature operates only in AV1, AV2, HDMI1/DVl, HDMi2mode. MENU button Press the and then use A or V button VIDEO to select menu.

  • Page 78: Video Reset

    VIDEO RESET ® Use to quickly reset aH the Video menu options to their original factory preset values. Press the MENU button and then use A or Y button to select the VIDEO menu. ress the _ button and then use A or Y button to select Video Reset Press the _ button to reset the Video menu options to original values.

  • Page 79: Audio Language

    TV MENU AUDIO ADJUSTMENT AUDIO NGUAGE Other languages may be available if a digital signal is pro- vided by the broadcasting station. This feature operates only in DTV/CADTV mode. ress the MENU button and then use A or Y button AUDIO to select the menu.

  • Page 80: Auto Volume Leveler (Ez Soundrite)

    AUTO VOLUME LEVELER(EZ SOUNDRITE ) Scans for changes in sound levels during commercials, then adjusts the sound to match the specified audio level+ SoundRite makes sure that the volume levem remains con- sistent whether you are watching a commercial or a regular TV program.

  • Page 81: Auto Sound Control (Ez Sound)

    TV MENU AUDIO ADJUSTMENT AUTO SOUND CONTROL (EZ SOUND) EZ Sound lets you enjoy the best sound without any special adjustment because the TV sets the appropriate sound options based on the program content. Normal, Stadium, News, Music and Theater are preset for good sound quality at the factory...

  • Page 82: Manual Sound Control

    MANUAL SOUND CONTROL (EZ SOUND-User option) DAy _ Adjust the sound to suit your taste and room situations. ress the MENU button and then use A or Y button to select the AUDIO menu. Press the _ button and then use A or Y button to setect EZ Sound.
  • Page 83 TV MENU AUDIO ADJUSTMENT MANUAL SOUND CONTROL Press the _ button and then use 4 or i_ button make appropriate adjustments. <: Press EXIT button to return to TV viewing or press MENU button to return to the previous menu. SRS TruSurround ©...

  • Page 84: Balance

    BALANCE Adjust the left/right sound of speaker to suit your taste and room situations. Press the MENU button and then use A or Y button to select the AUDIO menu. Press the _ button and then use & or Y button to select Balance.

  • Page 85: Tv Speakerson/Off Setup

    TV MENU AUDIO ADJUSTMENT TV SPEAKERSON/OFF SETUP ®' ® Turn the TV speakers off if using external audio equipment. Feature turns the TV Speakers option On or Off. Press the MENU button and then use A or V button to select the AUDIO menu.

  • Page 86: Bbe

    BBE High Definition Sound restores clarity for better speech intelligibility and musical realism. Press the MENU button and then use A or Y button to select the AUDIO menu. Press the _ button and then use A or Y button to select BBE Press the 1_ button and then use A or Y button to select On or Off.

  • Page 87: Stereo/Sap Broadcasts Setup

    TV MENU AUDIO ADJUSTMENT STEREO/SAP BROADCAST SETUP This TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accompanies the stereo pro- gram if the station transmits an additional sound signal as well as the original one and when you select Stereo or SAP on the...

  • Page 88: Auto Clock Setup

    TV MENU TiME SETTING AUTO CLOCK SETUP The time is set automatically from a digital channel signal. The digital channel signal includes information for the cur- rent time provided by the broadcasting station. Set the clock manually if the current time is set incorrectly By the auto clock function.

  • Page 89: Manual Clock Setup

    TV MENU TIME SETTING MANUAL CLOCK SETUP If the current time setting is wrong, reset the clock manually. When set up the TV Guide On Screen system, the Manual Clock menu is not available. MENU button and Press the then use A or V button to select the TIME...

  • Page 90: On/Off Timer Setup

    ON/OFF TIMER SETUP The. timer function operates only if the current time been set. The Off-Timer function overrides the On-Timer function they are both set to the same time. The TV must be in standby mode for the On-Timer work. If you do not press any button...

  • Page 91: Sleeptimer

    TV MENU TIME SETTING SLEEPTIMER The Sleep Timer turns the -IV off at the preset time. Note that this setting is cleared when the TV is turned off. Press the TIMER button repeatedly to select the number of minutes. First the Off option appears on the screen, followed by the following sleep timer options : 10, 20, 30, 60, 90, 120, 180, and 240 minutes.

  • Page 92: Auto Off 9]

    AUTO OFF If set to on and there is no input signal, the TV turns off automatically after 10 minutes. Press the MENU button and then use & or Y button TIME to select menu. Press the I_ button and then use & or Y button to select Auto Off.

  • Page 93: Aspect Ratio Control

    TV MENU I OPTIONAL FEATURES ASPECT RATIO CONTROL This feature lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on ),our TV. When you receive an analog picture with a 4:3 aspect ratio on your 16:9 TV, you need to specify h_ the picture is to be displayed.
  • Page 94 16:9 Zoom Adjust the picture horizontally, in a linear pro- Choose Zoom 2 when you want the picture be altered, both vertically extended portion to fill the entire screen. cropped. The picture taking a halfway trade off between alteration and screen coverage. Horizon The screen size is, more enlarged at both...

  • Page 95: Caption/Text

    TV MENU OPTIONAL FEATURES CAPTION / TEXT Analog Broadcasting System Captions Select a caption mode for displaying captioning information if provided on a program. Analog caption displays information at any position on the screen ® ® and is usually the program's dialog.
  • Page 96 Digital Broadcasting System Captions Choose the language you want the DTV/CADTV Captions appear Languages can be chosen for digital sources only if they included on the program. ress the MENU button and then use & or Y button to select the OPTION menu.

  • Page 97: Caption Option

    TV MENU OPTIONAL FEATURES CAPTION OPTION Customize the DTV/CADTV captions that appear on your screen. Press the MENU button and then use A or Y button to select the OPTION menu. Press the 11_button and then use _k or Y button to select Caption Option.

  • Page 98: Brief Info

    BRIEF[NFO. What is Brief Info.? : Brief Info shows the present screen information. : On Watching with the upper input signal, press the [NFO button. How To Use? ]. Press the INFO button to show the Brief Info on the screen. 2.

  • Page 99: Lock Adjustment

    TV MENU LOCK ADJUSTMENT Parental Control can be used to block specific channels, ratings and other viewing sources. The Parental Control Function (%Chip) is used to block program viewing based on the ratings sent by the broadcasting s_tion. The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the type of the program and the categories.

  • Page 100: Lock System

    LOCK SYSTEM Enables or disables the blocking scheme you set up previously. After inputting the password, use the A or Y button to choose Lock System. Press the _ button and then use the & or T burn to select On or Off. iiiiiiii When you select On, the Lock System is enable.

  • Page 101: Block Channel

    TV MENU LOCK ADJUSTMENT BLOCK CHANNEL Blocks any channels that you do not want to watch or that you do not want your children to watch. After inputting the password,use the A or Y button to choose Block Channel. screen Press the _ button.

  • Page 102: Movie Rating (Mpaa)- For Usa Only

    MOVIE RATING (MPAA)-for only Blocks movies according to the movie ratings limits speci- fied, so children cannot view certain movies. You can set the ratings limit by blocking out all the movies with ratings above a specified level Keep in mind that movie ratings limit only applies to movies shown on TV,...

  • Page 103: Tv Rating Children- For Usa Only

    TV MENU LOCK ADJUSTMENT TV TING CHILDREN° forUSA o n!y Prevents children from watching certain children's TV programs, according the ratings limit set. The children rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audiences in the TV...

  • Page 104: Tv Rating English- For

    TV RATING ENGLISH forCANADA only Selecting canadian english language rating system. After inputting the password, use the A or V button choose TV Rating-English. Press the 1_ button and then use the A or V button G, PG, 1 4+, 1 B+, or Blocking Off.

  • Page 105: Input Block

    TV MENU LOCK ADJUSTMENT INPUT BLOCK Enables you to select a source to block from the external source devices you have hooked up. After inputting the password, use the & or Y button Input Block. to choose Press the _ button and then use the @ or 1_ button to select a source, Press the _ button and then use the A or Y button to select On or Off on the each source,...

  • Page 106: Cable Menu Options

    TV MENU FUNCTION CabmeCARD tn :thismanual the OSD (0_ Screen Disph:_y) m_y b_._ d _)%_r_:n_ from your TV_sh_::c_:_use it is j_st _zy_mpk_ to hdp _he TVoperation, CABLE MENU OPTIONS The Cable sub menu displays when inserting CabIeCARD_Mto the TV. The CableCARD type is Motorola, Scientific Atlanta (SA), or SCM etc, The OSD (On screen display) is different...

  • Page 107: Scrambled Channel

    TV MENU CabieCARD FUNCTION SCRAMBLED CHANNEL Insert the CabIeCARD _M,It takes about 1 minute to exchange data between the TV and the CableCARD _M. The screen displays information as shown to the right. your provider cable TV service know the CableCARD 1M ID and Host ID, @@DO if your cable TV service provider registers the...

  • Page 108: Cable Channel List

    CABLE CHANNEL LIST If you select Channel Edit after running the EZ Scan without a CableCARD _, the cable channel list dis- plays, as in the picture below. insert the CableCARD% After a few minutes(about 2~3 minutes)_ the TV receives a new cable channel list.

  • Page 109: External Control Device Setup

    APPENDIX EXTERNAL CONTROL DEVICE SETUP Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/V control system) to control the product's functions externally. Connect the serial port of the control device to the RS-232C jack on the product...
  • Page 110 RS-232C Configurations DoSub 9 D-Sub 9 D-Sub 9 D-Sub 9 Set ID Use this function to specify a TV ID number. Refer to 'Real Data Mapping t ', _ p,1 1 1. Press the MENU button and then use A or Y button to select the SETUP menu.
  • Page 111 Command Reference List 0 ~ 1 _4, PIP/+ 0,1,2,5 0 ~ 9 15. PIP Position Input Select 0 _ 64 (D ,, p.]]l) 16, Treble 0 - 64 0 - 1 1Z B,_s _c_een Mu_:e 0 ~ 64 18, Balance Mut_ 06.
  • Page 112 01. Power (Command2:a) To control Power On/Off of the TV, Volume Control (Command2: D T_._,smJ_io_ [q [4 [ ] [S_tID][ ] [Data][C d To adiust volume, Data 0 : Power Off Data I : Power On You can also adjust volume with the volume buttons on remote control Ack_uwJedg¢.m_ ]a] [][Set]D] [ ] [OK/NG] [Data] [x]...
  • Page 113 i O. Tint (Command2:j) 1 5. PIP Position (Command2:q) To adjust the screen tint. To select sub picture position for PIR You can also adjust tint in the Video menu, rr_mSrctissiO:_ [ _] [q] [ ] [Set K)] [ ] {Data] [Cr] Data 0: Right down on screen Data Red : 0 ~ Green : 64 Data 1 : Left down on screen...
  • Page 114 21.Green a djustment(Command:w) 24. Channel Tunin 8 (Command: m a) To adiust green in color temperature. To tune channel to following physkaVmajoriminor numbe_ Data M[n:O ~ Max:C8 *Refer to "Real data 2" asshown beb_ mapping Da'N O: Ph_ica[ Channe[ Number(]iansmit by Hexadedma[ acb_wbage_cnt Iwll[ ] [Set [D] [ ][OK!NG] [DataJ N...
  • Page 115 DataS: All data are transmitted by Hexadecimal code T_._s_iss_o,, [m][b]/ ] Is_t [D]/ ] [Data] [ Crl lwoiOne part Channel: Data 0: Channel Delete Data 1 : Channel This bit is used in a cable-ready system. A_Mii_,k*d#e_&#_ [b] [ ] [S&t ID]I[ ] [OK/NG] [Data1[×] Using physical channek...
  • Page 116 IR CODES 1. How to Connect w_u_ Connect your wired remote control to the Remote Control port on the TV. 2. Remote Co_roi IR Codes ,,,,_ Output waveform Single pulse, modulated with 37917KHz signal at 455KHz Carrier frequency FCAR _ I/TC _ fOSC!]2 Duty ratio _ T]/TC _ I/3...
  • Page 117 COMPONENT 1 Discrete iR Code TV [NPU1° Remote control Button INPUT Remote control Button (Component1 Input Selection) TIMER Remote controi Button RGB,_PC Discrete IR Code ]0?19 Number Key 0.9 Remote control Button (RGB-PC Input Selection) - (Dash) Remote contml Button FLASHBK Remote Control Button (RGB-UTV Input Selection)

  • Page 118: Programming The Remote Control

    PROGRAMMING THE REMOTE CONTROL The provided universal remote control can be programmed to operate most remote-controllable devices. Note that the remote may not control all models of other brands. Programming a code into a remote mode To find out whether your remote control can operate each device without programming, turn on the device (such as a VCR) and press the corresponding mode button on the remote.

  • Page 119: Programming Codes

    PROG MMING CODES VCRs AtWA M AGNAVOX AKAI 125 146 AMPRO MARANTZ ANAM O31 033 MARTA SANSUI AUDI_DY MATSUt P;ROKSONIC O3S 037 MFMOREX O10 O14 031 SCOTT O17 037 CAPEHART CP,.A_G 04.0 CURTIS MATHFS 04,5 MINOITA 04,9 SHARP O7;1 054 DAYTRON SONY 007;...
  • Page 120 0o5ooG DENON 0t4, SAMSUNG oo5 006 oos o17 HARMAN KARDON PANASONIC THOMPSON 019 oos 010 0'16 025 PIONEER YAMAHA 009 018 0100_602s ..024 PRoscAN oos 006 I"I'1...

  • Page 121: Troubleshooting Checklist

    TROUBLESHOOTING CHECKLIST iiiiiii Check to see if there is any object between the product and the remote control causing obstruction. Ensure you are pointing the remote control directly at the TV. "_Ensure that the batteries are installed with correct polari_ (+ to +, - to -).
  • Page 122 Press the VOL or VOLUME button. ,,,i S ound muted? Press MUTE button. Try another channel. The problem may be with the broadcast. Are the audio cables installed properly? Adjust Balance in menu option. iiiiiiiiiiiiiiiiiiiiiiiiiiii_iiii!iiiiiii!i!iliiiiiiiiiiii%iiii!_i!!i!i!iiiii ii i!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_!ii!i_!_!!!_!_!_!!!_!!_!_!_!!_!i!_!!!i!i_!_!!_i_i_i_ii_ii_iiii_iiiii!i_iiiiiiiiiii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i_ ,,_J A change n arab ent humi,d_ or temperature may resut n an unusua nose "...
  • Page 123 You can correct them using Change Channel Display under the Setup menu. Listings usually appear within 24 hours after a successful Setup_ it may take up to a week to fill the Listings grid with the full 8 days of listings. If you see a Listings grid with the message "No Listings"...

  • Page 124: Maintenance

    MAINTENANCE Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can enjoy your Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning. Cleaning the Screen Here's a great way to keep the dust off your screen for a while.

  • Page 125: Product Specifications

    PRODUCT SPECIFICATIONS 50.4 x 32.6 × 12.4 inches 1280.0 x 828.0 x 315.0 mm 50.4 x 28.3 x 5.3 inches 1280.0 x 7!9.0 × 135+0 mm i24.6 pounds/56.5 98.9 pounds / 44,9 kg ACI00._240V ~ 50/60Hz N] SGM, A1SC. 64 & 256 QAM VHF2_.I3, UHF 14._69, CbCTV 1135, D'W 2_.69, CAD'I"V] ._135 75 ohm 32 ~ 104°F(0 ~ 40"C)

Table of Contents
