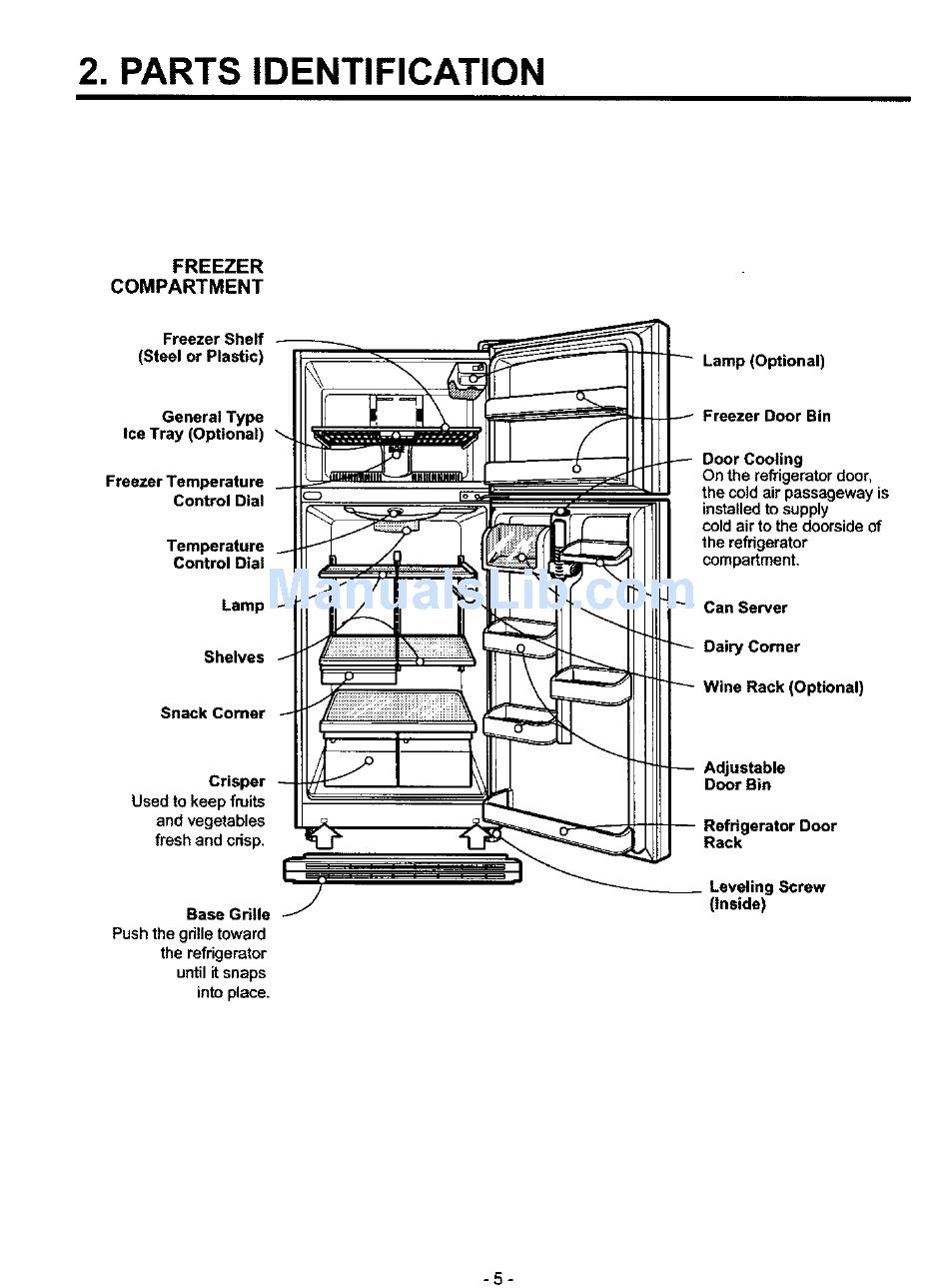

2. PARTS IDENTIFICATION
FREEZER
COMPARTMENT
Freezer Shelf
(Steel or Plastic)
General Type
ice Tray (Optional)
Freezer Temperature
Control Dial
Temperature
Control Dial
Lamp
Shelves
Snack Comer
Crisper
Used to keep fruits
and vegetables
fresh and crisp.
Base Grille
Push the grille toward
the refrigerator
until it snaps
into place.
Lamp (Optional)
Freezer Door Bin
Door Cooling
On the refrigerator door,
the cold air passageway is
installedto supply
cold air to the doorside of
the refrigerator
compartment.
Can Server
Dairy Comer
Wine Rack (Optional)
Adjustable
Door Bin
Refdgerator Door
Rack
g Screw
(inside)
-5-
