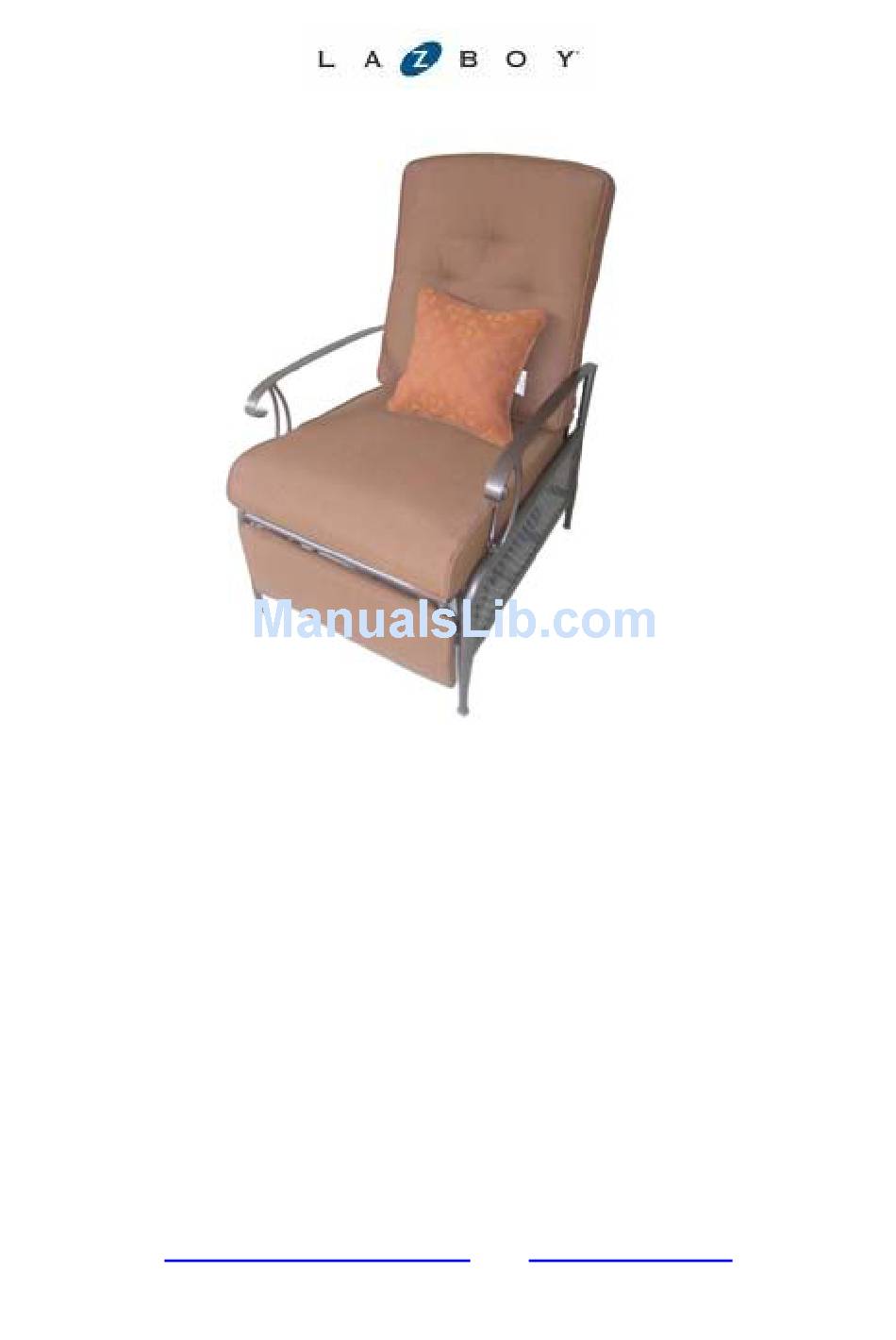

OWNER'S MANUAL

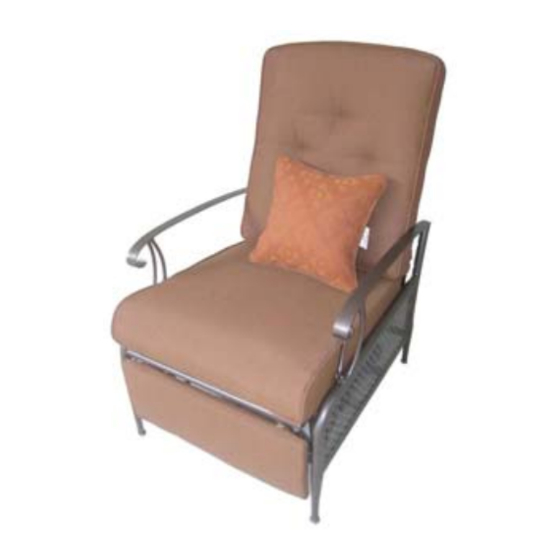

Kmart Riley Recliner
Product Code: 780-02673079-6
UPC Code: 7-22938-07949-0
Date of Purchase: __ / __ / __
If you have any problems with this product, DO NOT RETURN IT TO THE STORE.
CALL OUR CUSTOMER SERVICE HOT-LINE AT
866-851-2393
8am-5pm (EST), Monday-Friday.
View the expanded assortment of outdoor living product on-line at
WWW.lazboyoutdoor.com
and
WWW.kmart.com
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for LAZBOY 780-02673079-6
Summary of Contents for LAZBOY 780-02673079-6
- Page 1 OWNER’S MANUAL Kmart Riley Recliner Product Code: 780-02673079-6 UPC Code: 7-22938-07949-0 Date of Purchase: __ / __ / __ If you have any problems with this product, DO NOT RETURN IT TO THE STORE. CALL OUR CUSTOMER SERVICE HOT-LINE AT 866-851-2393 8am-5pm (EST), Monday-Friday.
- Page 2 WARRANTY This warranty is a limited warranty, and applies to the original purchase only. Proof of purchase is required. This is a residential warranty and does not apply to commercial use. This collection carries a 5 year limited warranty and is valid from original date of purchase to the original owner (proof of purchase required): NOTE: Glass breakage is not a warranted item.
- Page 3 SPECIAL WARNINGS In order to avoid damaging the item, assemble the item on a soft, non-abrasive surface, such as a carpet or cardboard. When assembling bulky or heavy items, work with an assistant. After final alignment, verify that all bolts, nuts, and nut covers are securely tightened.
- Page 4 Figure 1 Figure 2 PARTS LIST Item Part Name Part picture Seat Back Seat cushion Back cushion Toss pillow Page 4 of 6...
- Page 5 Step 1: Place the seat (A) on a flat surface. Attach the back (B) to the seat (A) as shown in figure 3, then press down the buckle. Making sure the back (B) and seat (A)are completely engaged. To make sure the back (B) is properly installed with both sets of back and body brackets engaged, stand behind the chair and pull the back...
- Page 6 Figure 5 (the closed position) Figure 6 (the 1 position) Figure 7 (the 2 position) Page 6 of 6...
