OWNER'S MANUAL

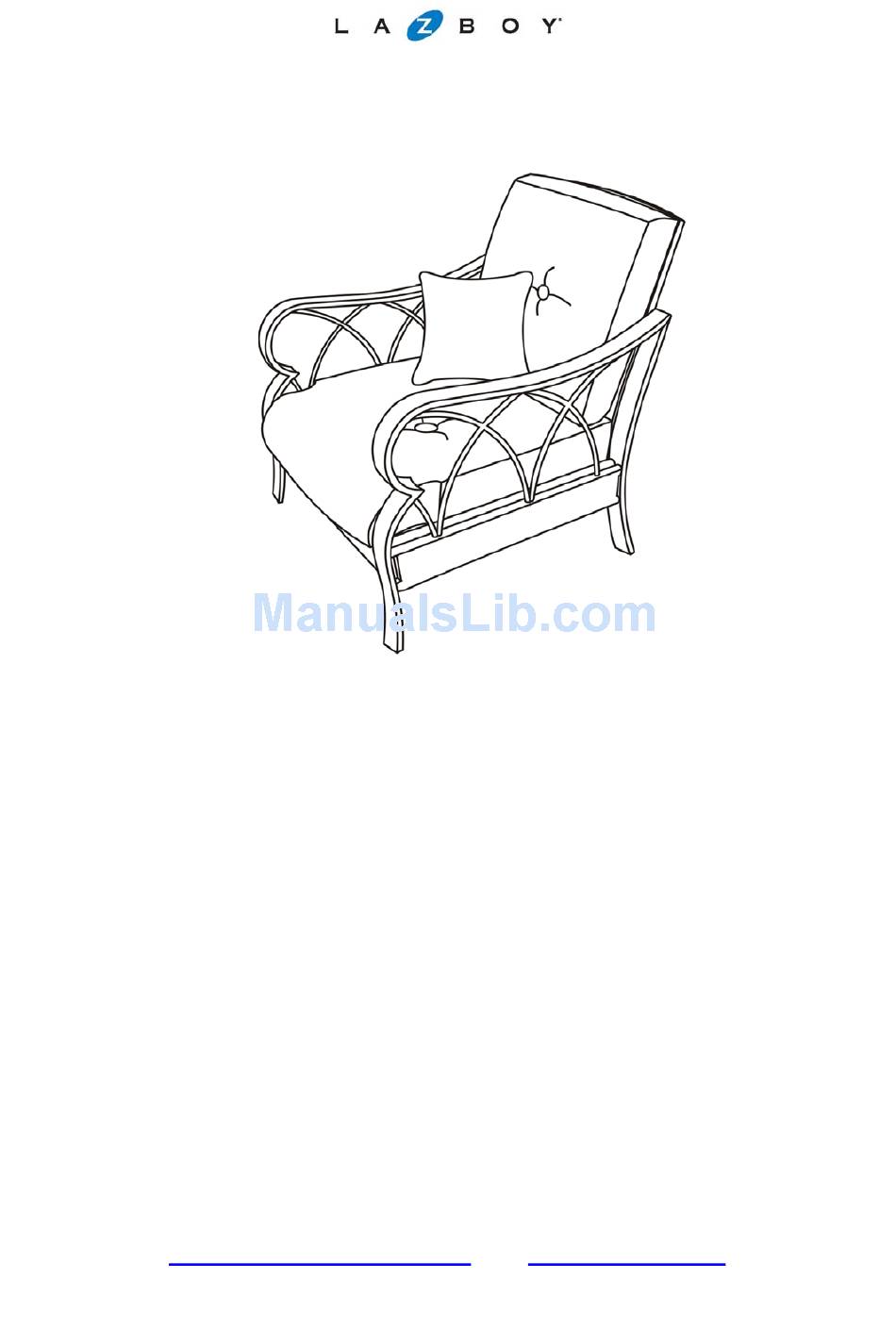

Sears Logan 4PC Seating Set
* Lounge Chair
Product Code: D71 M80920
UPC Code: 7-22938-07950-6
Date of Purchase: __ / __ / __
If you have any problems with this product, DO NOT RETURN IT TO THE STORE.
CALL OUR CUSTOMER SERVICE HOT-LINE AT
866-391-4868
8am-5pm (EST), Monday-Friday.
View the expanded assortment of outdoor living product on-line at
WWW.lazboyoutdoor.com
and
WWW.sears.com
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for LAZBOY D71 M80920
Summary of Contents for LAZBOY D71 M80920
- Page 1 OWNER’S MANUAL Sears Logan 4PC Seating Set * Lounge Chair Product Code: D71 M80920 UPC Code: 7-22938-07950-6 Date of Purchase: __ / __ / __ If you have any problems with this product, DO NOT RETURN IT TO THE STORE. CALL OUR CUSTOMER SERVICE HOT-LINE AT 866-391-4868 8am-5pm (EST), Monday-Friday.
- Page 2 W A R R A N T Y This warranty is a limited warranty, and applies to the original purchase only. Proof of purchase is required. This is a residential warranty and does not apply to commercial use. This collection carries a 5 year limited warranty and is valid from original date of purchase to the original owner (proof of purchase required): NOTE: Glass breakage is not a warranted item.
-
Page 3: Parts List
CAUTION: Read all the instruction before assembly. Failure to do so may result in faulty assembly and potential injury! Assemble the item on a soft, non-abrasive surface such as a carpet or cardboard to avoid damaging the item. Seek assistance to assemble bulky or heavy items. After final alignment, make sure all bolts, nuts and nut covers are securely tightened. - Page 4 Back Cushion Toss Pillow Assembly Steps: Step1: Attach right arm (B) to back frame (A) with M6x20mm hex head bolts (E), M6 washers (F). Repeat the same procedure on the left arm (C). Do not fully tighten at this step. (See Figure 1) Figure 1 Step2: Attach seat frame (D) to right arm (B) and left arm (C) with M6x20mm hex head bolts (E), M6 Washers (F).
- Page 5 Step 3: Tighten all bolts (E) with open wrenches (H). Do not over tighten. Cover all bolts (E) with bolts cap (G). Step4: Place seat cushion (I) and back cushion (J) and toss pillow (K) in chair as show Figure 3. Check and be sure the chair is assembled tightly and stable before you use.
