OWNER'S MANUAL

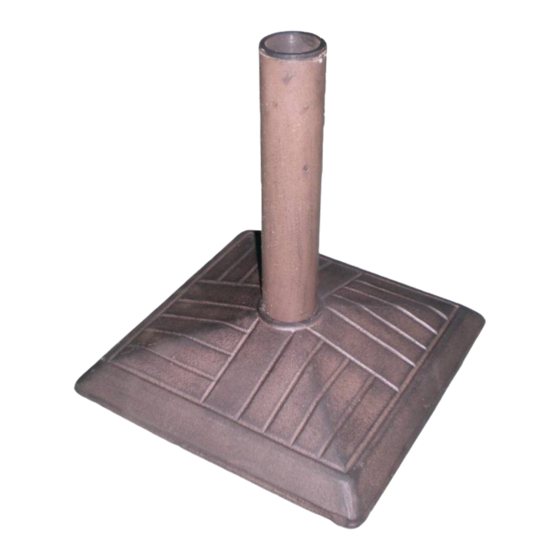

Sears Kendall Umbrella Base
Product Code: D71 M80919
UPC Code: 7-22938-07969-8
Date of Purchase: __ / __ / __
If you have any problems with this product, DO NOT RETURN IT TO THE STORE.
CALL OUR CUSTOMER SERVICE HOT-LINE AT
866-391-4868
8am-5pm (EST), Monday-Friday.
View the expanded assortment of outdoor living product on-line at
WWW.lazboyoutdoor.com
and
WWW.sears.com
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LAZBOY D71 M80919
Summary of Contents for LAZBOY D71 M80919
- Page 1 OWNER’S MANUAL Sears Kendall Umbrella Base Product Code: D71 M80919 UPC Code: 7-22938-07969-8 Date of Purchase: __ / __ / __ If you have any problems with this product, DO NOT RETURN IT TO THE STORE. CALL OUR CUSTOMER SERVICE HOT-LINE AT 866-391-4868 8am-5pm (EST), Monday-Friday.
- Page 2 WARRANTY This warranty is a limited warranty, and applies to the original purchase only. Proof of purchase is required. This is a residential warranty and does not apply to commercial use. This collection carries a 5 year limited warranty and is valid from original date of purchase to the original owner (proof of purchase required): NOTE: Glass breakage is not a warranted item.
- Page 3 SPECIAL WARNINGS In order to avoid damaging the item, please assemble the item on a soft, non-abrasive surface, such as a carpet or cardboard. When assembling bulky or heavy items, work with an assistant. After final alignment, verify that all bolts, nuts, and nut covers are securely tightened.
- Page 4 Step 1：Attach the Extension pole (B) to the umbrella base (A) by M10*35mm Hex head bolt (C) and M10 washer (D), finally tighten with open wrench (E) . See Figure 1 Figure 1 Step 2：Place the assembled umbrella base in desired location.
