MTD 12A-997A795 Operator's Manual

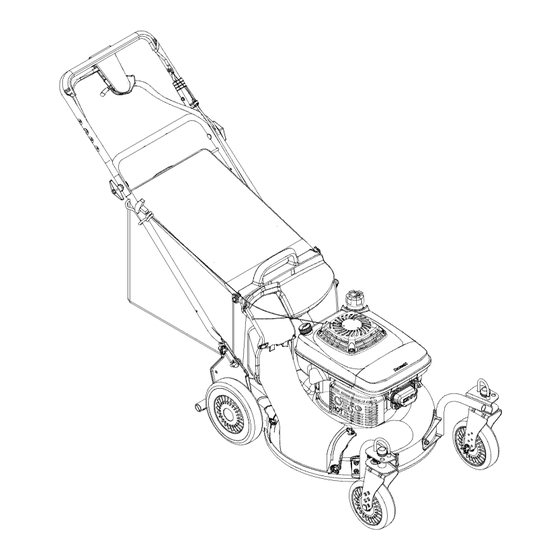

21" self-propelled mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operator's Manual
21" Self-Propelled
Mower
Model 997
IMPORTANT:
READ SAFETY
RULES AND INSTRUCTIONS
CAREFULLY
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered,
brush-covered
or grass-covered
land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state
laws (if any). If a spark arrester is used, it should be maintained
in effective working order by the operator. In the State of California
the
above is required by law (Section 4442 of the California Public Resources
Code). Other states may have similar laws. Federal laws apply
on federal lands. A spark arrester for the muffler is available through your Cub Cadet dealer or contact the service department,
P.O. Box
361131 Cleveland, Ohio 44136-0019.
MTD LLC.,P.O. Box361131,Cleveland,Ohio 44136-0019
PRINTED IN U.S.A.
Form No.769-00952
(11/2003)
