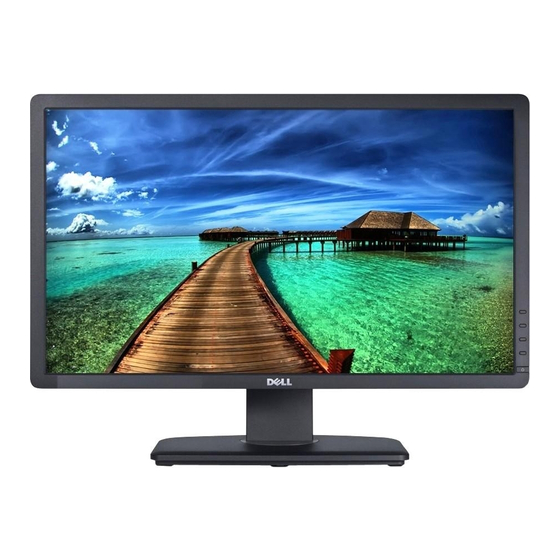

Dell U2312HM Product Dimensions
Outline dimension
Hide thumbs
Also See for U2312HM:
- Setup manual (2 pages) ,
- Setup manual (2 pages) ,
- User manual (44 pages)
Advertisement
Quick Links
U2312HM Outline Dimension
Swivel
45°
17.5 (0.69)
Swivel
45°
546.4 (21.51)
511.3 (20.13)
Pivot
90°
279.8 (11.02)
17.5 (0.69)
188.0 (7.40)
17 (0.67)
48.6 (1.92)
180.3 (7.10)
185.4 (7.30)
Z = -7 (-0.26)
Z = 0
Z = -0.6 (-0.24)
(4x)
Tilt
Lift
31.6 (1.24)
205.0 (8.07)
Unit
: mm (inch)
Dimension : Nominal
Drawing
: Not to scale
M4x10 (4x)
