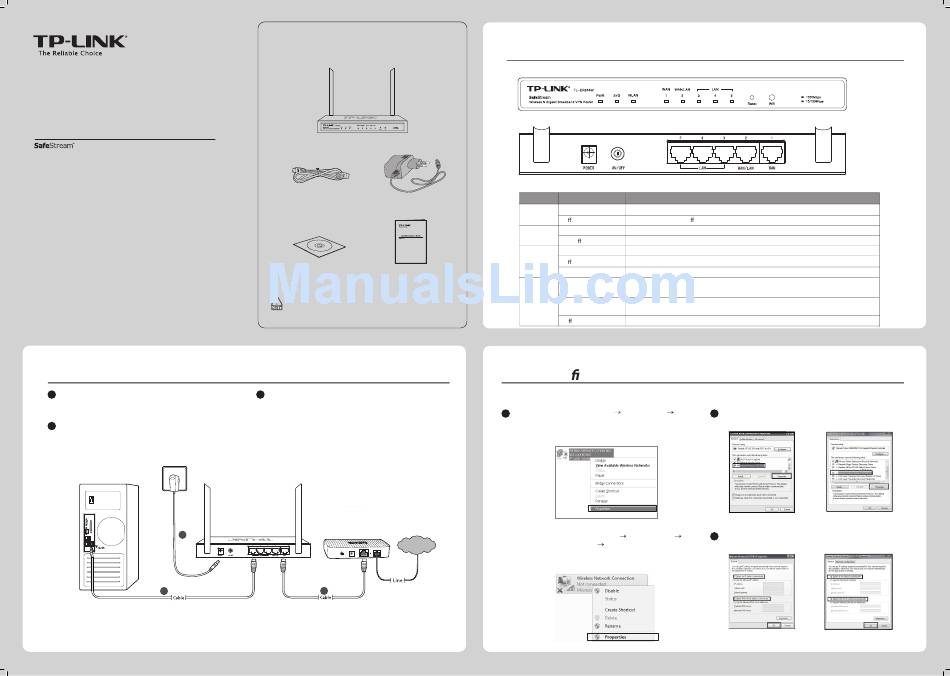

Quick Installation Guide

Wireless N Gigabit Broadband VPN Router
TL-ER604W
MODEL NO.
2

Hardware Connection

1 Connect the WAN port of the Router to the Cable or DSL
Modem via Ethernet cable. Here we take the ADSL Modem
from TP-LINK as an example.
2 Connect a LAN port of the Router to the computer by
Ethernet cable.
Wall Socket
3
2
7106504096 REV1.0.0

Package Contents

TL-ER604W
Ethernet Cable Power Cord
Wireless N Gigabit Broadband VPN Router
TL-ER604W
MODEL NO.
Resource CD QIG
The provided power cord may differ from the figure above
due to local power specifications.
3 Connect one end of the AC power cord to the AC power socket
on the Router, and the other end into an electrical outlet. The
Router will work automatically and the LED will display as the
LED Descriptions shown.
TD-8816
Internet
1
1

Physical Description

• Front Panel
• Back Panel
• LED Descriptions
Indication
Name Status
On (Green) The Router is powered on
PWR
O The Router is powered o
Flashing (Green) The Router works properly
SYS
The Router has a hardware error
On/O
On (Green) The Wireless function is enabled
WLAN
O The Wireless function is disabled
Flashing (Green) There is data being transferred through wireless
On There is a device linked to the corresponding port but not active (Green light indicates the linked
(Green/Yellow) device is running at 1000Mbps, and yellow indicates the linked device is running at 10/100Mbps.)
WAN, LAN
Flashing The corresponding port is transmitting or receiving data (Green light indicates the linked device
(Green/Yellow) is running at 1000Mbps, and yellow indicates the linked device is running at 10/100Mbps.)
O There is no device linked to the corresponding port
3
PC Con guration
Here we take Wireless Network Connection as an example. Please make sure your PC supports wireless connection. You can also go to
Local Area Connection to configure the PC for wired network connection, and then go to Step 5 to configure the router.
For Windows XP/2000 : Go to Start Control Panel Network
1
Connections. Right click Wireless Network Connection, and
select Properties.
For Windows Vista/7: Go to Start Control Panel
network status and tasks Manage network connection.
Right click Wireless Network Connection, and select
Properties.
Select "Internet Protocol (TCP/IP) "/" Internet Protocol
2 "
Version 4 (TCP/IPv4)" and click " Properties ".
For Windows XP/2000 For Windows 7/Vista
View Select "Obtain an IP address automatically " and "Obtain
3
DNS server address automatically ". Then click "OK".
For Windows XP/2000 For Windows 7/Vista
