t[]ii l!il)iii'==!iii!i! iilji
iil iiqi @ SL i!i! J C!I O@ il])L,!i!ii' @il !ill

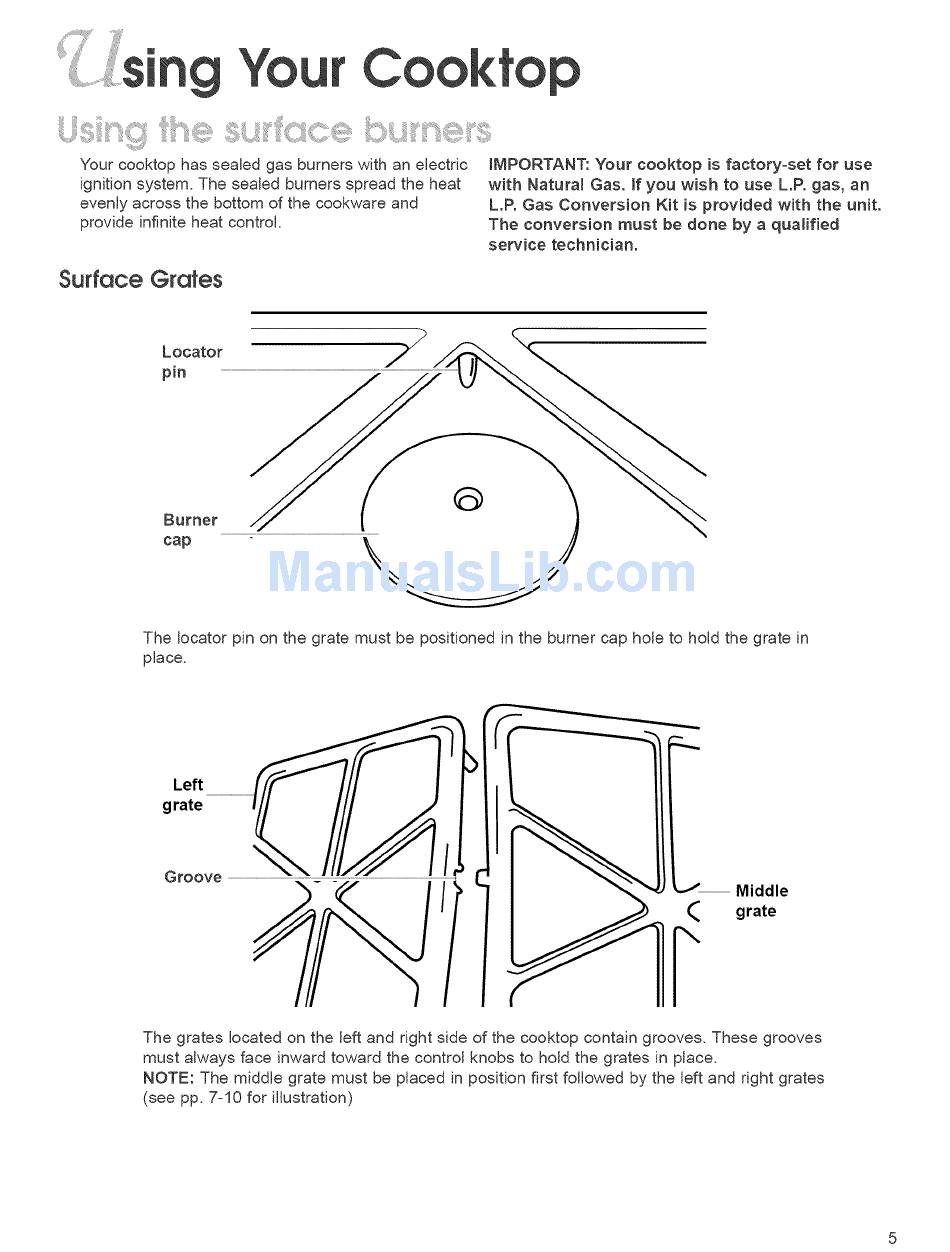

Your cooktop has seaJed gas burners with an eJectric
iMPORTANT: Your cooktop
is factory-set
for use
ignition system. The seaJed burners spread the heat
with Natural Gas. If you wish to use L.P. gas, an
evenly across the bottom of the cookware and
L.P. Gas Conversion
Kit is provided with the unit.
provide infinite heat control.
The conversion
must be done by a qualified
service
technician.
Surface
Grates
Locator
pin
The Jocator pin on the grate must be positioned in the burner cap hole to hold the grate in
place.
Left
grate
Groove
=1
Middle
(
grate
P
The grates located on the left and right side of the cooktop contain grooves. These grooves
must always face inward toward the control knobs to hold the grates in place.
NOTE: The middle grate must be placed in position first followed by the left and right grates
(see pp. 7-10 for illustration)
