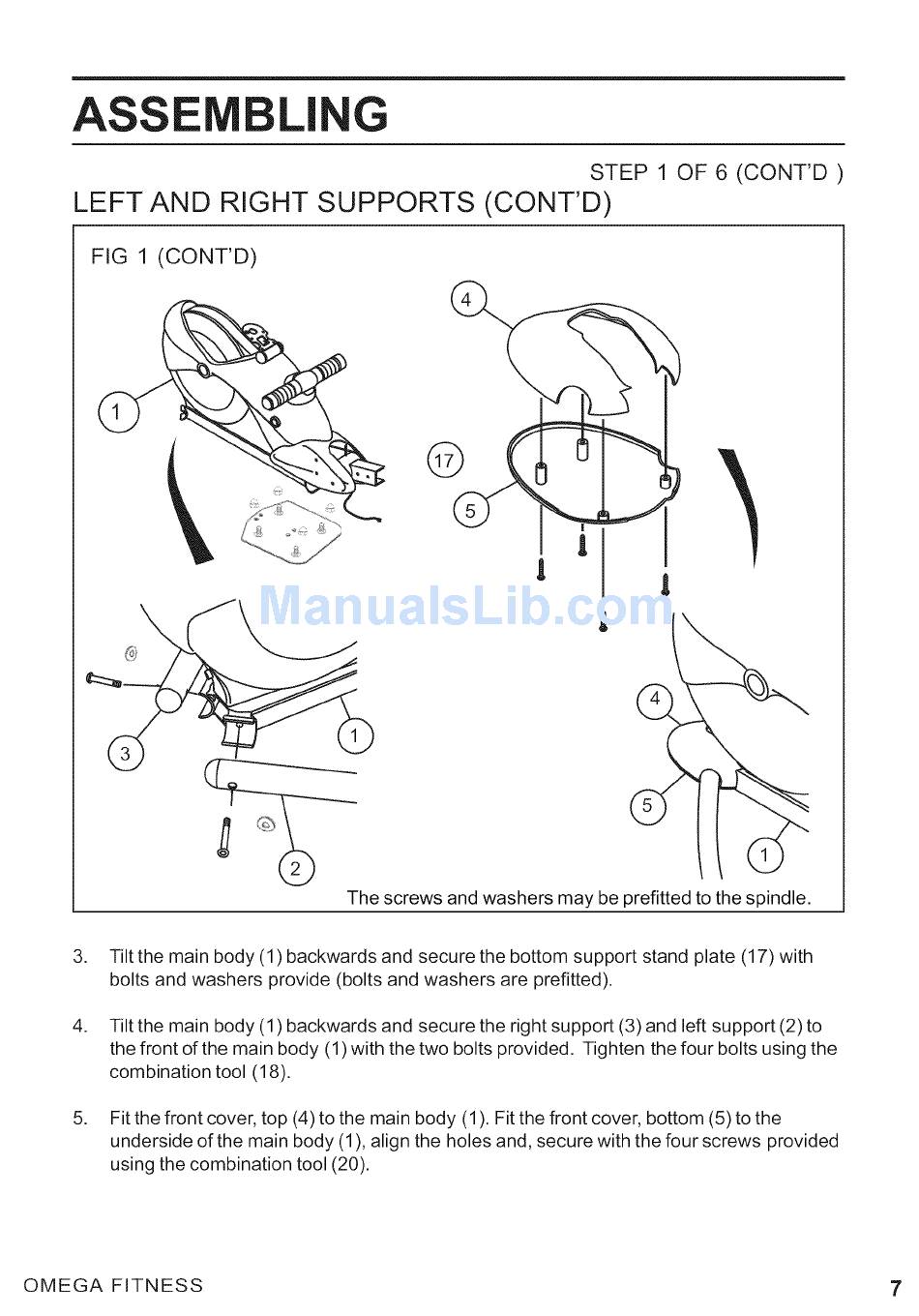

STEP 1 OF 6 (CONT'D)
LEFT AND RIGHT SUPPORTS
(CONT'D)
FIG 1 (CONT'D
@
l
d"
The screws and washers may be prefitted to the spindle.
,
,
,
Tilt the main body (1) backwards
and secure the bottom support stand plate (17) with
bolts and washers
provide (bolts and washers are prefitted).
Tilt the main body (1) backwards
and secure the right support (3) and left support (2) to
the front of the main body (1) with the two bolts provided.
Tighten the four bolts using the
combination
tool (18).
Fit the front cover, top (4) to the main body (1). Fit the front cover, bottom (5) to the
underside of the main body (1), align the holes and, secure with the four screws provided
using the combination
tool (20).
