Using the Grass Bag

Occasionally, you may wish to use the grass bag for
bagging extra long grass, lush grass, or leaves.
Installing the Grass Bag
1. Stop the engine and wait for all moving parts to stop.
2. Ensure that the discharge door handle is fully forward
and that the pin is engaged in the catch (Fig. 14).
1

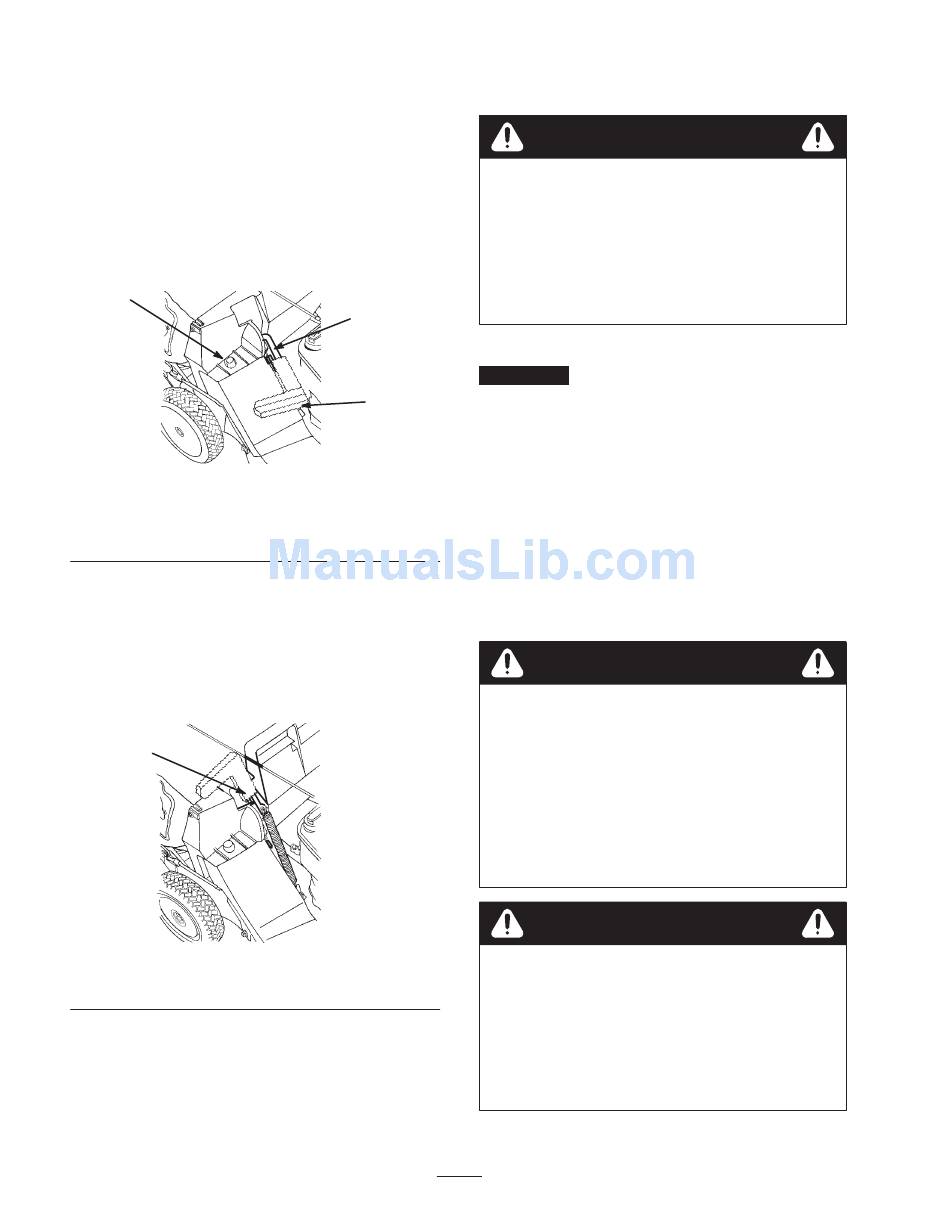

Figure 14
1. Bag frame on retaining
post
2. Pin engaged in catch
3. Slide the hole in the bag frame onto the retaining post
on the discharge tunnel (Fig. 14).
4. Set the rear of the bag frame onto the bag support rod.
5. Pull the discharge door handle forward until the pin
clears the catch, and move the handle rearward until
the pin locks in the bag notch (Fig. 15).
1
Figure 15
1. Pin locked in bag notch
Note: The discharge door in the lawn mower housing
is now open.
2
3
m-1912
3. Handle fully forward.
Discharge door closed.
m-1913
12
Mowing with the Grass Bag
Warning
A worn grass bag could allow small stones and
other similar debris to be thrown in the operator's
or bystander's direction and result in serious
personal injury or death to the operator or
bystanders.
Check the grass bag frequently. If it is damaged,
install a new Exmark replacement bag.
Cut the grass until the bag is full.
Important Do not overfill the bag.
Removing the Grass Bag
1. Stop the engine and wait for all moving parts to stop.
2. Raise the discharge door handle and move it forward
to engage the pin with the catch (Fig. 14).
3. Grasp the handles at the front and the rear of the bag
and lift the bag off the lawn mower.
4. Gradually tip the bag forward to empty the clippings.
5. To install the bag, refer to Installing the Grass Bag on
page 12.
Danger
If the discharge door does not close completely,
the lawn mower could throw objects, causing
serious personal injury or death.
If you cannot close the door because the grass
clippings clog the discharge area, stop the engine
and gently move the discharge door handle back
and forth until you can close the door completely.
If you still cannot close the door, remove the
obstruction with a stick, not your hand.
Danger
The lawn mower can throw grass clippings and
other objects through an open discharge tunnel.
Objects thrown with enough force could cause
serious personal injury or death to the operator or
bystander.
Never open the door on the discharge tunnel when
the engine is running.
