Kenmore 233.54065591 Owner's Manual

Hide thumbs


Advertisement

SEARS
OWNER'S
MANUAL
Model Nos.
233.54060591
233.54065591
233.54066591
233.54069591
Read and follow
all Safety Rulesand
Operating
Instructions
before first use of this
Product.
RANGE
HOOD
Safety
Instructions
Warranty
installation
Instructions
Use and Care
Part_;t_F_:
Sears, Roebuck
and Co., Hoffman
Estates, IL 60179
U.S.A.

Advertisement

Table of Contents

   Related Manuals for Kenmore 233.54065591

   Summary of Contents for Kenmore 233.54065591

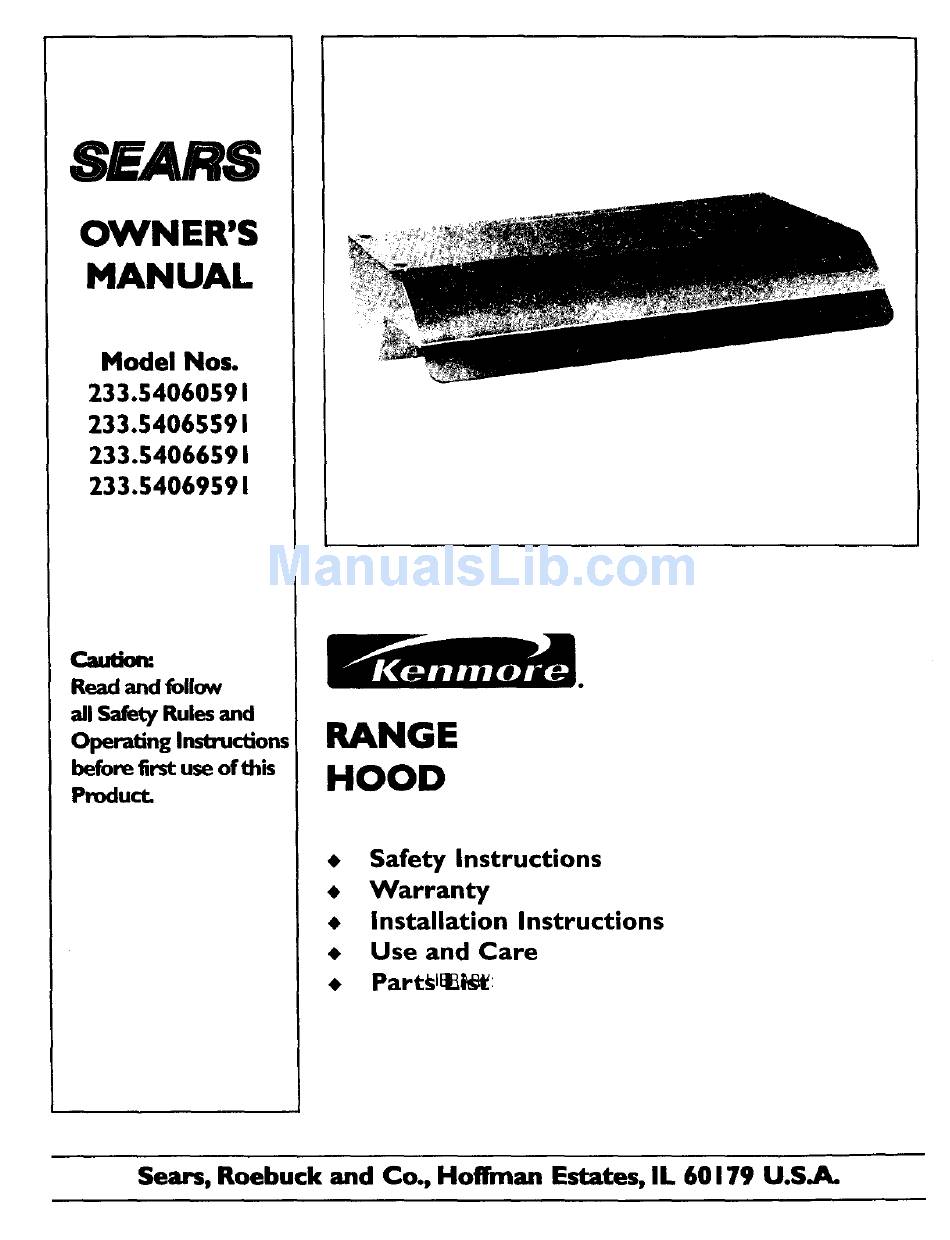

  • Page 1 SEARS OWNER'S MANUAL Model Nos. 233.54060591 233.54065591 233.54066591 233.54069591 Read and follow all Safety Rulesand RANGE Operating Instructions before first use of this HOOD Product. Safety Instructions Warranty installation Instructions € Use and Care Part_;t_F_: Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
  • Page 2 WARNING CAUTION TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR 1. For general ventilating use only. Do not use to exhaust haz- INJURY TO PERSONS, OBSERVE THE FOLLOWING: ardous or explosive materials and vapors. 1. Use this unit only in the manner intended by the manufac- 2.
  • Page 3 INSTALLATION INSTRUCTIONS TYPICAL VERTICALLY DUCTED CABINET_ INSTALLATION HOOD (_) REMOVE (_) REMOVE SHIPPING SCREW WOOD BLOCKS 18"-24"ABOVE COOKING SURFACE TYPICAL CABINET HORIZONTALLY 3¼'X 10' DUCTED • DUCT HOOD "_ INSTALLATION _) REMOVE -ff- (_ LIFT BLOWER WALL 18"-24"ASOVE COOKING SURFACE (_) LAY HOOD ON TABLE OR WORK SURFACE REMOVE (8)
  • Page 4 REMOVE VERTICAL HORIZONTAL DUCTKNOCKOUT KNOCKOUT VERTICAL KNOCKOUT REMOVE TAPE F/ DAMPER HORIZONTAL DISCHARGE (through back of hood VERTICAL DISCHARGE HORIZONTAL DISCHARGE WOOD SHIMS HORIZONTAL DUCT & (recessed-bottom ELECTRICAL ACCESS cabinets only) VERTICAL CABINET FRONT 1/8" 3A" DISCHARGE (throughtop hood ELECTRICAL HOOD MOUNTING ACCESS HOLE DUCTFREE...
  • Page 5 ROOF CAP 3¼*X 10" CONNECT BLACK TO BLACK, WHITE TO WHITE, GREEEN TO GREEN GROUND SCREW VERTICAL DUCTING HORIZONTAL DUCTING (use straightest duct run possible) CABINET BO'Fi-OM WOOD SHIM (recessed cabinets only) SEE STEP 9, DIAGRAM FOR SCREW LOCATIONS USE U.L. 75 W MAXIMUM INCANDESCENT APPROVED...
  • Page 6 USE AND CARE BLOWER LIGHT CLEAN IN DISHWASHER. REPLACE FI TER TOUCH ....On WHEN DIRTY (NORMALLY TOUCH ....Off - EVERY 6 MONTHS. TOUCH HOLD,..,Selectsblowerspeedorlightbdghtness TOUCH TWlCE,.On High CLEAN YOUR HOOD WITH A SOFT CLOTH AND A MILD DETER- GENT ONLY.

This manual is also suitable for:

233.54060591233.54069591233.54066591
