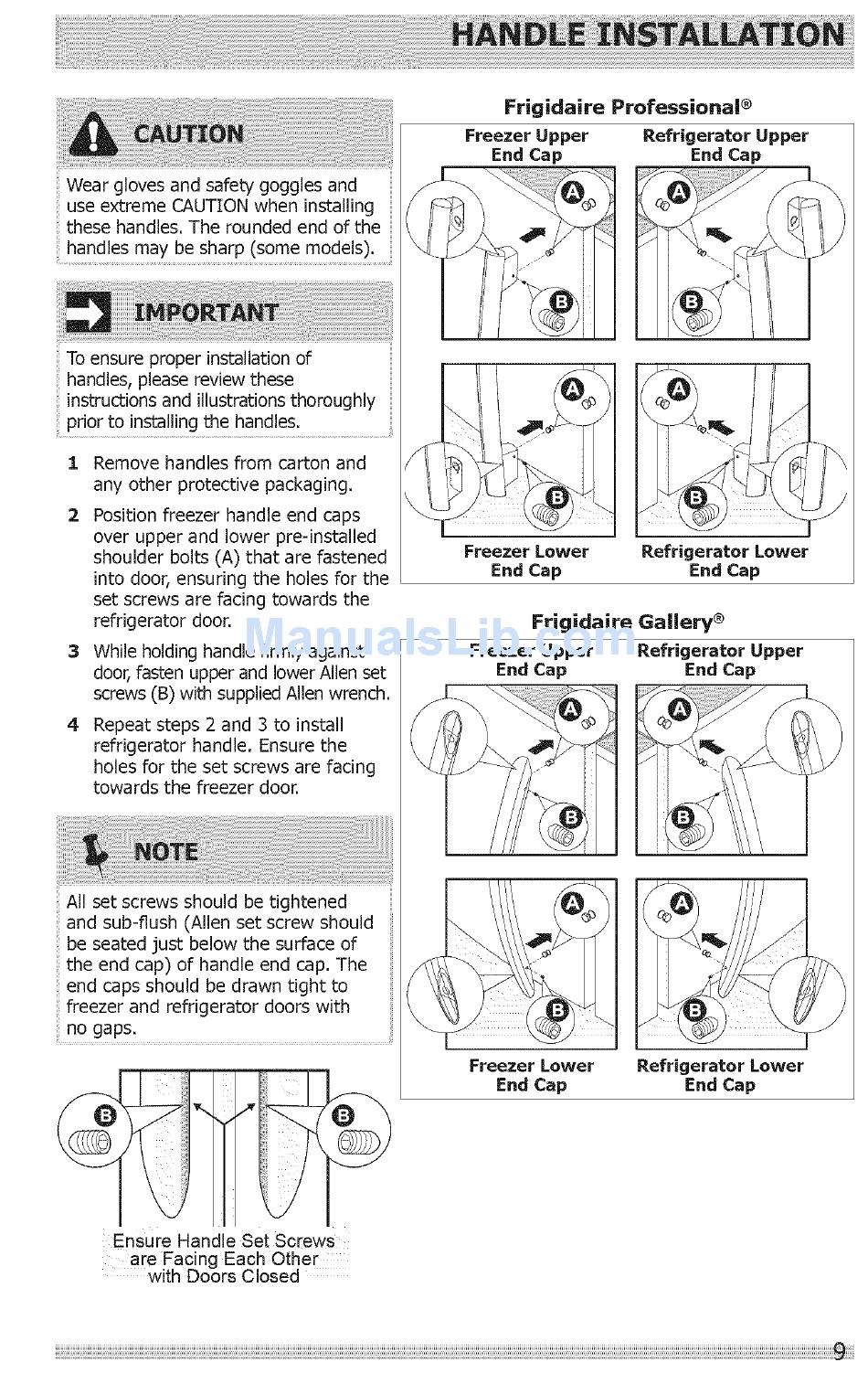

Frigidaire FGHS2655PF0 Use & Care Manual page 9

Wear gloves and safety goggles and
use extreme CAUTION when installing
these handles. The rounded end of the
To ensure proper installation of
handles, please review these
instructions and illustrations thoroughly
prior to installing the handles. ......
i
2
Remove handles from carton and
any other protective packaging.
Position freezer handle end caps
over upper and lower pro-installed
shoulder bolts (A) that are fastened
into door, ensuring the holes for the
set screws are facing towards the
refrigerator door.
While holding handle firmly against
door, fasten upper and lower Allen set
screws (B) with supplied Allen wrench.
Repeat steps 2 and 3 to install
refrigerator handle. Ensure the
holes for the set screws are facing
towards the freezer door.
All set screws should be tightened
and sub-flush (Allen set screw should
be seated just below the surface of
the end cap) of handle end cap. The
end caps should be drawn tight to
freezer and refrigerator doors with
no gaps.
Ensure Hanc le Set Screw,'
are Facing Each Other
with Doors Closed
Frigidaire Professional ®
Freezer Upper Refrigerator Upper
End Cap End Cap
Freezer Lower
End Cap
Refrigerator Lower
End Cap
Frigidaire Gallery ®
Freezer Upper Refrigerator Upper
End Cap End Cap
Freezer Lower Refrigerator Lower
End Cap End Cap
