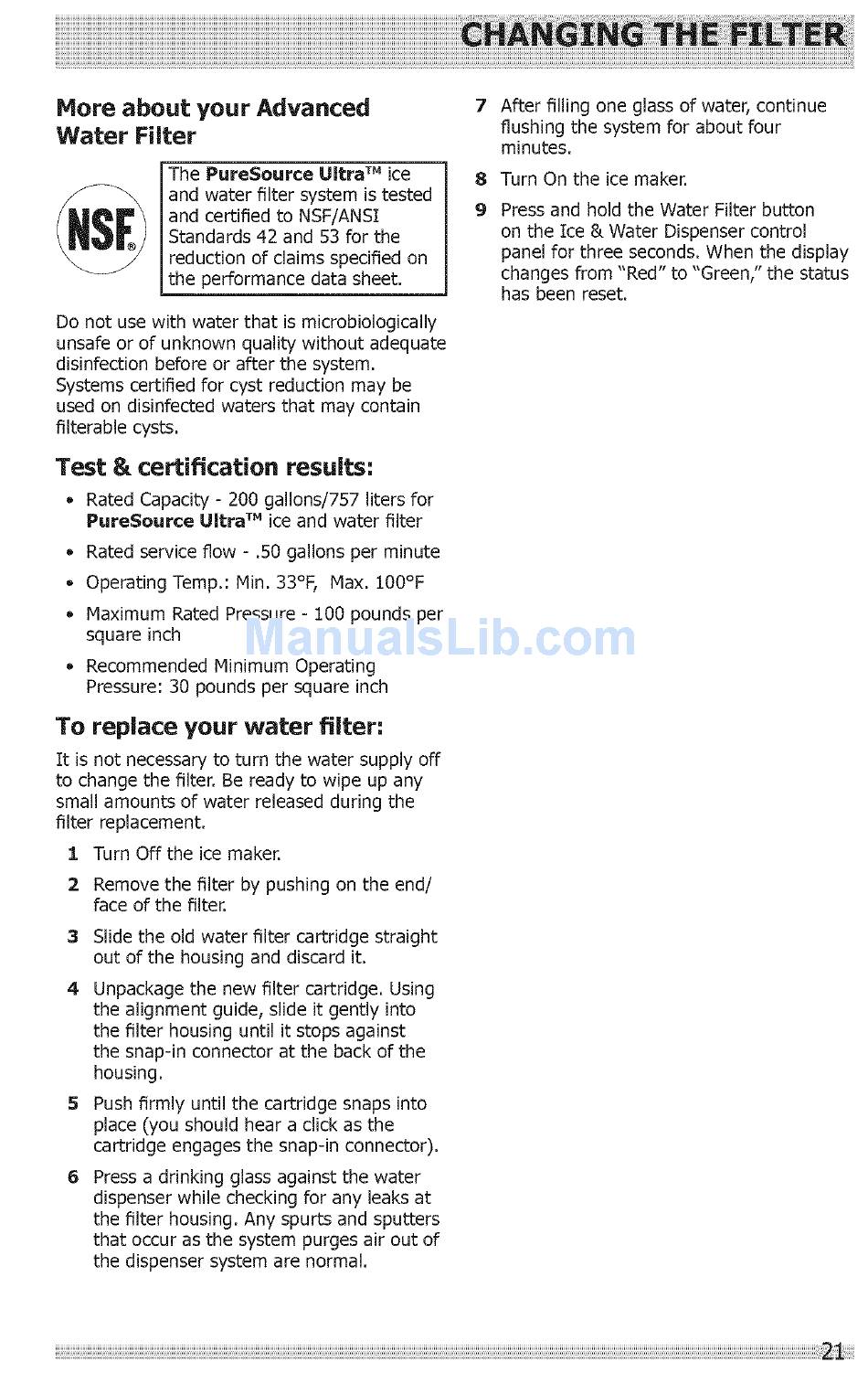

Frigidaire FGHS2655PF0 Use & Care Manual page 21

More about your Advanced
Water Filter
iThe PureSource Ultra
TM
ice
_S_ nd water filter system is tested
and certified to NSF/ANSI
Standards 42 and 53 for the
I reduction of claims specified on
[the performance data sheet.
Do not use with water that is microbiologically
unsafe or of unknown quality without adequate
disinfection before or after the system.
Systems certified for cyst reduction may be
used on disinfected waters that may contain
filterable cysts.
Test & certification results:
• Rated Capacity - 200 gallons/757 liters for
PureSource Ultra
TM
ice and water filter
• Rated service flow - .50 gallons per minute
Operating Temp.: Min. 33°F, Max. 100°F
Maximum Rated Pressure - 100 pounds per
square inch
Recommended Minimum Operating
Pressure: 30 pounds per square inch
To replace your water filter:
Itisnot necessarytoturnthe water supplyoff
tochange the filter. Be readyto wipe up any
smallamounts of water released duringthe
filter replacement.
1 Turn Off the ice maker.
2 Remove the filter by pushing on the end/
face of the filter.
3
4
Slide the old water filter cartridge straight
out of the housing and discard it.
Unpackage the new filter cartridge. Using
the alignment guide, slide it gently into
the filter housing until it stops against
the snap-in connector at the back of the
housing.
Push firmly until the cartridge snaps into
place (you should hear a click as the
cartridge engages the snap-in connector).
Press a drinking glass against the water
dispenser while checking for any leaks at
the filter housing. Any spurts and sputters
that occur as the system purges air out of
the dispenser system are normal.
8
9
After filling one glass of water, continue
flushing the system for about four
minutes.
Turn On the ice maker.
Press and hold the Water Filter button
on the Ice & Water Dispenser control
panel for three seconds. When the display
changes from "Red" to "Green," the status
has been reset.
