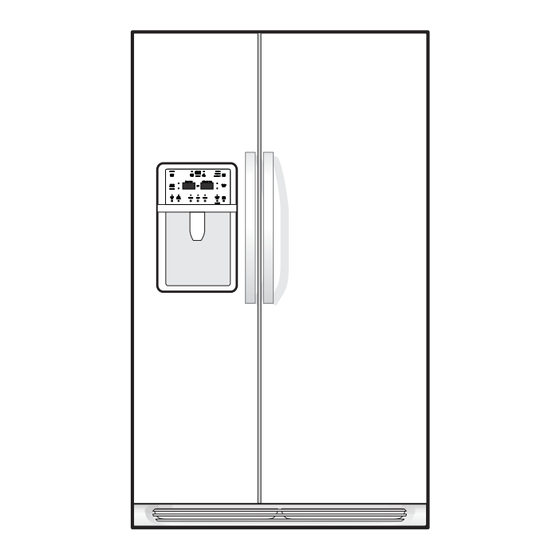

Frigidaire FGHS2655K Parts Catalog
Side-by-side refrigerator
Hide thumbs
Also See for FGHS2655K:
- Installation instructions (2 pages) ,
- Specification sheet (2 pages)
Table of Contents
Advertisement
Quick Links
N58L00003.eps F58FFDAAA0.eps F58RFDACA0.eps F58BAAAAE0.eps
F58SJCHBK1.eps F58TEBCAE0.eps N58CAAAAC14.eps F58XFCAAA0.eps
N58YBAAAA7.eps N58I1151-1.eps W241912901.eps S241912901.eps
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No.
FGHS2655KE0 FGHS2655KP0 FGHS2665KF0
Series
Gallery
Color
black (smooth) white (smooth) stainless
Volts
115
Wiring Diagram
241912901
Owner's Guide
241979200
Market
North America North America North America
Energy Guide
241935562
Service Data Sheet 240389638
Publication No.
5995535662
09/03/17
(EN/SERVICE/KHB)
137
Gallery
Gallery
115
115
241912901
241912901
241979200
241979200
241935562
241935563
240389638
240389638
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FGHS2655K /
FGHS2665K
©
Copyright
All rights reserved.
Advertisement
Table of Contents
Related Manuals for Frigidaire FGHS2655K
Summary of Contents for Frigidaire FGHS2655K
- Page 1 Product No. FGHS2655KE0 FGHS2655KP0 FGHS2665KF0 Series Gallery Gallery Gallery Color black (smooth) white (smooth) stainless Volts Wiring Diagram 241912901 241912901 241912901 Owner's Guide 241979200 241979200 241979200 Market North America North America North America Energy Guide 241935562 241935562 241935563 Service Data Sheet 240389638 240389638 240389638 SIDE-BY-SIDE...
-
Page 2: Freezer Door
Publication No: 5995535662 FGHS2655K / FGHS2665K FREEZER DOOR F58FFDAAA0 03/09... - Page 3 FGHS2655K / FGHS2665K Publication No: 5995535662 FREEZER DOOR Model Index: A FGHS2655K (FGHS2655KE0) B FGHS2655K (FGHS2655KP0) C FGHS2665K (FGHS2665KF0) POS. NO PART NO. DESCRIPTION 241786006 A - C Gasket-frzr door, black, magnetic 241786002 - B - Gasket-frzr door, white, magnetic 240334201 A B C Bin-door, frzr-upper...
-
Page 4: Refrigerator Door
Publication No: 5995535662 FGHS2655K / FGHS2665K REFRIGERATOR DOOR F58RFDACA0 03/09... - Page 5 FGHS2655K / FGHS2665K Publication No: 5995535662 REFRIGERATOR DOOR Model Index: A FGHS2655K (FGHS2655KE0) B FGHS2655K (FGHS2655KP0) C FGHS2665K (FGHS2665KF0) POS. NO PART NO. DESCRIPTION 241786005 A - C Gasket-refr door, black, magnetic 241786001 - B - Gasket-refr door, white, magnetic 240323002 A B C Bin-door, pseudo, bottom...
- Page 6 Publication No: 5995535662 FGHS2655K / FGHS2665K CABINET F58BAAAAE0 03/09...
- Page 7 FGHS2655K / FGHS2665K Publication No: 5995535662 CABINET Model Index: A FGHS2655K (FGHS2655KE0) B FGHS2655K (FGHS2655KP0) C FGHS2665K (FGHS2665KF0) POS. NO PART NO. DESCRIPTION 240435912 A B C Cover-air duct 241719711 A B C Cover-evap coil, lower 5303208309 A B C Plug-hole, factory test 14A# 241547901...
- Page 8 Publication No: 5995535662 FGHS2655K / FGHS2665K SHELVES 108A F58SJCHBK1 03/09...
- Page 9 FGHS2655K / FGHS2665K Publication No: 5995535662 SHELVES Model Index: A FGHS2655K (FGHS2655KE0) B FGHS2655K (FGHS2655KP0) C FGHS2665K (FGHS2665KF0) POS. NO PART NO. DESCRIPTION 241657602 A B C Shelf, flip up, wire 241657502 A B C Shelf, fixed, freezer 241657504 A B C Shelf, fixed, upper, freezer 240324101 A B C...
- Page 10 Publication No: 5995535662 FGHS2655K / FGHS2665K CONTROLS 210A F58TEBCAE0 03/09...
- Page 11 FGHS2655K / FGHS2665K Publication No: 5995535662 CONTROLS Model Index: A FGHS2655K (FGHS2655KE0) B FGHS2655K (FGHS2655KP0) C FGHS2665K (FGHS2665KF0) POS. NO PART NO. DESCRIPTION 5308000010 A B C Fan Blade, red, evaporator fan 215474201 A B C Washer, "slinger", nylon, evap fan shaft 241563601 A B C Bushing-motor mtg...
- Page 12 Publication No: 5995535662 FGHS2655K / FGHS2665K SYSTEM N58CAAAAC14 03/09...
- Page 13 FGHS2655K / FGHS2665K Publication No: 5995535662 SYSTEM Model Index: A FGHS2655K (FGHS2655KE0) B FGHS2655K (FGHS2655KP0) C FGHS2665K (FGHS2665KF0) POS. NO PART NO. DESCRIPTION 240333603 A B C Condenser 218679607 A B C Block-evap coil, styrofoam, (2) 218944001 A B C Drier-filter, R134a System 241516901 A B C...
-
Page 14: Ice And Water Dispenser
Publication No: 5995535662 FGHS2655K / FGHS2665K ICE & WATER DISPENSER F58XFAAAA0 03/09... - Page 15 FGHS2655K / FGHS2665K Publication No: 5995535662 ICE & WATER DISPENSER Model Index: A FGHS2655K (FGHS2655KE0) B FGHS2655K (FGHS2655KP0) C FGHS2665K (FGHS2665KF0) POS. NO PART NO. DESCRIPTION 218976915 A B C Tube-water inlet, inlet valve, to filter 218976419 A B C Tube-water inlet, valve to door 218976429 A B C...
-
Page 16: Ice Container
Publication No: 5995535662 FGHS2655K / FGHS2665K ICE CONTAINER 37A 34 34 33 N58YBAAAA7 03/09... - Page 17 FGHS2655K / FGHS2665K Publication No: 5995535662 ICE CONTAINER Model Index: A FGHS2655K (FGHS2655KE0) B FGHS2655K (FGHS2655KP0) C FGHS2665K (FGHS2665KF0) POS. NO PART NO. DESCRIPTION 241716101 A B C Auger-ice 241685201 A B C Cam-drive 241734001 A B C Container-ice, bucket only 241685101 A B C Drum-ice disp...
-
Page 18: Ice Maker
Publication No: 5995535662 FGHS2655K / FGHS2665K ICE MAKER A R M A R M L O C L O C K E D K E D U N T U N T I N T I N T L A C L A C INSTALLATION PARTS N58I1151-1... - Page 19 FGHS2655K / FGHS2665K Publication No: 5995535662 ICE MAKER Model Index: A FGHS2655K (FGHS2655KE0) B FGHS2655K (FGHS2655KP0) C FGHS2665K (FGHS2665KF0) POS. NO PART NO. DESCRIPTION 218976915 A B C Tube-water inlet, inlet valve, to filter 218976419 A B C Tube-water inlet, valve to door 218976429 A B C Tube-water inlet, 97.50", brown/tan...
- Page 20 Publication No: 5995535662 FGHS2655K / FGHS2665K ICE MAKER A R M A R M L O C L O C K E D K E D U N T U N T I N T I N T L A C L A C INSTALLATION PARTS N58I1151-1...
- Page 21 FGHS2655K / FGHS2665K Publication No: 5995535662 ICE MAKER Model Index: A FGHS2655K (FGHS2655KE0) B FGHS2655K (FGHS2655KP0) C FGHS2665K (FGHS2665KF0) POS. NO PART NO. DESCRIPTION 5303207328 A B C Screw, hex washer head, 8-15A x 1.000, (2) 5304456686 A B C Bracket-leveling, ice maker 5304456687 A B C...
-
Page 22: Wiring Schematic
Publication No: 5995535662 FGHS2655K / FGHS2665K WIRING SCHEMATIC 03/09... -
Page 23: Wiring Diagram
FGHS2655K / FGHS2665K Publication No: 5995535662 WIRING DIAGRAM 03/09 # Functional Parts * Non-Illustrated Parts...
