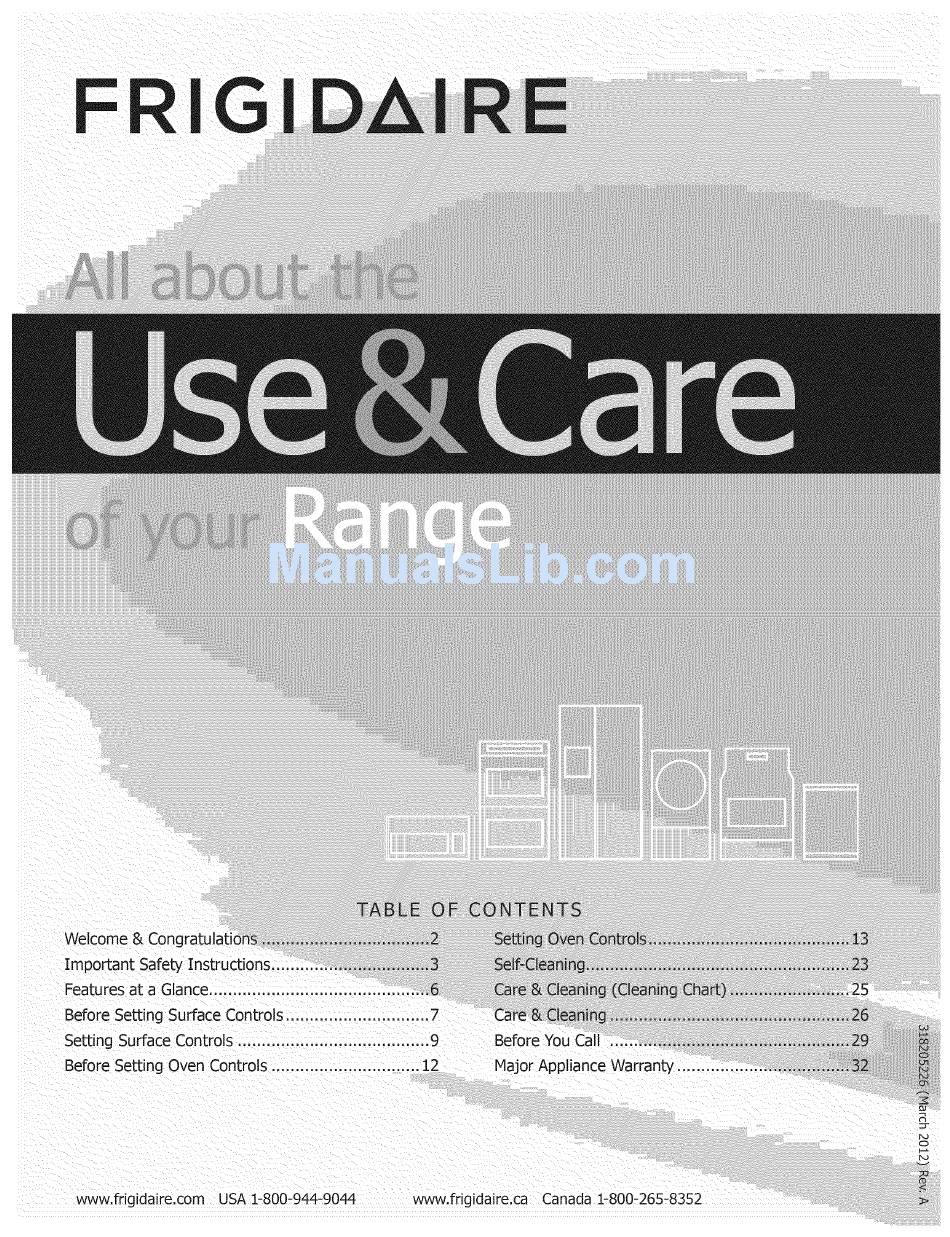

- Page 1 USA1-800-944-9044 www_frigidaire,ca Canada 1-800-265-8352...
- Page 2 Congratulations on your purchase of a new appliance! At Product Registration Electrolux Home Products, we are very proud of our product and are completely committed to providing you Register Your Product i_ij._ _ with the best service possible. Your satisfaction is our The PRODUCT number one priority.
- Page 3 Read all instructions before using this appliance. o Remove all tape and packaging wrap before using Save these instructions for future reference. the appliance. Destroy the carton and plastic bags after unpacking the appliance. Never allow DEFINITIONS children to play with packaging material. Do not remove This is the safety alert symbol.
-
Page 4: Important Instructions
Do not attempt to operate the appliance during a Do not store items of interest to children in the power failure, If the power fails, always turn cabinets above the appliance. Children climbing on the unit. If the unit is not turned off and the power the cooktop to reach items could be seriously injured. -
Page 5: For Future Reference
dueto thesudden change intemperature. Check t he - Do not use a broiler pan without its insert. Broiler manufacturer's recommendations forcooktop use. pan and grid allow dripping fat to drain and be kept away from the high heat of the broiler. Do Not Use Decorative Surface Burner Covers. -
Page 6: Range Features
size &5 v_-A 0--0 • ° deL_ bake timer start tlme c ock on-off a mln on-off on-off on-off on=off YOUR BUILT-IN RANGE FEATURES: Electronic oven control with kitchen timer. Left front element control and electronic display. Left rear element control and electronic display, Right rear element control and electronic display. - Page 7 COOKTOP DISPLAY WINDOWS (PF) POWER FAILURE MESSAGE The cooktop controls provide a digital display for each The PF message (Figure 9) will be displayed whenever element located on the cooktop. Power levels and there has been a power interruption to the appliance. messages are easily monitored and adjusted using the The PF message will disappear by itself after a few seconds.
- Page 8 USING PROPER COOKWARE ABOUT RADIANT SURFACE ELEMENTS The size and type of cookware used will influence the The element temperature rises gradually and evenly. setting needed for best cooking results. Be sure to follow As the temperature rises, the element will glow red. To the recommendations for using proper cookware as maintain the selected setting the element will cycle on and...
- Page 9 SINGLE RADIANT ELEMENT To Operate the Single Radiant Surface Elements: 1. Place correctly sized cookware on the radiant surface The cooktop provides single element. radiant element located as illustrated. Use the following Touch and hold the on=off pad instructions when operating for the desired element position these elements.
- Page 10 DUAL RADIANT ELEMENT The cooktop provides a dual radiant element located as illustrated. Use the following instructions when operating this element. raed size ©@ Use the Size keypad (Fig. 1) to select which portions of the dual element are needed for heating. The dual ®o element size may be changed anytime the element is ON.
- Page 11 KEEP WARH ZONE The cooktop provides a keep warm zone located as illustrated. The keep warm zone will not glow red when it is hot, Use the following instructions but becomes hot enough to cause burns. Avoid placing © when operating this element. hands on or near the keep warm zone.
-
Page 12: Types Of Oven Racks
Oven vents location ARRANGING OVEN RACKS ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS The upper and lower ovens are vented at the back of COOL (PRIOR TO OPERATING THE OVEN). Always use oven mitts when using the oven. the cooktop. When an oven is on, warm air is released To remove an oven rack, pull the rack forward until it... - Page 13 CONTROL FEATURES READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various features and functions of the oven as described below. Detailed instructions for each feature and function follow later in this Use & Care Guide. Qupper oven L=J (_se[f...
- Page 14 MINIMUM MAXIMUM CONTROL SETTINGS All of the features listed below have minimum and maximum time or temperature settings that may be entered into the control. An ENTRY acceptance beep will sound each time a control pad is touched (the acceptance beep on the Oven Lockout pad is delayed 3 seconds).
- Page 15 SETTING CLOCK SETTING CONTINUOUS BAKE OR 6 HOUR ENERGY SAVING The SET CLOCK pad is used to set the clock. The clock may be set for 12 or 24 hour time of day operation. The TIMER and SELF CLEAN pads control the The clock has been preset at the factory for the 12 hour Continuous Bake or 6 Hour Energy Saving features.
-
Page 16: Operation
Press SELF CLEAN to switch between normal sound SETTING LOCKOUT FEATURE operation and silent operation mode. The display will show either "bEEP On" or "bEEP OFF". The _1 pad controls the Lockout feature. The Lockout feature automatically locks the oven doors, the control Note: If "bEEP On"... -
Page 17: Quick Preh Eat
SETTING BAKE QUICK PREH EAT Use the quick preheat feature when using single rack The BAKE pad controls normal baking. If a rapid baking to quickly heat the oven to bake temperatures. preheating is preferred, refer to the QUICK PREHEAT Use this feature only for standard baking. - Page 18 SETTING BAKE TIHE SETTING DELAY START Bake Time allows the oven to be set to cook for a specific The BAKE, BAKE TIME and DELAY START pads control length of time and shut off automatically. the Delayed Time Bake feature. The automatic timer of the The oven will shut off and will beep when the countdown Delayed Time Bake will turn the oven on and off at the is finished.
- Page 19 To set a Broil of 500°F: SETTING BROIL Placethe broiler pan insert on the broiler pan. Then place This mode isbest for fishand poultry up to I" meats, the food on the broiler pan insert. DO NOT use the broiler thick.
- Page 20 SETTING PIZZA SETTING KEEP WARM The PIZZA pad has been designed to give optimum This mode is best for keeping oven baked foods warm cooking performance when cooking your favorite pizza. for serving after cooking has finished. The KEEP WARM The Pizza pad let you choose a preset between a frozen pad turns ON the Keep Warm feature and will maintain pizza (425°F) and a fresh pizza (400°F).
-
Page 21: Oven Light
SETTING SABBATH FEATURE (for use on the Jewish Sabbath & Holidays) The BAKE TIME and DELAY START pads are used to You may change the oven temperature once baking has set the Sabbath feature. The Sabbath feature may only be started by pressing BAKE, the numeric key pads for the used with the BAKE pad. -
Page 22: Oven Temperature
ADJUSTING OVEN TEMPERATURE OVEN LIGHT The temperature in the oven has been pre-set at the Each oven is equipped with an oven light. The oven light factory. When first using the oven, be sure to follow will turn on automatically, when the oven door is opened. recipe times and temperatures. -
Page 23: Self-Cleaning
SELF-CLEANING What to Expect during Cleaning A self-cleaning oven cleans itself with high temperatures While the oven is in operation, the oven heats to (well above normal cooking temperatures) which temperatures much higher than those used in normal eliminate soils completely or reduces them to a fine cooking. - Page 24 SETTING SELF-CLEAN CYCLE TIME LENGTH The SELF CLEAN and DELAY START pads controls the Delayed Self=Clean operation. The automatic timer will turn The SELF CLEAN pad controls the Self=Cleaning feature. the oven on and off at the time you select in advance. If you are planning to use the oven directly after a self- dean cycle remember to allow time for the oven to cool To set the control for the Self-Cleaning...
-
Page 25: Cleaning Various Parts Of Your Appliance
CLEANING VARIOUS PARTS OF YOUR APPLIANCE Before cleaning any part of the appliance, be sure all controls are turned off and the appliance is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANING WILL REDUCE THE NUMBER OF MAJOR CLEANING LATER. - Page 26 CLEANING RECOMMENDATIONS FOR THE CERAMIC GLASS COOKTOP CLEANING & CERAMIC GLASS COOKTOP HAINTENANCE C0ns stent p roper dean .g i s essentia to maintaining your Ceramic glass cooktop, Before cleaning the cooktop, be sure the controls are Prior to using your cooktop for the turned to OFF and the cooktop is COOL, first time, apply the recommended CERAMA BRYTE®...
-
Page 27: Cleaning Recommendations
CLEANING RECOMMENDATIONS FOR THE CARE AND CLEANING OF STAINLESS STEEL Some models are equipped with stainless steel exterior CERAHIC GLASS COOKTOP (CONTINUED) parts. Special care and cleaning are required for Plastic or foods with a high sugar content: maintaining the appearance of stainless parts. Refer These types of soils need be removed immediately if spilled to the General Care &... -
Page 28: Removing And Replacing
REMOVING AND REPLACING THE LIFT= Firmly grasp both sides of oven door along the door sides (Do not use the oven door handle - See Figure 3). OFF OVEN DOOR The door is heavy. For safe, temporary storage, lay the door fiat with the inside of the door facing down. - Page 29 OVEN BAKING For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.
- Page 30 Beforeyou call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Range is not level, Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust leveling legs at base of range until the rack is level.
- Page 31 Scratches or Coarse particles such as salt or sand between cooktop and utensils can cause scratches. Be abrasions sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not cooktop surface, affect cooking and will become less visible with time. Cleaning materials not recommended for ceramic-glass cooktop have been used.
- Page 32 Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.
