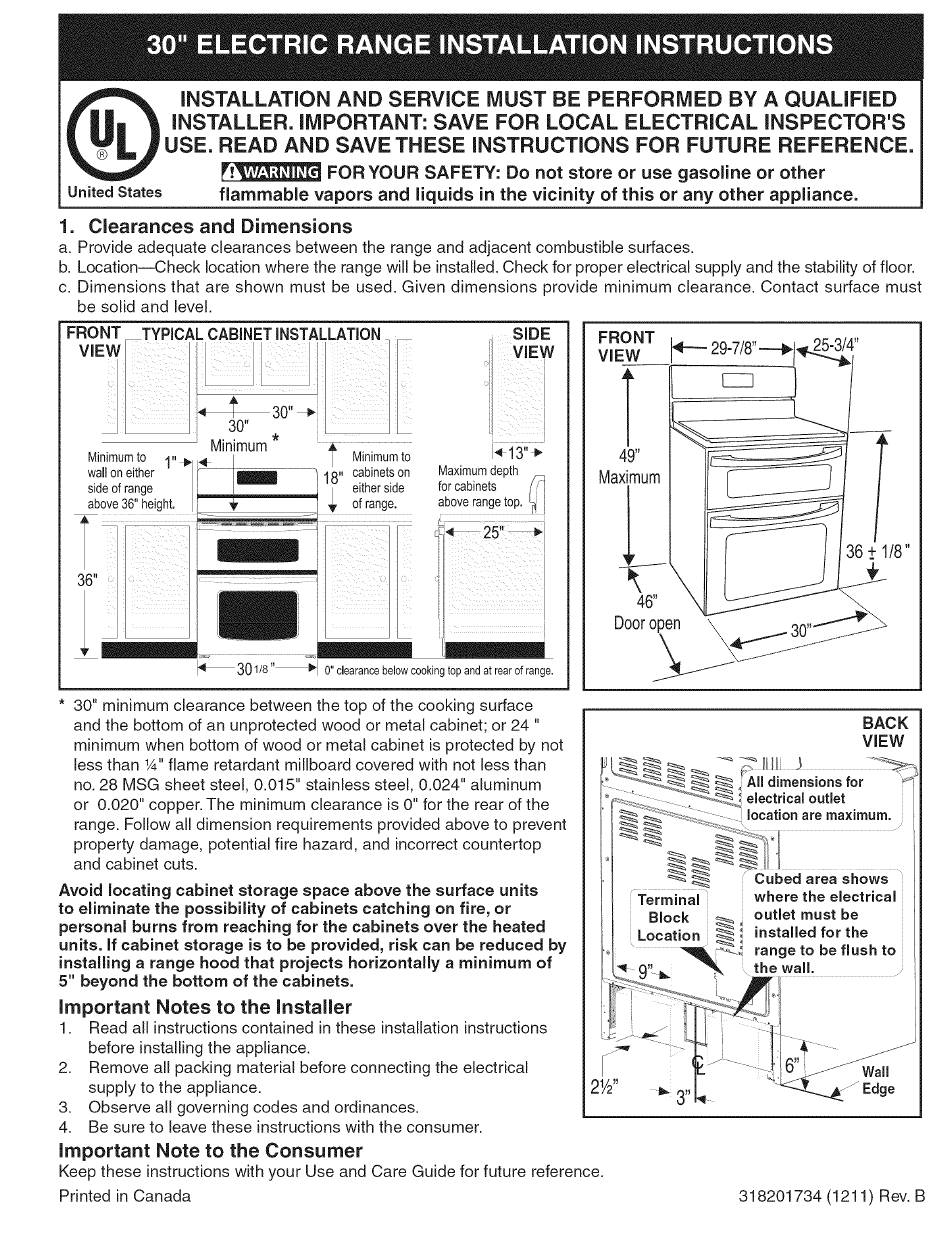

30" ELECTRIC RANGE INSTALLATION INSTRUCTIONS
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED
Uj INSTALLER. IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S
L USE. READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other
United States flammable vapors and liquids in the vicinity of this or any other appliance.
1. Clearances and Dimensions
a. Provide adequate clearances between the range and adjacent combustible surfaces.
b. Location—Check location where the range will be installed. Check for proper electrical supply and the stability of floor.
c. Dimensions that are shown must be used. Given dimensions provide minimum clearance. Contact surface must
be solid and level.
FRONT _ TYPICAL CABINET INSTALLATION , . SIDE FRONT , 1g"
VIEW | VIEW | | view 29-78' > 20°88
A
<—_ 30" >
30" * a
Minimum to
4" » "ae
t
Minimum to
Moe
< ist
49"
wall on either cr » Cabinets on aximum Gep i
side of range
either side
for cabinets
Maximum
__ above 36" height. ¥v 1 of range. above range top.
e e - é 5" '
36 + 1/8"
36"
:
|
46"
NS
Dooropen < ay'
Va
30" minimum clearance between the top of the cooking surface
and the bottom of an unprotected wood or metal cabinet; or 24 "
minimum when bottom of wood or metal cabinet is protected by not
less than %4" flame retardant millboard covered with not less than MSSsq Seid
u . " : @ tee Sy TS Se, | i i
no. 28 MSG sheet steel, 0.015" stainless steel, 0.024" aluminum cs SS SS , All dimensions for
=== 4 electrical outlet
or 0.020" copper. The minimum clearance is 0" for the rear of the
range. Follow all dimension requirements provided above to prevent
property damage, potential fire hazard, and incorrect countertop
and cabinet cuts.
I
= ss " Cubed area shows —
"Terminal - where the electrical
Block SS. outlet must be
| Location SS ' installed for the
.os, range to be flush to
A K the wall. J
Avoid locating cabinet storage space above the surface units
to eliminate the possibility of cabinets catching on fire, or
personal burns from reaching for the cabinets over the heated
units. If cabinet storage is to be provided, risk can be reduced by
installing a range hood that projects horizontally a minimum of
5" beyond the bottom of the cabinets.
important Notes to the Installer
1. Read all instructions contained in these installation instructions
before installing the appliance.
2. Remove all packing material before connecting the electrical
supply to the appliance. 2\e"
3. Observe all governing codes and ordinances.
4. Be sure to leave these instructions with the consumer.
important Note to the Consumer
Keep these instructions with your Use and Care Guide for future reference.
Printed in Canada 318201734 (1211) Rev.B
