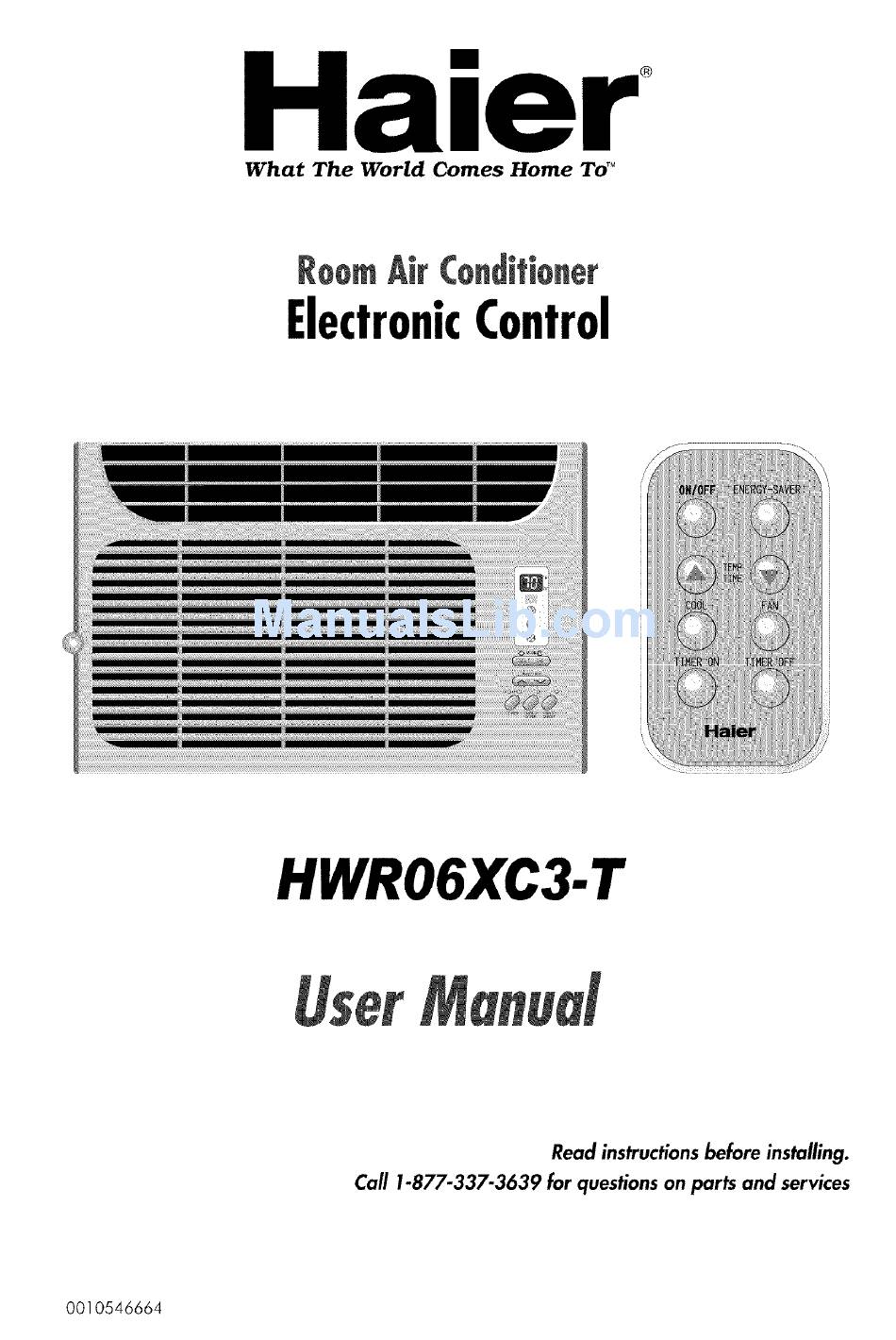

- Page 1 Haler What World Comes Home Roo_ Air Electronic Control HWRO6XC3.T Read instructionsbefore installing. Call 1-877-337-3639 for questionson parts and services 0010546664...
-
Page 2: A Word From Haier
Thank You for buying a dependable, energy saving and easy to operate HALER room air conditioner. This manual contains useful information for you to maintain, operate, install and safely use your room air conditioner. Your air conditioner cleans, cools and dehumidifies the air in your room to provide you with the ultimate level of comfort. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS WARNING: Following these basic precautions will reduce risk of fire, electrical shock, injury or death when using your air conditioner. 1) Air conditioner must be connected to proper electrical outlet with the correct electrical supply. (see table) 2) Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT OR REMOVE THE GROUNDING PRONG. -
Page 4: Table Of Contents
PAGE A Word From Haier Product Registration Safety Precautions Warnings Electrical Safety Tips Energy Saving Guide Features 8-13 Operating Guide Normal Operating Sounds 8-13 Operating Instructions Installations 14-18 Parts Tools 16-18 Installing Unit into A Window Clean Care Guide 19-20... -
Page 5: Warnings
Following the safety messages is very important. These messages can save you from being injured or killed. W'arnlng symbols alert you to be careful and means Danger. Always follow instructions to be safe and reduce chances of injury or death. Warning and Danger signs will precede safety messages. -
Page 6: Tips
• This Air Conditioner is designed for use in a double hung window. • While installing unit be sure to tilt air conditioner 1/4 inch ou_,ard to have the water drip outside the house. • Install the unit on the north side as normally that is the shaded side. This will enhance the operation of your unit. -
Page 7: Features

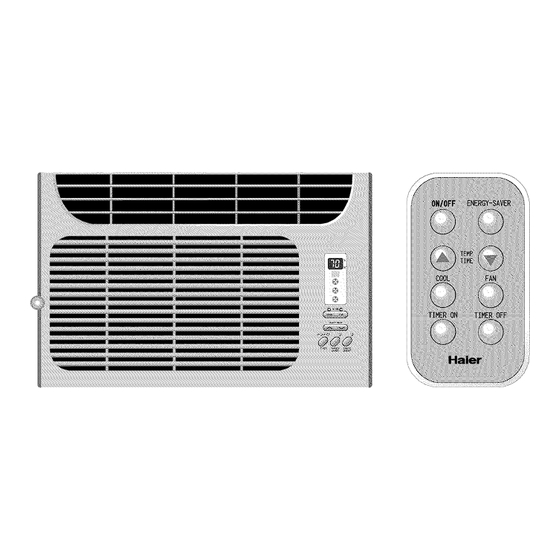

2-way airflow electronic easy-access filters touch pad Electronic touch pad Fan Speed indicator TEMP/TIMER In COOL mode: display Signal receiving lowcool & low reedcool& reed highcool& high| fan speed fan speed fanspeed | window COOL In FAN mode: button high button fan speed fan speed... - Page 8 1. Thermostat 5. Timer Your air conditioner can be set to go on or off at This allows you to adjust the temperatureof the air. your desire. Thiscan be done up to 24 hours in Thelower the settingthe cooler the air temperature. advance.
-
Page 9: Normal Operating Sounds
Normal Operatlng Sounds The following sounds are normally heard during the operation of an air conditioner. • Cool airflow movement as dictated by the set fan speed. • Water sounds. This is normal as your air conditioner acts as a dehumidifier also. - Page 10 After you plug in the unit it will perform a self test. All the display lights will turn on for 3 seconds. The LED display will read "88". If any display light fails to turn on you may need service on the unit. After the 3 seconds self test the unit will automatically go to the stand by mode.
- Page 11 Fig. # 3 Control Panel. Once the function mode is decided you will have to set the fan speed. If you choose the COOL mode you can run the fan in one of the 3 speeds HIGH, MED and LOW. (See Fig. # 4) Fig.
- Page 12 For cool days you may want to run the " Fan Only " function. Here the fan can runs at HIGH, MED or LOW. ( See Fig. #5 ) Fig. # 5 Control Panel. high fan speed fan speed fan speed Timer on or Timer off mode is used to pre-start or shut off your unit in advance.
- Page 13 ©Timer Off (See Fig. # 6) Unit must be running to set the timer off. Use this to preset the time you would like the unit to shut off. a) PressOff, LED display will show "XX" (time set last time) when power is connected first time, LEDdisplay will show "01"...
- Page 14 Energy Saver: By pressing this key you will activate the unit to go in the energy saver mode. The fan will be off 3 minutes after the compressor cycle off. By deactivating it the fan keeps running at the set speed even if the compressor shuts off.
-
Page 15: Installations
Before you install your air conditioner check the following: The unit is free of all obstructions inside and outside the room e.g. drapes, curtains, furniture, plants, shrubs, bushes, trees, other structures like building, garage etc. Air conditioner must have clear unobstructed airflow through the condenser to remove the heat. -
Page 16: Parts
Parts Parts Supplied <_.<_<:_ basepan angle wood screws 31/32" top rail short screws 18/32" soa' gosket "CR2025" battery left and right side curtains Remote control You will need to have the following tools to help you in the installation of your air conditioner. -
Page 17: Installing Unit Into A Window
Installi Unit into A Window Window Opening Requirements The air conditioner is designed to fit into double or single hung sash type windows. Each of the units comes with an installation kit that provides adjustable mounting louvers, to fill the gaps between the sides of the unit, and the window frame. - Page 18 PREPARE INNER WINDOW FOR SILL INSTALLATION oS I 1, This unit is designed for installation in standard double hung windows with actual opening widths of 22" to 36". The upper and lower sash must open sufficiently to allow a clear vertical opening of 14" from the bottom of the sash to the window stool.
- Page 19 INSTALL THE AIR CONDITIONER IN THE WINDOW WIND( UPPER Carefully lift the air conditioner and slide it into the open ABOUT 1/4" window. Make sure the bottom guide of the air conditioner drops into the notches of the basepan angle. While steadying the air conditioner ,carefully bring the window sash down behind the upper guide of the air...
-
Page 20: Clean And Care Guide
TAB AIR FILTER Always unplug your air conditioner before cleaning. Air filter needs to be cleaned at least once a mouth for your unit to operate at optimum efficiency. The filter can be slid out from the side by pulling on the tab located on the middle left side of the front mask. The filter may be washed or vacuumed. -
Page 21: Troubleshooting
To store your air conditioner, after the season, remove the unit from the window as per the installation guide. Repack the unit in its original box and store away. If your unit is installed in a wall or you do not intend to remove it from the window then cover the outside with a winter cover. - Page 22 90 days). • Damages in shipping 2. The sealed system and compressor • Damages from misuse, abuse, contained in this Haier product is for a accident, alteration, lack of proper care period of 5 years, from the date of and maintenance purchase (excluding labor costs after the •...
-
Page 23: Warranty Information
IMPORTANT Do Not Return This Product To The Store If you have a problem with this product, please contact the "Haier Customer Satisfaction Center" at !-877-337-3639. DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE FOR SPECIFIC ELECTRICAL RATING, REFER TO ELECTRICAL RATING...
