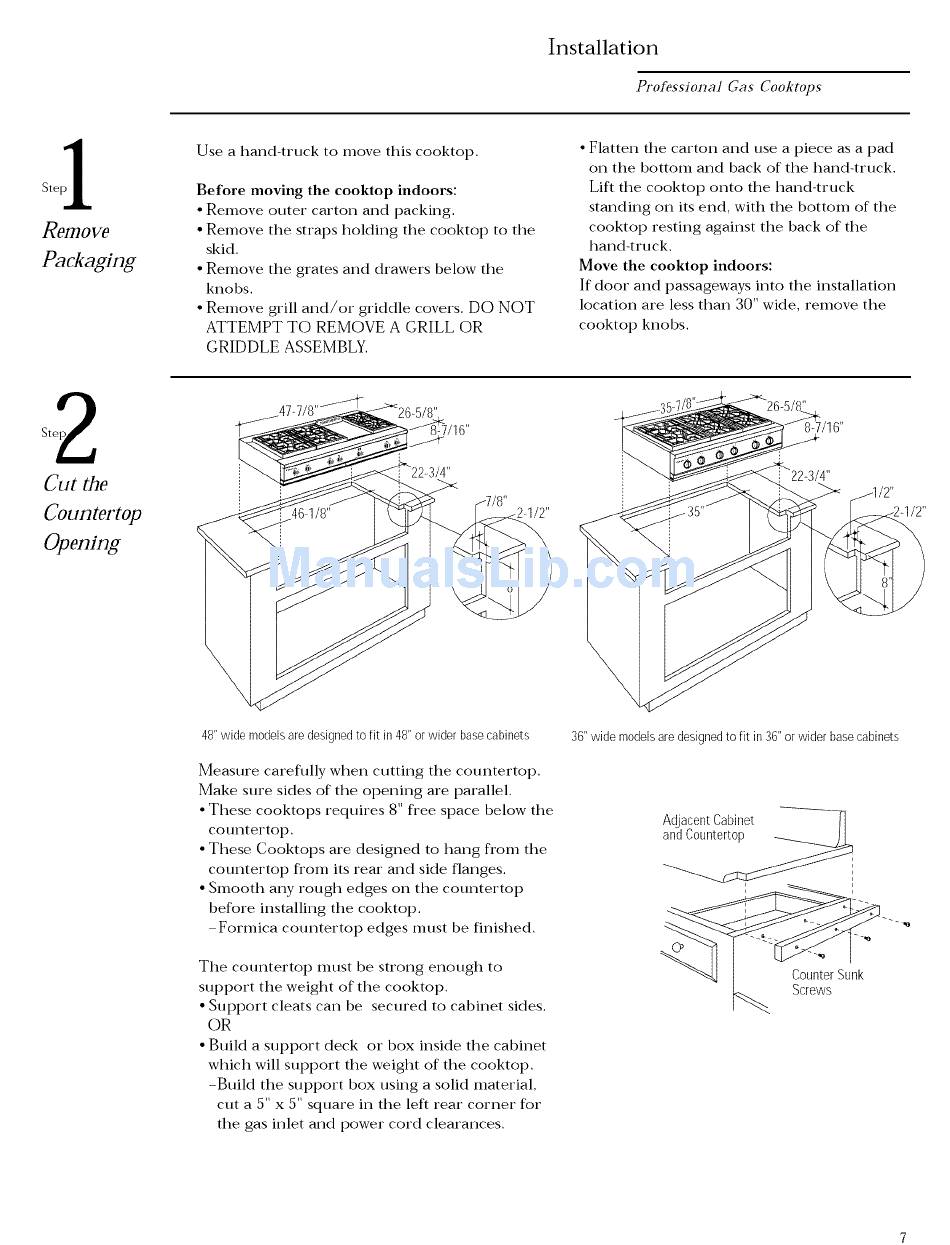

Installation
Pl"ofessional Gas Cooktops
Remove
Packaging
Use a hand-truck to move this cooktop.
Before moving the cooktop indoors:
• Remove outer carton and packing.
• Remove the straps holding the cooktop to the
skid.
• Remove the grates and drawers below the
knobs.
• Remove grill and/or griddle covers. DO NOT
ATTEMPT TO REMOVE A GRILL OR
GRIDDLE ASSEMBLY.
• Flatten the carton and use a piece as a pad
on the bottom and back of the hand-truck.
Lift the cooktop onto the hand-truck
standing on its end, with the bottom of the
cooktop resting against the back of the
hand-tru ck.
Move the cooktop indoors:
If door and passageways into the installation
location are less than 30" wide, remove the
cooktop knobs.
2
Cut the
Countertop
Opening
48" wide models are designedto fit in 48" or wider base cabinets
Measure carefully when cutting the countertop.
Make sure sides of the opening are parallel.
• These cooktops requires 8" free space below the
countertop.
• These Cooktops are designed to hang fl'om the
countertop fl'om its rear and side flanges.
• Smooth any rough edges on the countertop
before installing the cooktop.
Formica countertop edges nmst be finished.
The countertop must be strong enough to
support the weight of the cooktop.
• Support cleats can be secured to cabinet sides.
OR
• Build a support deck or box inside the cabinet
which will support tim weight of the cooktop.
-Build the support box using a solid material,
cut a 5" x 5" square in the left rear corner for
the gas inlet and power cord clearances.
36" wide models are designedto fit in 36" or wider base cabinets
AdjacentCabinet
CounterSunk
Screws
