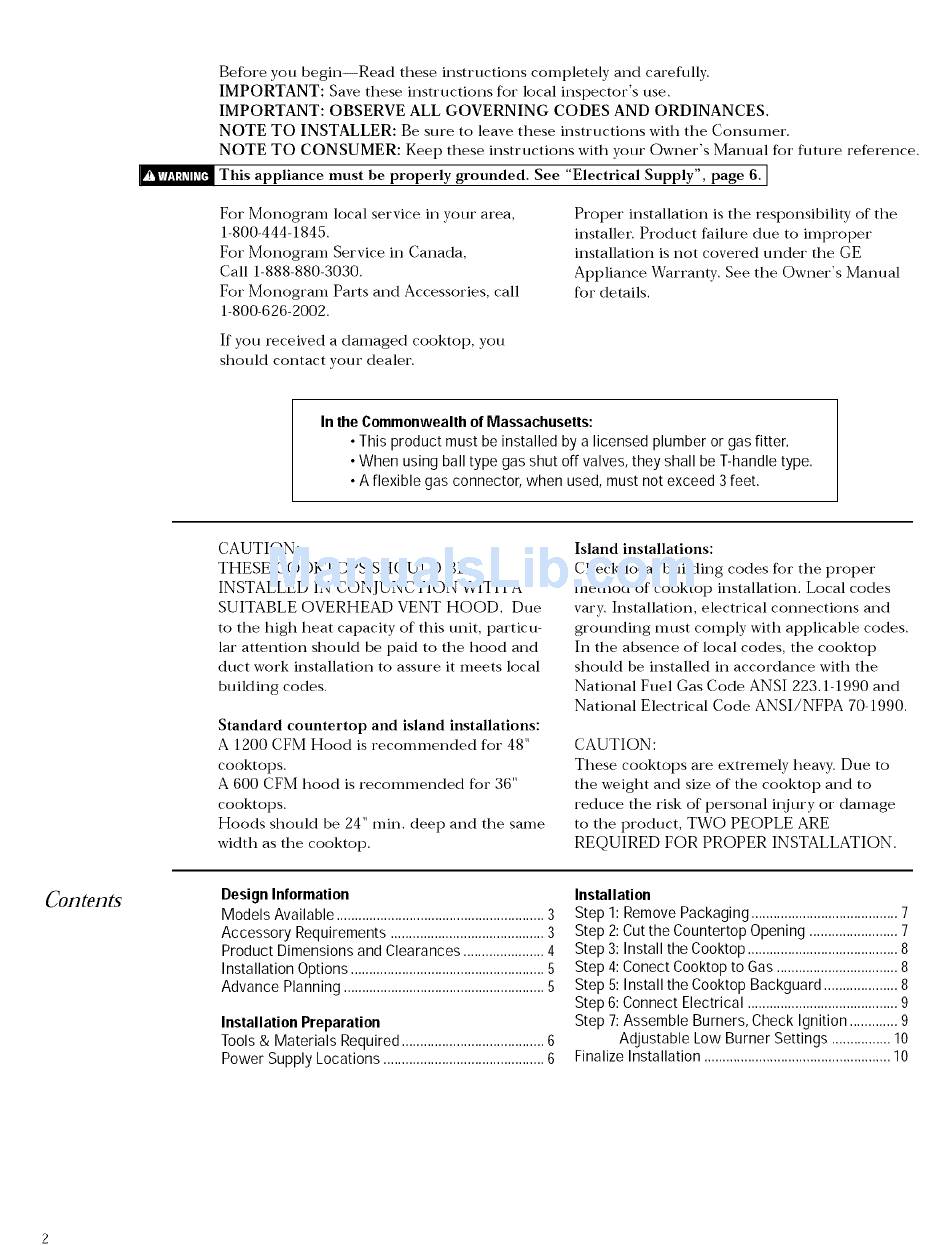

Before you begin--Read these instructions completely and carefully.
IMPORTANT:
Save these instructions for local inspector's use.
IMPORTANT: OBSERVE ALL GOVERNING CODES AND ORDINANCES.
NOTE TO INSTALLER: Be
sure to leave these instructions with the Consumer.
NOTE TO CONSUMER:
Kee t) these instructions with your Owner's Manual for future reference.
Ir!,w.,l:mh, t_ This appliance must be properly grounded. See "Electrical Supply", page 6. I
For Monogram local service in your area,
1-800-444-1845.
For Monogram Service in Canada,
Call 1-888-880-3030.
For Monogram Parts and Accessories, call
1-800-626-2002.
If you received a damaged cooktop, you
should contact your dealer.
Proper installation is the responsibility of the
installer. Product failure due to improper
installation is not covered under the
GE
Appliance Warranty. See the Owner's Manual
for details.
In the Commonwealthof Massachusetts:
• This product must be installed by a licensed plumber or gas fitter
• When using ball type gas shut off valves, they shall be Thandle type
• A flexible gas connector, when used, must not exceed 3 feet
CAUTION:
THESE COOKTOPS SHOULD BE
INSTALLED IN CONJUNCTION WITH A
SUITABLE OVERHEAD VENT HOOD. Due
to the high heat capacity of this unit, particu-
lar attention should be paid to the hood and
duct work installation to assure it meets local
building codes.
Standard countertop and island installations:
A 1200 CFM Hood is recommended for 48"
cooktops.
A 600 CFM hood is recommended for 36"
cooktops.
Hoods should be 24" rain. deep and the same
width as the cooktop.
Island installations:
Check local building codes for the proper
method of cooktop installation. Local codes
vary. Installation, electrical connections and
grounding must comply with applicable codes.
In
the absence of local codes, the cooktop
should be installed in accordance with the
National Fuel Gas Code ANSI 223.1-1990 and
National Electrical Code ANSI/NFPA 70-1990.
CAUTION:
These cooktops are extremely hem% Due to
the weight and size of the cooktop and to
reduce the risk of personal injury or damage
to the product, TWO PEOPLE ARE
REQUIRED FOR PROPER INSTALLATION.
Contents
Design Information
Models Available ......................................................... 3
Accessory Requirements .......................................... 3
Product Dimensions and Clearances ...................... 4
Installation Options ..................................................... 5
Advance Planning ....................................................... 5
Installation Preparation
Tools & Materials Required....................................... 6
Power Supply Locations ............................................ 6
Installation
Step 1: Remove Packaging ........................................ 7
Step 2: Cut the Countertop Opening ........................ 7
Step 3: Install the Cooktop ......................................... 8
Step 4: Conect Cooktop to Gas ................................. 8
Step 5: Install the Cooktop Backguard .................... 8
Step 6: Connect Electrical ......................................... 9
Step 7: Assemble Burners, Check Ignition ............. 9
Adjustable Low Burner Settings ................ 10
Finalize Installation ................................................... 10
