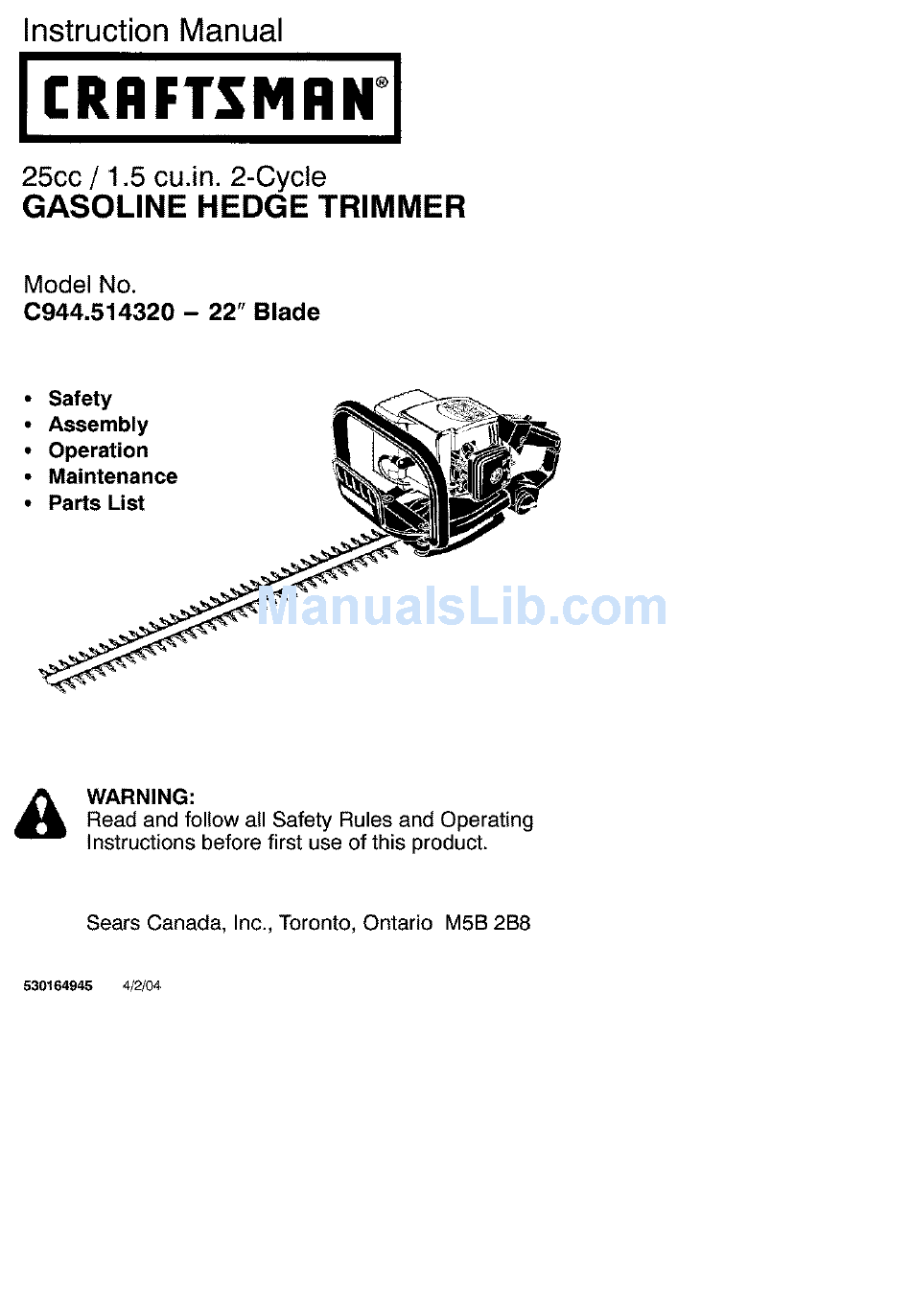

Instruction Manual
25cc / 1.5 cu.in. 2-Cycle
GASOLINE
HEDGE TRIMMER
Model No.
0944.514320
- 22" Blade
•
Safety
•
Assembly
•
Operation
•
Maintenance
•
Parts List
WARNING:
Read and follow all Safety
Rules and Operating
Instructions
before first use of this product.
Sears Canada,
Inc., Toronto,
Ontario
M5B 2B8
530164945
4/2/04
