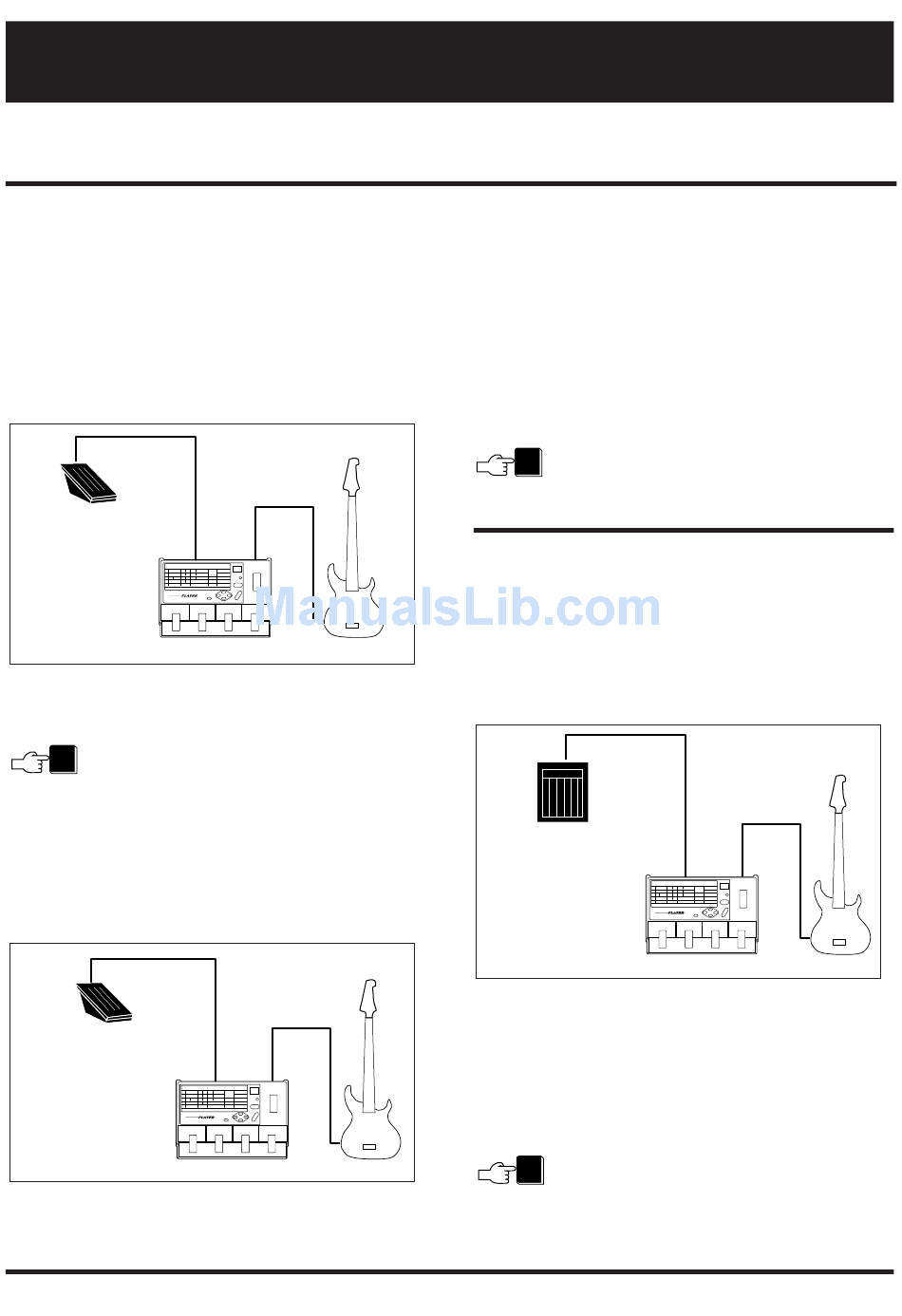

Application Examples for Use of Foot Pedal and Foot Switch

The optional foot pedal FP01 and foot switch FS01 allow easy volume control and mode switching during a
performance.

Using the FP01

The optional foot pedal FP01 can serve to operate the
volume control or WAH function of the 2020 and to switch
effects.
• Using the FP01 to Control the Volume
• Connect the FP01 to the CONTROL IN VOLUME
jack of the 2020.
FP01
CONTROL IN VOLUME
ZOOM
• In the Play mode of the 2020, use the foot pedal while
playing the instrument.
The general volume control of the 2020 is
NOTE
independent of the individual patch level settings.
Since the level is adjusted between the EQ module
and the MODULATION module, operating the
volume control does not affect reverberation.
• Using the FP01 for Pedal Wah
• Turn off the 2020, and connect the FP01 to the
CONTROL IN MANUAL/WAH jack of the 2020.
FP01
CONTROL IN MANUAL/WAH
• Turn on the 2020 and select the effect type WAH in the
EQ module.
INPUT
2020
INPUT
ZOOM
2020
The action of the FP01 depends on the SENS parameter
setting of the WAH effect.
• If SENS is set to 0 (zero)
The auto wah function of the effect is turned off, and the
FP01 operates as a pedal wah.
• If SENS is not set to 0 (zero)
The FP01 varies the auto wah SENS parameter between 0
and 10. This means that the FP01 acts as an auto wah
controller.
When connecting the FP01 to a CONTROL IN jack,
NOTE
use the EXP. OUT connector of the FP01.

Using the FS01

The optional foot switch FS01 can be used to switch
between the normal Play mode and the Manual mode where
effects can be individually switched on and off.
• Turn off the 2020, and connect the FS01 to the
CONTROL IN MANUAL/WAH jack of the 2020.
FS01
CONTROL IN MANUAL/WAH
• Turn on the 2020 and select the patch.
• Push the FS01 once.
This switches the 2020 to the Manual (Edit) mode. The
on/off status of individual effect modules can now be
controlled with the BANK pedal and pedals 1 - 4.
In Manual mode, selecting patches is not possible.
NOTE
• Push the FS01 once more.
INPUT
ZOOM
2020
19
