Philips Lightolier E3 Series Specification

G
ENERAL
E3112WS92SD2
E3112WPT86W2
13.01"
(33.05 cm)
14.53"
(36.91 cm)
11.87"
(30.15 cm)
(17.37 cm)
5.0"
(12.7 cm)
D T
UTY HERMOPLASTIC
Features

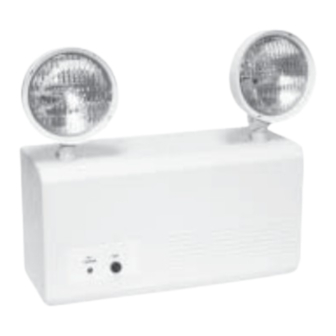

Illumination: Illumination
is accomplished with up to
three lamp heads mounted
on the top of the unit. Most
often specified is Lightolier's
"S" series rectangular lamp
heads. The "S" series lamp
heads incorporate a high
performance parabolic
reflector with a wedge base
tungsten lamp allowing
maximum spacing between
units along a path of egress.
A complete offering of Par 36
sealed beam tungsten, halogen
or MR16 LED lamp heads are
also available.
Housing: Constructed of
impact-resistant, UL 94 V-0,
5 VA thermoplastic. Mounting
is accomplished by means of
the universal j-box mounting
pattern or the keyhole
knockouts provided on the
6.84"
rear of the housing. The cover
assembly closes and remains
secure via a snap-fit design
and offers tool-free access to
the housing interior. White or
black housing and lamp head
colors are available.
E3 Series
E
MERGENCY
Operating Temperature
Range: Standard Location:
65°F (19°C) to 85°F (30°C)
Damp Location: 32°F (0°C) to
104°F (40°C)
Non-Diagnostic
Electronics: Standard
electronics systems include
a 120/277 VAC dual tap
input transformer. Standard
electronic performance
features include AC line latch,
brownout detection, and
low-voltage battery disconnect
circuitry to maximize battery
service life.
Self-Diagnostics
Electronics: Charging system
is microprocessor driven with
software embedded diagnostic
routine and temperature
compensation. 120/277 VAC
input, surge protection,
brownout, AC lockout, and
low voltage disconnect features
are standard.
Job Information Type:
Job Name:
Cat. No.:
Notes:
L
IGHTING
Page 1 of 2
Self-Testing Diagnostics
(optional): The diagnostic/
charging platform with self-
testing mode automatically
runs a one-minute self-test
every 30 days and a 30-minute
test on the sixth and twelfth
month. A one-minute or
90-minute test may be initiated
via the push to test switch on
the unit or by activating the
appropriate test command on
the optional IR test device.
Code Compliance
UL 924 listed. NFPA 101,
NEC, BOCA, OSHA and
IBC illumination standards.
Optional UL damp location
listing available (SD2 models
only) 0°C to 40°C.
Warranty
Three year full electronics
warranty. One year full plus
four year prorated lead calcium
battery warranty. Five year full
plus five year prorated nickel
cadmium battery warranty.
