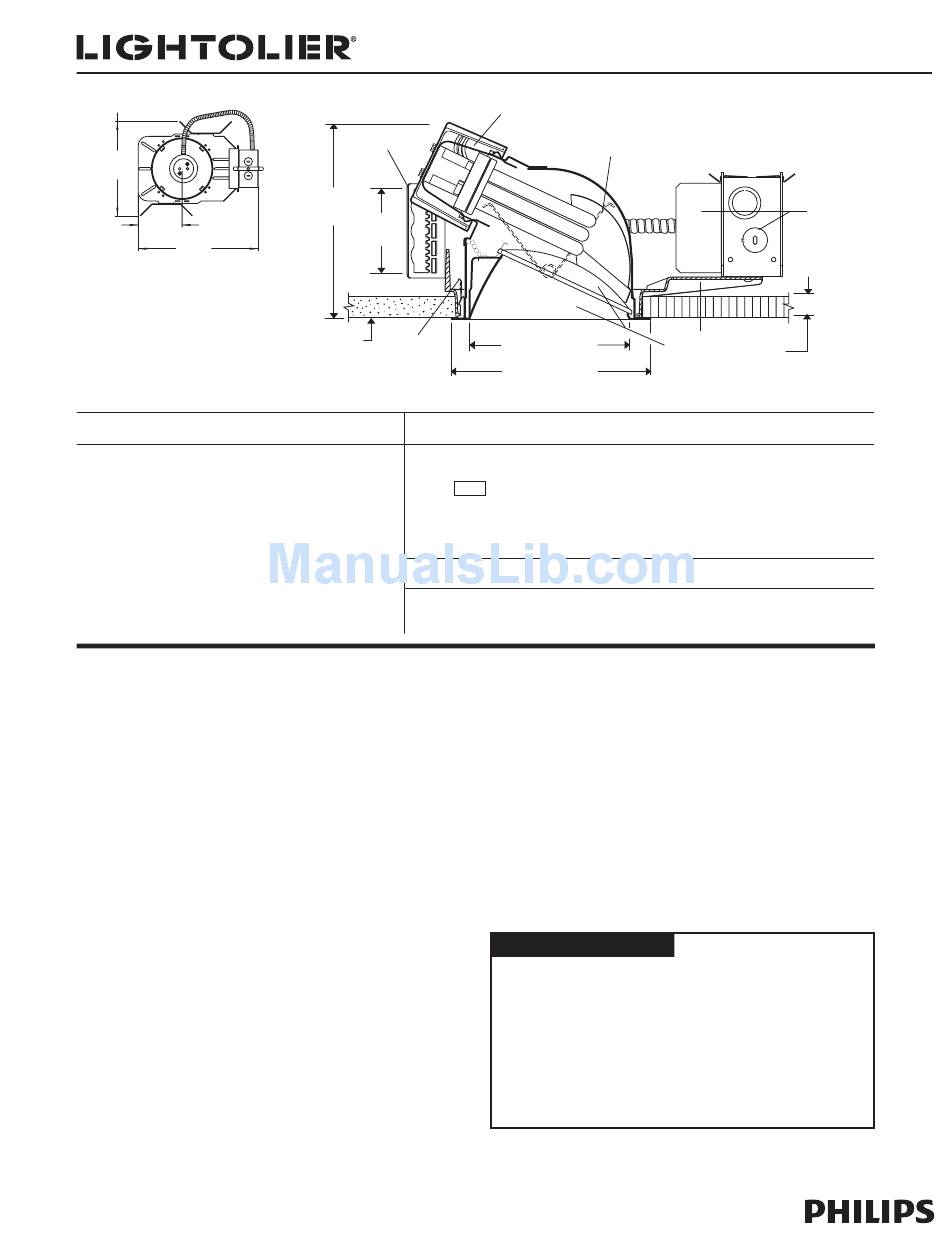

Philips Calculite 8046 Specification

Page 1 of 2
13 3/8"
10"
(340 mm)
(254mm)
5"
(127 mm)
4 5/8"
(117mm)
12 3/4"
(324mm)
Reflector Trim
8046CLW Clear Iridescence Free, White Flange
8046CLP Clear Iridescence Free, Polished Flange
8046
Add suffix. See options for other finishes.
Features
1. Optics: Directional prismatic glass spread lens and Alzak
direct light smoothly across and down wall. Rotates for correct orientation.
Aperture cone with Iridescence Free finish.
2. Socket Cup: Effectively dissipates heat and positions lamp holder. Snaps
onto reflector neck to assure consistently correct optical alignment without
tools.
3. Mounting Frame: Galvanized steel for dry or plaster ceilings. Accepts other
6" Triple Tube reflectors (see S6132BU Spec Sheet).
4. Retaining Springs: Precision-tooled steel friction springs secure reflector to
mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or 1
1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast/J-Box: Electronic 120V-277V. UL listed for through branch circuit
wiring with max of (8) No. 12AWG, 90°c supply conductors. Outboard mounted
to reduce heat transfer and maintain lamp efficacy and life.
Service from below without tools.
7. Torsiontite Springs: Wire formed steel holds reflector/spread lens assembly
snug to housing.
Electrical
Note: For ballast electrical data and latest lamp/ballast compatibility refer to
"Ballast" specification sheet for complete electrical data.
UL listed for through branch circuit wiring with max of (8) No. 12 AWG, 90° C
supply conductors.

Options and Accessories

Comfort Clear Finishes
™
Clear CCL
CCD
Diffuse
CCZ
Champagne Bronze
Specify desired flange. W White, P Polished, Blank - Molded Ring
1
Lightolier is a Philips group brand
5
6 3/4"
(172 mm)
3"
10"
(76 mm)
(254 mm)
11 1/8"
(283 mm)
Top View
1" (25 mm) min.-
2-1/8" (54 mm) max.
"kick" reflector
®
Other Finishes
1
White WH
Calculite CFL Lensed Wall Washer
®
2
4
5 3/4" (146 mm) Dia.
7" Self-Flanged Trim
(178 mm)
Frame-In Kit
S6132BU 6" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Dimming Options:
S6132B
CU3 Lightolier PowerSpec 3% Dimming (120/277V) J1LD3 Lutron 5% Dimming (120V)
J2LD3 Lutron 5% Dimming (277V)
J1MX
Mark 10 Dimming (120V)
Other dimming product available, please consult factory
Remodeler Frame-In Kits
6126BURM 6" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
6132BURM 6" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Options and Accessories (continued)
Emergency
Chicago Plenum
Existing/Thk. Ceiling
Emergency Ltg. Kit
Fuse (slow blow)
*See Spec. Sheets: FAEC, FAEM
Mounting Bars & Accessories; see Specification Sheet MBA.
Sloped Ceiling Adapters; see Specification Sheet SCA.
IC Frame available; see C6CFL32 specification sheet.
Labels
UL listed for damp locations.Alzak
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • C0711
6" Aperture Triple Tube Vertical Lamp
7
3
1 1/8" (29 mm) max.
1
Ceiling Thickness
JUM7 Mark 7 Dimming (120/277V)
J2MX Mark 10 Dimming (277V)
Add suffix EM*
Use 6132BULC
FA EC6*
FA EM3E*
FA EM4E*
Add suffix F
is a registered trademark of ALCOA.
®
Type:
8046
6
