Philips AW5000 User Manual

Wireless hi-fi speaker
Hide thumbs Also See for AW5000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

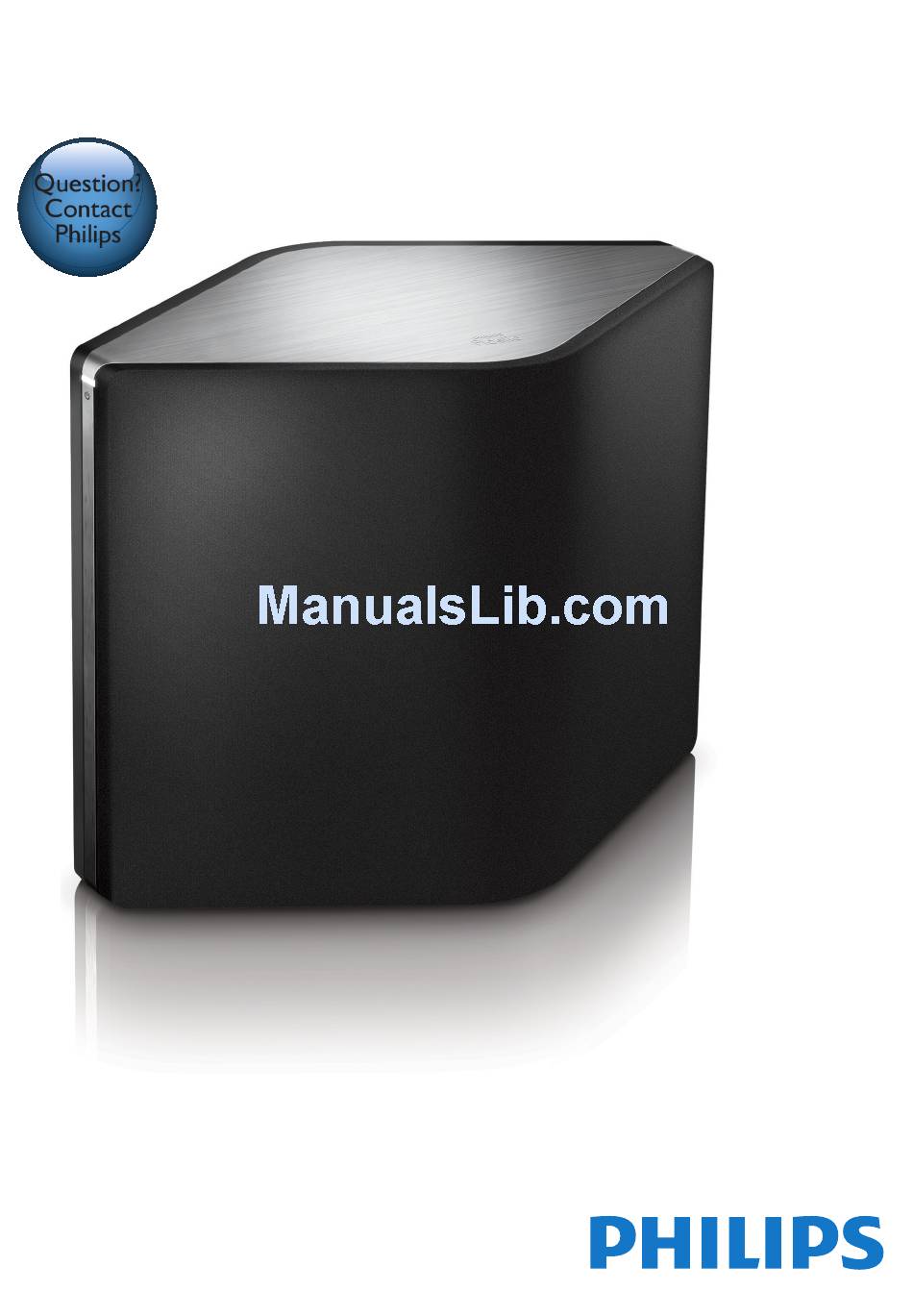

Always there to help you
Register your product and get support at
www.philips.com/welcome
Question?
Contact
Philips
User manual
AW5000

Advertisement

Table of Contents
loading

Related Manuals for Philips AW5000

Summary of Contents for Philips AW5000

  • Page 1 Always there to help you Register your product and get support at www.philips.com/welcome AW5000 Question? Contact Philips User manual...

  • Page 3: Table Of Contents

    LED colors What's in the box What else you need Overview of the main unit 3 Prepare Download Philips AirStudio to your smartphone or tablets Connect power and switch on 4 Connect AW5000 to your home Wi-Fi network...

  • Page 4: Important

    1 Important i Do not expose the product to dripping / splashing water, rain or high humidity. j Keep this product away from direct sunlight, naked flames or heat. k Do not install near any heat sources Safety such as radiators, heat registers, stoves, or other electrical equipment (including amplifiers).

  • Page 5: Notice

    Environmental information Notice All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by This product complies with the radio a specialized company.

  • Page 6: Your Wireless Hi-Fi Speaker

    PC/Mac enabled at www.philips.com/welcome. with Wi-Fi If you contact Philips, you will be asked for the • the Philips AirStudio app available on model and serial number of this apparatus. The Apple App Store (for iOS devices) model number and serial number are on the or Google Play Store (for Android bottom of the apparatus.

  • Page 7: Overview Of The Main Unit

    e ETHERNET Overview of the main unit • (Optional) Connect to a wireless router through an Ethernet cable (not supplied). f MP3-LINK • Connect an external audio player through an MP3 link cable (not supplied). g WI-FI SETUP button • Connect the device to a Wi-Fi network.

  • Page 8: Prepare

    Download Philips AirStudio to your smartphone or tablets (For iPod touch/iPhone/iPad users) Install Philips AirStudio from Apple App Store, and then run the app. Flick right to view the introduction pages and then go to the initial Setup page, or tap Skip intro to enter the initial Setup page directly.

  • Page 9: Connect Power And Switch On

    On the initial Setup page, tap Setup a new Connect power and switch speaker. Caution • Risk of product damage! Make sure that the power supply voltage matches the voltage printed on the bottom of the device. • Risk of electric shock! When you unplug the AC cord, always pull the plug from the socket. Never pull the cord.
  • Page 10 Connect the AC power cord to: • To switch the device on from normal or • the AC IN ~ socket on the back of the Eco power standby mode, briefly press the device. power button/indicator above again. • the wall power socket. Operation LED status »...

  • Page 11: Connect Aw5000 To Your Home Wi-Fi Network

    < 30S Once connected successfully, AW5000 will WiFi SETUP remember your home Wi-Fi settings. Then you can play music or listen to Internet radio via Philips AirStudio whenever AW5000 is powered on and connected to your home Wi- < 3S Fi network automatically.
  • Page 12 Philips_Install from the list of available Wi-Fi networks. * If your Wi-Fi password contains such special characters as #/:/;/', you need to change your password. Make sure that your iOS device is connected to Philips_Install, and then go back to Philips AirStudio.

  • Page 13: Option 2: Set Up Through A Non-Wps Wi-Fi Router And Android Device

    Name your speaker as you like, and then tap OK to connect AW5000 to your • home Wi-Fi network. After successful network setup, you can tap Rock n' Roll on the above app screen to get ready for music play directly. For more details, go to the 'Play' section (see 'Play' on page 16). Option 2: Set up through a non-WPS Wi-Fi router and Android device...
  • Page 14 As instructed, briefly press WI-FI SETUP Wait until the speaker is found. on the back of AW5000. » The power/status indicator starts to blink amber and white alternately. » A new Wi-Fi network created by AW5000 will appear, with the network name (SSID) of Philips_Install. <...
  • Page 15 Enter the password of your home Wi-Fi Wait until the power/status indicator on network, and then tap Next. AW5000 turns solid white. » The following app screen appears. » AW5000 is connected to your home Wi-Fi network successfully. * If your Wi-Fi password contains such special characters as #/:/;/', you need to change your password.

  • Page 16: Option 3: Set Up Wireless Connection To A Wps Router

    As instructed, press and hold WI-FI SETUP Option 3: Set up wireless on the back of AW5000. connection to a WPS router » The power/status indicator blinks amber and green alternately. Tap WPS Setup? on the app screen . WiFi SETUP > 4S Press the WPS button on your home Wi-Fi router.

  • Page 17: Option 4: Set Up Wired Connection Through An Ethernet Cable

    Note • If you use wired connection, you just need to select Speaker already setup on the initial Setup page (see 'Download Philips AirStudio to your smartphone or tablets' on page 6). If you have tried wireless connection, before setup of wired connection, you need to reset the wireless Hi-Fi speaker (see 'Troubleshooting' on page 26).

  • Page 18: Play

    Stream from your iOS or Android smartphone or tablet Make sure that your iOS/Android device is connected to the same Wi-Fi network as AW5000. Run Philips AirStudio on your iOS or Android smartphone or tablet. If the following screen does not appear, select Speaker already setup on the initial Setup page.
  • Page 19 To stream music from your PC/Mac to AW5000, you need to install a DLNA certified media sharing software (such as Media Manager available on www.philips.com/mediamanager or Windows Media Player 11+) onto your PC/Mac first. In this way, your PC/Mac can work as a media sharing server that streams music to the...
  • Page 20 Make sure that your iOS/Android device and PC/Mac are connected to the same Wi-Fi network as AW5000. Run Philips AirStudio on your iOS or • It may take longer time for your iOS/Android device to show music from your PC/Mac.

  • Page 21: Listen To Internet Radio Stations Through Aw5000

    If the following message pops up, tap I Listen to Internet radio agree to allow Internet access. stations through AW5000 Run Philips AirStudio on your iOS or Android smartphone or tablet. Tap Services -> Philips AW5000 to enter the home page. Search for an Internet radio station by its name or location, language etc.
  • Page 22 2 to this station, tap the second row. » A message pops up, in which the station name and preset number are shown. Philips AW5000 Preset Internet radio stations Tune to an Internet radio station and tap Tap OK in the message box to confirm. » A list of preset radio stations appears.
  • Page 23 Repeat the above procedures to add more to add the station into your favorite presets. list directly. • You cannot delete a preset radio station directly, but you can replace it with another radio station. For example, if you want to delete a station at preset #3, you can tune to another radio station, tap , and then tap the 3rd row to replace the previous station. To tune to a preset radio station Press numeric keys (1-5) on AW5000 •...

  • Page 24: Play From An External Device

    Tap Services -> Philips AW5000 to enter Play from an external device the home page. You can also listen to an external audio player through the device. Connect an MP3 link cable (not supplied) • the MP3-LINK socket on the back of the device.

  • Page 25: Upgrade Firmware

    Make sure that your home Wi-Fi network is connected to the Internet. Run Philips AirStudio on your iOS or Android smartphone or tablet. Tap OK on the prompt message to start Tap Services -> Philips AW5000 to enter firmware upgrade.
  • Page 26 Wait until the firmware upgrade process If a new firmware is available, tap OK on finishes, then tap OK on the prompt the prompt message to start firmware message to restart the device. upgrade. » The power/status indicator on AW5000 flashes amber during this process. You can also check and upgrade the firmware manually. On the home page, tap -> Firmware upgrade -> Check Online to check for Wait until the firmware upgrade process new firmware.

  • Page 27: Product Information

    7 Product Frequency range 2412 - 2462 MHz (CH1-CH11) (for /79, information /37, /55, /97) 2412 - 2472 MHz (CH1-CH13) (for /12, /10, /05) Note PBC (one button push) • Product information is subject to change without prior notice. General information AC power 100 ~ 240 V, 50/60 Hz Specifications Operation Power 25 W Consumption Power Consumption...

  • Page 28: Troubleshooting

    go to the Philips web site (www. • If you choose to rename your AW5000 philips.com/welcome). When you contact manually on the Philips AirStudio app, do Philips, ensure that the apparatus is nearby not use special characters or symbols. and the model number and serial number are •...
  • Page 29 Occasional breaking of music streaming Do one or all of the following: • Move AW5000 closer to your Wi-Fi router. • Remove any obstacles between AW5000 and your Wi-Fi router. • Avoid using Wi-Fi channel which is overlapped by the nearby Wi-Fi network. •...

  • Page 30: Appendix 1: Mount The Device Onto Wall

    9 Appendix 1: Find a suitable place on a wall and use a pencil to mark the chosen location with Mount the your purchased bracket. Follow the instructions supplied with the device onto wall purchased bracket to drill holes as marked. Caution •...

  • Page 31: Appendix 2: Understand Meanings Of Led Colors

    10 Appendix 2: Understand meanings of LED colors LED color Meaning Blinking The speaker is booting up or amber firmware upgrade is in progress. Solid The speaker is not connected to amber any network. White The speaker is in wireless setup mode, assisted by the AirStudio amber app.
  • Page 32 Specifications are subject to change without notice © 2013 Koninklijke Philips Electronics N.V. All rights reserved. AW5000_10_UM_V2.0...
