- Page 1 CABINET PARTS 48" BUILT IN For Model: KSSS48FTX02 REFRIGERATOR (Etched Aluminum) 12−07 Litho In U.S.A. (jdc) Part No. W10175515 Rev. A...
-

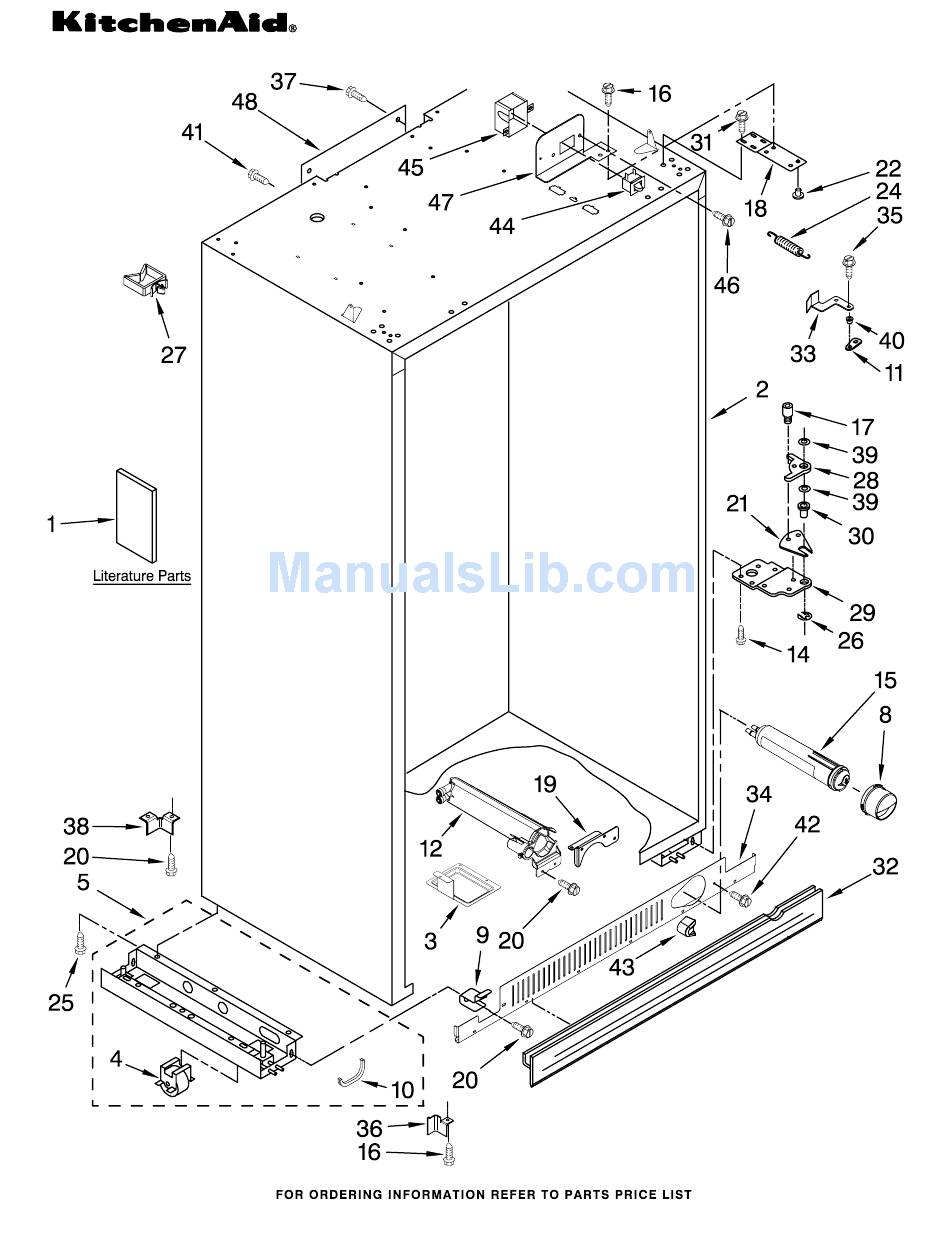

Page 2: Cabinet Parts
CABINET PARTS For Model: KSSS48FTX02 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Grille Bottom, 489399 Screw Literature Parts Front 3400230 Screw, Door Stop W10161714 Use & Care Guide 2325186B Black 2257644 Hinge (Top) W10164076 Energy Guide 2005921 Screw 2318190 Bracket, Mount W10159831 Service &... - Page 3 CABINET TRIM PARTS For Model: KSSS48FTX02 (Etched Aluminum) Illus. Part DESCRIPTION 1 W10132472 Cabinet, Trim (Right Side) 1163283 Screw 2316688 Cabinet, Trim (Bottom) 486194 Screw 2314018 Cabinet, Trim Top 7 W10132541 Cabinet Trim (Left Side) 3400235 Screw (4) 2005925 Seal−Trim, Side 10 W10121451 Nutsert (4) W10175515...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSS48FTX02 (Etched Aluminum) Illus. Part DESCRIPTION 2302869 Wire, Shelf (2) 2302872 Cover, Shelf 2302884 Shelf, Fixed (2) 2259083 Basket 2256271 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 2266935 Door, Ice 2266932 Bucket, Ice 2266955 Spacer W10175515... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSS48FTX02 (Etched Aluminum) W10175515... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSS48FTX02 (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 4 W10169386 Gasket−Baffle 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Air Baffle 2221296 Baffle, Control Assembly 2171846 Release Valve...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Model: KSSS48FTX02 (Etched Aluminum) Illus. Part DESCRIPTION 2307587 Control Box 2310164 Wire, Jumper 2324973 Bracket, Control Box 2307596 Shield, Light 487539 Screw 2317000 Clip, Control Box 2306086 Display Board, Ingredient Care Center 2223857 Socket, Light 2326255 Light Bulb 8281185 Screw W10175515... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSS48FTX02 (Etched Aluminum) Illus. Part DESCRIPTION 2316826S Top, Grille Assy 2 W10161693 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 2310194 Wire Assembly RC/FC Light Switch 2317923S Nameplate 489348 Clamp 2003347 Tee Bolt (4)
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSS48FTX02 (Etched Aluminum) W10175515... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSS48FTX02 (Etched Aluminum) Illus. Part DESCRIPTION 2222593 Shelf Assy (4) 2256250 Trim, Glass Side Meat Pan 2179404 Rack, Wine 2302843 Meat Pan Cover Assembly 2302836 Crisper Cover Assembly 2257583 Trim, Glass Rear 2252413 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side 2302955 Right Side...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSS48FTX02 (Etched Aluminum) W10175515...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSS48FTX02 (Etched Aluminum) Illus. Part DESCRIPTION 2259385 Fan Motor 2169142 Fan Blade 2223733 Retainer, Fan Motor 2302817 Gasket, Cover 2223986 Grommet 486194 Screw 2259464 Wedge, Air Duct 488500 Screw, Ground 2223857 Socket, Light (2) 488937 Clamp, Nylon 2326255 Light Bulb 2182120 Scroll, Fan...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSS48FTX02 (Etched Aluminum) W10175515... - Page 14 REFRIGERATOR DOOR PARTS For Model: KSSS48FTX02 (Etched Aluminum) Illus. Part DESCRIPTION 2252331 Refrigerator Door (Includes #9) 2266854 Hinge Assembly, 2316804 Spacer−Door, Top & Bottom 489282 Screw 2302878 Hinge Assembly, Bottom 2222797 Rail, Lid 2222983 Gasket, Utility 2222812 Door Gasket, Magnetic 2316842S Handle, Door 2001230 Washer Screw, 8−15 x .500...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSS48FTX02 (Etched Aluminum) W10175515... - Page 16 FREEZER DOOR PARTS For Model: KSSS48FTX02 (Etched Aluminum) Illus. Part DESCRIPTION 2252328 Freezer Door (Includes #14) 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2316804 Spacer−Door, Top & Bottom 2222810 Door Gasket, Magnetic 2316844S Handle, Door 2001230 Washer Screw 8281250 Stainless Steel 2005027 Trim−Door, Top 2215986S Trim−Door, Bottom 2005964 Trim−Door, Side...
- Page 17 UPPER UNIT PARTS For Model: KSSS48FTX02 (Etched Aluminum) W10175515...
- Page 18 UPPER UNIT PARTS For Model: KSSS48FTX02 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 487522 Screw 1 W10133449 Inverter Box 2155774 Wire Tie 489373 Screw, Compressor Following Parts Not Illustrated 2317982 Drier Mounting (4) and Optional Parts Not Included 2310207 Wire Assembly 2302967 Compressor (Condenser Fan)
- Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSS48FTX02 (Etched Aluminum) W10175515...
- Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSS48FTX02 (Etched Aluminum) Illus. Part DESCRIPTION 486194 Screw 2 W10157752 Bracket 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assembly 6 W10151288 Cover, Wiring 7 W10153595 Cover, Box 2307690 Tube, Discharge 2306094 Evaporator 10 W10140162 Heater, Defrost 1113048 Clamp, Heater (2)
-
Page 21: Icemaker Parts
ICEMAKER PARTS For Model: KSSS48FTX02 (Etched Aluminum) W10175515... - Page 22 ICEMAKER PARTS For Model: KSSS48FTX02 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2257538 Cover 488500 Screw 1 W10129653 Shield, Valve 2313990 Shut Off Arm 626691 Module Assembly 2259064 Cover, Fill Tube 20 W10122527 Mold & Heater (Includes Items Heater (Also Order...
