KitchenAid KEBS207DBL7 Parts List

30" built-in electric double oven thermal convection-upper self-clean
Hide thumbs


Advertisement

Quick Links

OVEN PARTS

For Models: KEBS207DBL7, KEBS207DWH7, KEBS207DBT7
(Black)
(White)
(Biscuit)
30" BUILT-IN ELECTRIC
DOUBLE OVEN
THERMAL CONVECTION-UPPER
SELF-CLEAN
5-99 Litho in U.S.A.(rle)
1
Part No. 885469

Advertisement

loading

  Related Manuals for KitchenAid KEBS207DBL7

  Summary of Contents for KitchenAid KEBS207DBL7

  • Page 1: Oven Parts

    OVEN PARTS For Models: KEBS207DBL7, KEBS207DWH7, KEBS207DBT7 (Black) (White) (Biscuit) 30" BUILT-IN ELECTRIC DOUBLE OVEN THERMAL CONVECTION-UPPER SELF-CLEAN 5-99 Litho in U.S.A.(rle) Part No. 885469...

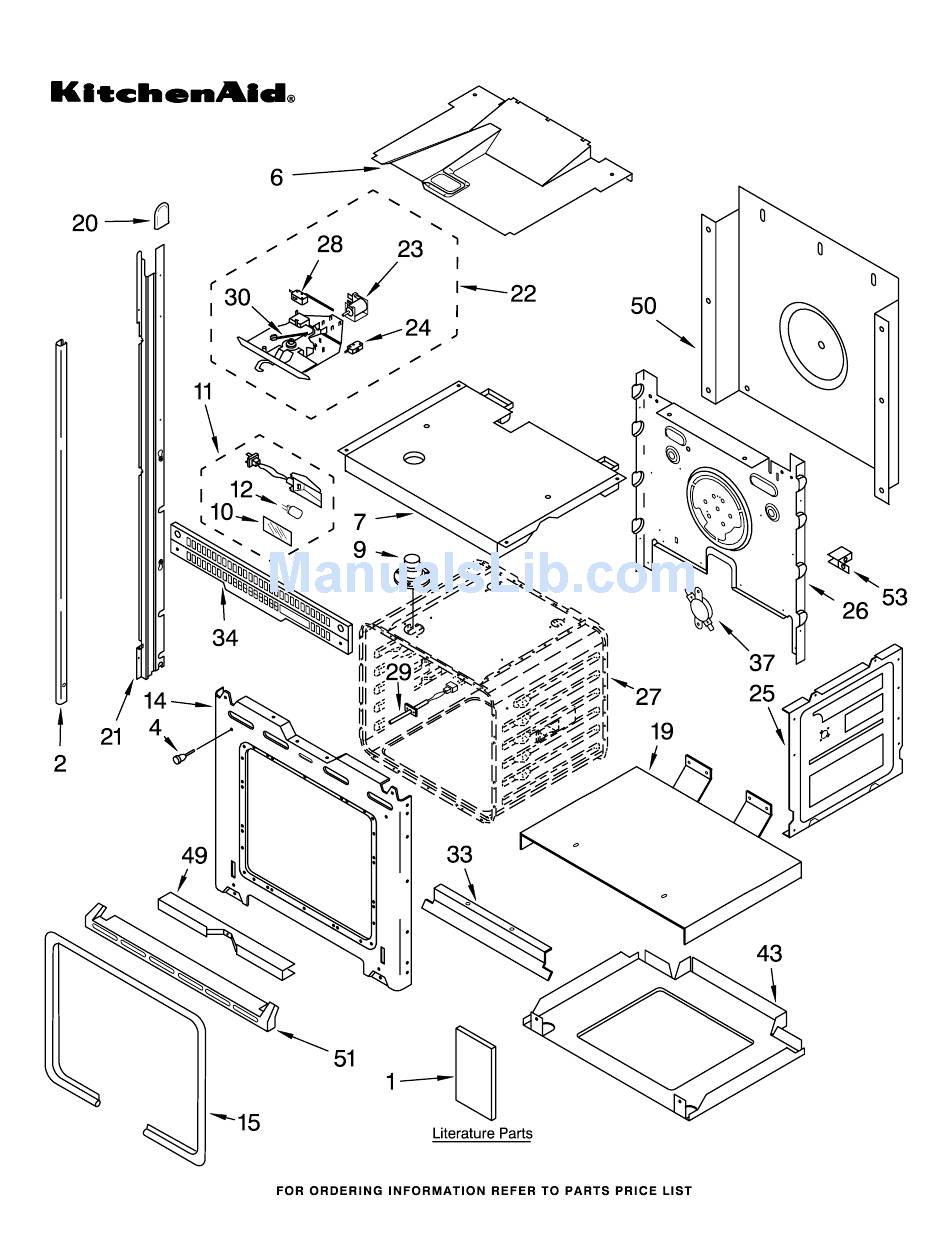

  • Page 2 OVEN PARTS For Models: KEBS207DBL7, KEBS207DWH7, KEBS207DBT7 (Black) (White) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4451665 Sensor 4452158 Tube, Vent 4449154 Screw NOTE: The screws and nuts 4449154 Screw 4451537 Spring, Latch required to attach a part are 4452163 Lens, Light 4451619 Deflector, Vent listed immediately following...
  • Page 3: Control Panel Parts

    CONTROL PANEL PARTS For Models: KEBS207DBL7, KEBS207DWH7, KEBS207DBT7 (Black) (White) (Biscuit) Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. Control Panel Assy. W/Membrane Switch 4451946 Black 4451947 White 4451948 Biscuit 3400832 Screw 4451034 Gasket, Control Panel...
  • Page 4: Oven Door Parts

    OVEN DOOR PARTS For Models: KEBS207DBL7, KEBS207DWH7, KEBS207DBT7 (Black) (White) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4449263 Glass, Inner 4450362 Shield, Heat NOTE: The screws and nuts Door Glass, Assy 4449809 Screw required to attach a part are 4452074 Black 4451668 Retainer, Glass listed immediately following...
  • Page 5 INTERNAL OVEN PARTS For Models: KEBS207DBL7, KEBS207DWH7, KEBS207DBT7 (Black) (White) (Biscuit) Illus. Part DESCRIPTION 4452156 Element, Broil 4449154 Screw 3147563 Grill, Broiler 3147845 Pan, Broiler 3181534 Rack, Roasting 4448717 Rack, Oven 4452155 Element, Bake 4448881 Nut, Hex 4451583 Convection Motor 4449154 Screw 4452226 Blade, Fan 4448882 Washer, Lock...
  • Page 6 TOP VENTING PARTS For Models: KEBS207DBL7, KEBS207DWH7, KEBS207DBT7 (Black) (White) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4452244 Back, Control 4451929 Transformer, Control NOTE: The screws and nuts 4449809 Screw 4449809 Screw required to attach a part are 4451438 Elbow, Vent-Top 4450551 Cover, Top Rear listed immediately following...
  • Page 7: Optional Parts

    OPTIONAL PARTS For Models: KEBS207DBL7, KEBS207DWH7, KEBS207DBT7 (Black) (White) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION WIRING HARNESS PARTS SPLICING WIRES--25FT. PAINT, TOUCH-UP (1/2oz.) LENGTH 4451926 Harness, Wire 72017 White (Latch) 261869 Cord Brown 242828 Wire (12 Ga. 4451863 Harness, Wire 72032 Black 150 c Black)
