KitchenAid KEBS207DAL6 Parts List

30" built-in electric double oven thermal convection-upper self-clean
Hide thumbs

Advertisement

Quick Links

Advertisement

loading

  Related Manuals for KitchenAid KEBS207DAL6

  Summary of Contents for KitchenAid KEBS207DAL6

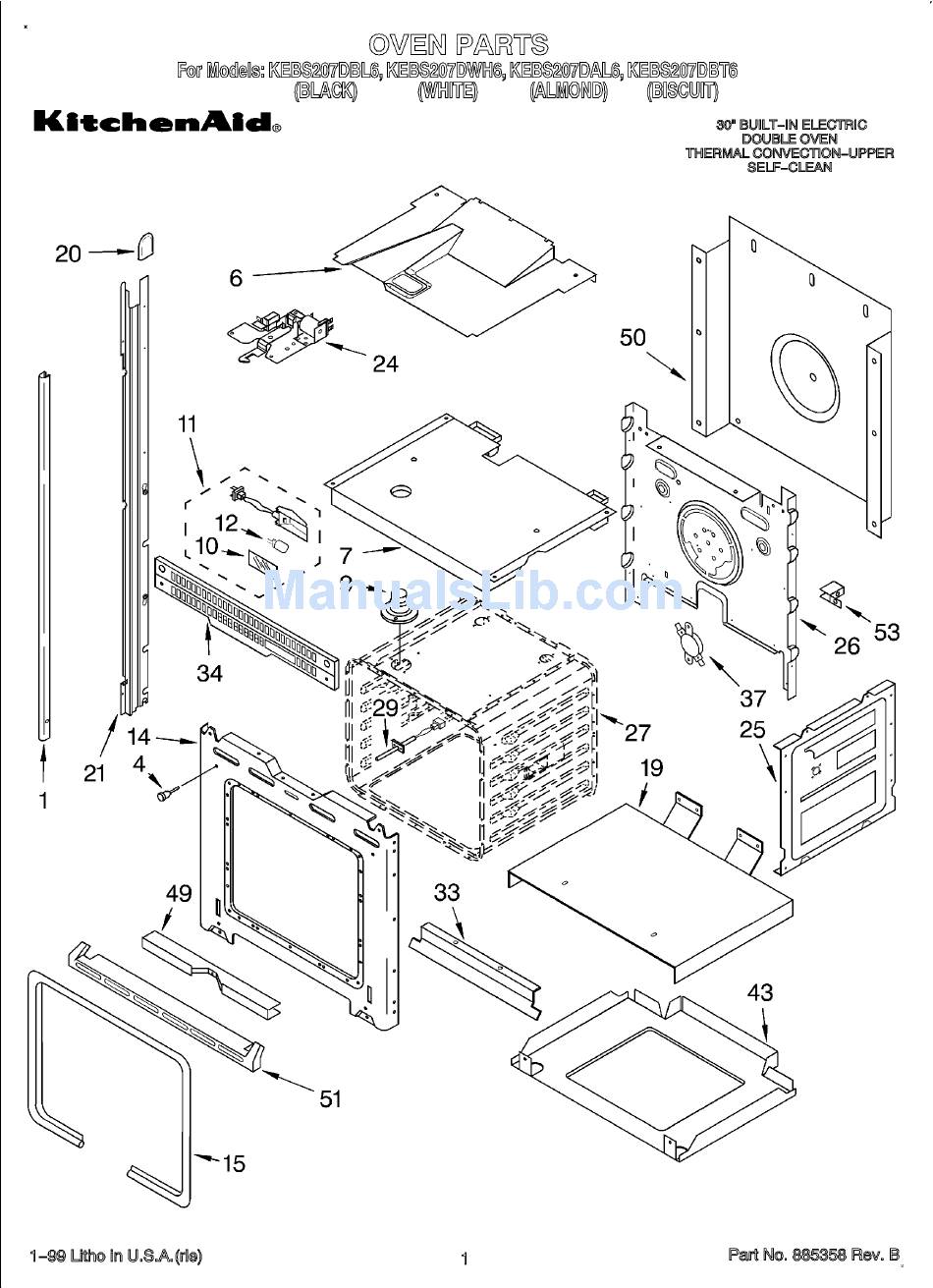

  • Page 2 Trim, Side 4450850 RH Black 4450851 RH White 4450852 RH Almond 4452122 RH Biscuit 4450853 LH Black 4450854 LH White 4450855 LH Almond 4452123 LH Biscuit Screw 4449747 Black Model 4449041 White, Almond & Biscuit 4448520 Bumper, Door 4452201 Divider, Vent 4449809 Screw 4452237...
  • Page 3 4449809 Screw Trim, Bottom 4448477 Black Model 4448478 White Model 4448862 Almond Model 4452415 Biscuit Model 4159465 Screw 4449845 Support, Bracket 4449809 Screw FOLLOWING PARTS NOT ILLUSTRATED INSULATION 4449316 Insulation, Wrap 4450365 Insulation, Back...
  • Page 5 NOTE: The screws and nuts required to attach a part are listed immediately following that part. Control Panel Assy. W/Membrane Switch 4451294 Black Model 4451295 White Model 4451296 Almond Model 4451298 Biscuit Model 4159465 Screw 4451034 Gasket, Control Panel 4448871 Microcomputer 4449745 Screw...
  • Page 7 NOTE: The screws and nuts required to attach a part are listed immediately following that part. 4451719 Door Liner 4454947 Hinge, Door 4449743 Screw 4449259 Glass, Inner 4451722 Insulation, Door 4451671 Retainer, Glass 4449809 Screw 4449263 Glass, Inner Door Glass, Assy 4452074 Black Model 4452075...
  • Page 9 4452156 Element, Broil 4449154 Screw 3147563 Grill, Broiler 3147845 Pan, Broiler 3181534 Rack, Roasting 4448717 Rack, Oven 4452155 Element, Bake 4448881 Nut, Hex 4451583 Convection Motor 4449154 Screw 4452226 Blade, Fan 4448882 Washer, Lock 4452227 4451355 Jack, Meat Probe 4448948 Probe, Meat 4448723 Tray, Bake...
  • Page 11 NOTE: The screws and nuts required to attach a part are listed immediately following that part. 4451759 Vent, Exhaust 4451758 Foam, Block 6610168 Blower (Upper & Lower) 4449809 Screw 6610122 Transformer, (Lights) 4449809 Screw 4451789 Plate, Mounting 4451658 Transformer, Control 4449809 Screw 4451438...
  • Page 12: Wiring Harness Parts

    242823 Wire (14 Ga. 150 c Green) 242824 Wire (14 Ga. 150 c Orange) 242829 Wire (12 Ga. 150 c Red) 242825 Wire (14 Ga. 150 c Red) 242831 Wire (14 Ga. 200 c Red) 242826 Wire (14 Ga. 150 c White) 242827 Wire (14 Ga.

This manual is also suitable for:

Kebs207dbl6Kebs207dbt6Kebs207dwh6
