CABINET PARTS
REFRIGERATOR
For Model: KSSS36DAW04
Part No. 4379204
11−93 Litho In U.S.A.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS36DAW04 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KitchenAid KSSS36DAW04

  • Page 1 CABINET PARTS REFRIGERATOR For Model: KSSS36DAW04 Part No. 4379204 11−93 Litho In U.S.A.
  • Page 2: Cabinet Parts

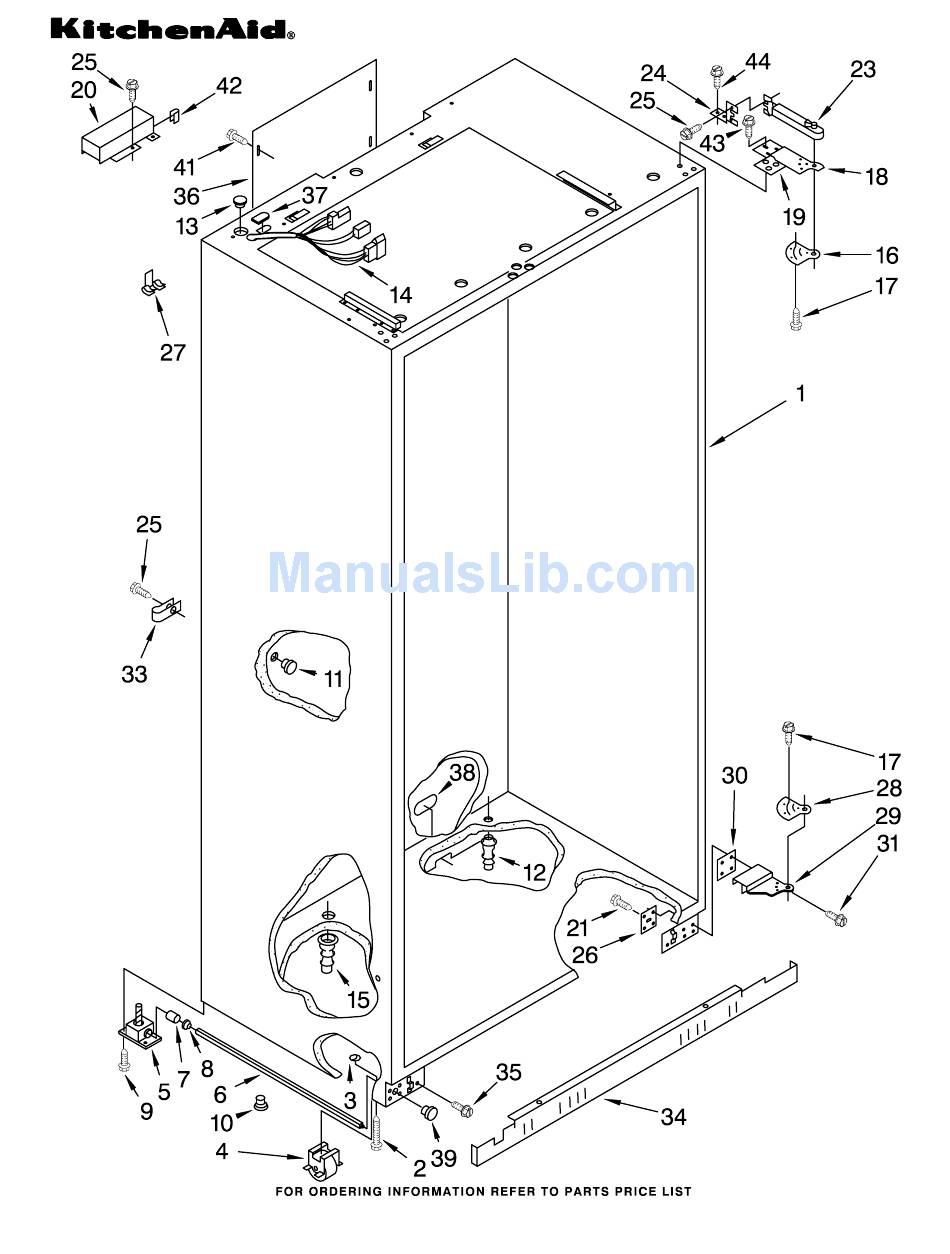

    CABINET PARTS For Model: KSSS36DAW04 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Gap, Cover Gap, Cover Cabinet (Not A Assembly (Bottom) Assembly (Top) Serviceable Part) 2001200 Left Side 2000305 Left Side 2 1112019 Leveler, Front (2) 2000304 Right Side 2001199 Right Side 3 1113249...
  • Page 3 CABINET TRIMS AND BREAKER TRIM PARTS For Model: KSSS36DAW04 4379204...
  • Page 4 CABINET TRIMS AND BREAKER TRIM PARTS For Model: KSSS36DAW04 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 9 2001390 Cabinet, Trim R.S 14 2001387 Cabinet, Trim Top 1 2000650 Breaker Trim & 2001391 Cabinet, Trim L.S 15 2000007 Retainer, Unit Retainer Assembly 11 2001297 Screw...
  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KSSS36DAW04 4379204...
  • Page 6 REFRIGERATOR LINER PARTS For Model: KSSS36DAW04 Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 2 1112591 Spacer, Control Panel (3) 843436 Grommet, Screw (3) 5 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw, 8 x 1−1/4 (8) 486194 Screw, 8 x 1/2 9 1112257...
  • Page 7: Freezer Liner Parts

    FREEZER LINER PARTS For Model: KSSS36DAW04 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 538533 Support Clip, Icemaker (2) 7 2000193 Grommet, Screw (2) 488552 Screw, 10−12 x 3/8 (2) 992720 Stud, Support (4) 486194 Screw, 8 x 1/2 13 1112591 Spacer, Control Panel (3) 842534...
  • Page 8 FREEZER CONTROL PANEL PARTS For Model: KSSS36DAW04 Illus. Part DESCRIPTION 1 1112595 Control Panel 2 1113963 Inlay, Control Panel 3 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 851387 Switch, Rocker Arm (Dispenser Motor) 6 1113132 Seal, Control Panel 489260 Screw (3) 9 2000153 Hole Plug (3)
  • Page 9: Freezer Shelf Parts

    FREEZER SHELF PARTS For Model: KSSS36DAW04 Illus. Part DESCRIPTION 1 1112365 Solid Shelf 2 2000885 Front, Ice Compartment 3 1113564 Shelf, Fixed (2) 1113636 Shelf, Deep 2001551 Basket 5 1113642 Trim, Basket 15 1113870 Roller 1113871 Eyelet, Roller 489211 Screw, 10−16 x 3/4 488307 Washer 22 2000061...
  • Page 10 REFRIGERATOR CONTROL PANEL PARTS For Model: KSSS36DAW04 Illus. Part DESCRIPTION 1 1112640 Control Panel 2 2000974 Inlay, Control Panel 3 2000789 Circuit Board 4 1116853 Control Knob 837444 Retainer, Knob 6 1108112 Switch, Rocker Arm 7 1113133 Seal, Control Panel 489260 Screw (3) 9 2000153...
  • Page 11: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSSS36DAW04 4379204...
  • Page 12 REFRIGERATOR SHELF PARTS For Model: KSSS36DAW04 Illus. Part DESCRIPTION 1 1113542 Frame, Shelf 2 1112297 Glass, Shelf 3 1113546 Reflector, Shelf 4 1113790 Gasket, Glass (2) 5 1125913 Rack, Wine 7 1113550 Frame, Assembly 9 1113893 Cover, Crisper 10 2000154 Glass, Crisper 11 2000742 Meat Pan,...
  • Page 13: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSSS36DAW04 4379204...
  • Page 14 REFRIGERATOR DOOR PARTS For Model: KSSS36DAW04 Illus. Part DESCRIPTION 1 2000693 Door Panel, Refrigerator (Also Order Item 29) 939101 Screw Anchor (8) 3 2000696 Hinge Assembly, 4 2001396 Spacer 489282 Screw 6 2000698 Hinge Assembly, Bottom 7 1112533 Gasket Retainer, Side (2) 8 1112539 Gasket Retainer,...
  • Page 15: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSSS36DAW04 4379204...
  • Page 16 FREEZER DOOR PARTS For Model: KSSS36DAW04 Illus. Part DESCRIPTION 1 2001136 Exterior Door Panel, Freezer (Includes Insulation) 2 1112997 Tube, Wiring 3 1112928 Retainer, Tube 6 2000720 Hinge, Bottom 489282 Screw 2000721 Hinge, Top 9 2001396 Door Spacer 2001031 Overlay, Shelf 11 2001323 Wiring Harness, Freezer Door...
  • Page 17 DISPENSER AND FRONT PARTS For Model: KSSS36DAW04 4379204...
  • Page 18 DISPENSER AND FRONT PARTS For Model: KSSS36DAW04 Illus. Part DESCRIPTION 1 1124715 Housing, Dispenser 987049 Bracket, Water Fitting 3 2155020 Water Fitting Assembly (Includes Water Tube) 487916 Screw, 8 x 3/8 Water Tube (See Item #3) 488316 Screw, 8−18 x 3/4 987048 Grommet 11 2001334...
  • Page 19 UPPER UNIT PARTS For Model: KSSS36DAW04 4379204...
  • Page 20 UPPER UNIT PARTS For Model: KSSS36DAW04 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 2000681 Assembly, Unit 18 1113019 Clamp (4) 45 2001077 Wiring Harness, Base 487522 Screw, Unit Compartment 2 1113386 Assembly, Sound 8−32 x 5/8 (4) 486899 Screw Barrier...
  • Page 21 LOWER UNIT AND TUBE PARTS For Model: KSSS36DAW04 4379204...
  • Page 22 LOWER UNIT AND TUBE PARTS For Model: KSSS36DAW04 Illus. Part DESCRIPTION 1 2000528 Defrost Bi−Metal 2 1113043 Clamp, Bi−Metal 486194 Screw, 8 x 1/2 4 1113293 Tube, Connect (Suction) 5 1113209 Tube, Connect (Discharge) 6 1113296 Tube, Flow Divider (2) 7 1113292 Valve, Fluid Control...
  • Page 23 AIR FLOW AND RESERVOIR PARTS For Model: KSSS36DAW04 4379204...
  • Page 24 AIR FLOW AND RESERVOIR PARTS For Model: KSSS36DAW04 Illus. Part DESCRIPTION 1 2001086 Fan Motor 488908 Screw 3 2154800 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw, 8 x 1/2 8 2000618 Motor, Wiring 488366 Clamp 10 1129179 489348 Clamp, Nylon...
  • Page 25: Icemaker Parts

    ICEMAKER PARTS For Model: KSSS36DAW04 4379204...
  • Page 26 ICEMAKER PARTS For Model: KSSS36DAW04 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 489084 Screw, 8 x 1/2 487857 489276 Screw 2 2000829 Fitting, Water 628355 Cover 31 2171593 Shut Off Arm Tube 628228 Mold & Heater 32 1113403 Harness, Wiring 3 2001087 Clamp, Tube...
  • Page 27 ICE CONTAINER PARTS For Model: KSSS36DAW04 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Spacer, Track 946193 Drum 489399 Screw 1112282 Left Side 946194 Baffle 983663 Coupling, Motor 1112281 Right Side 22 2001034 Overlay, Cover 12 1112613 Socket, Light 2 1113870 Roller 13 1113128...
