Summary of Contents for KitchenAid KSSS36DAX01

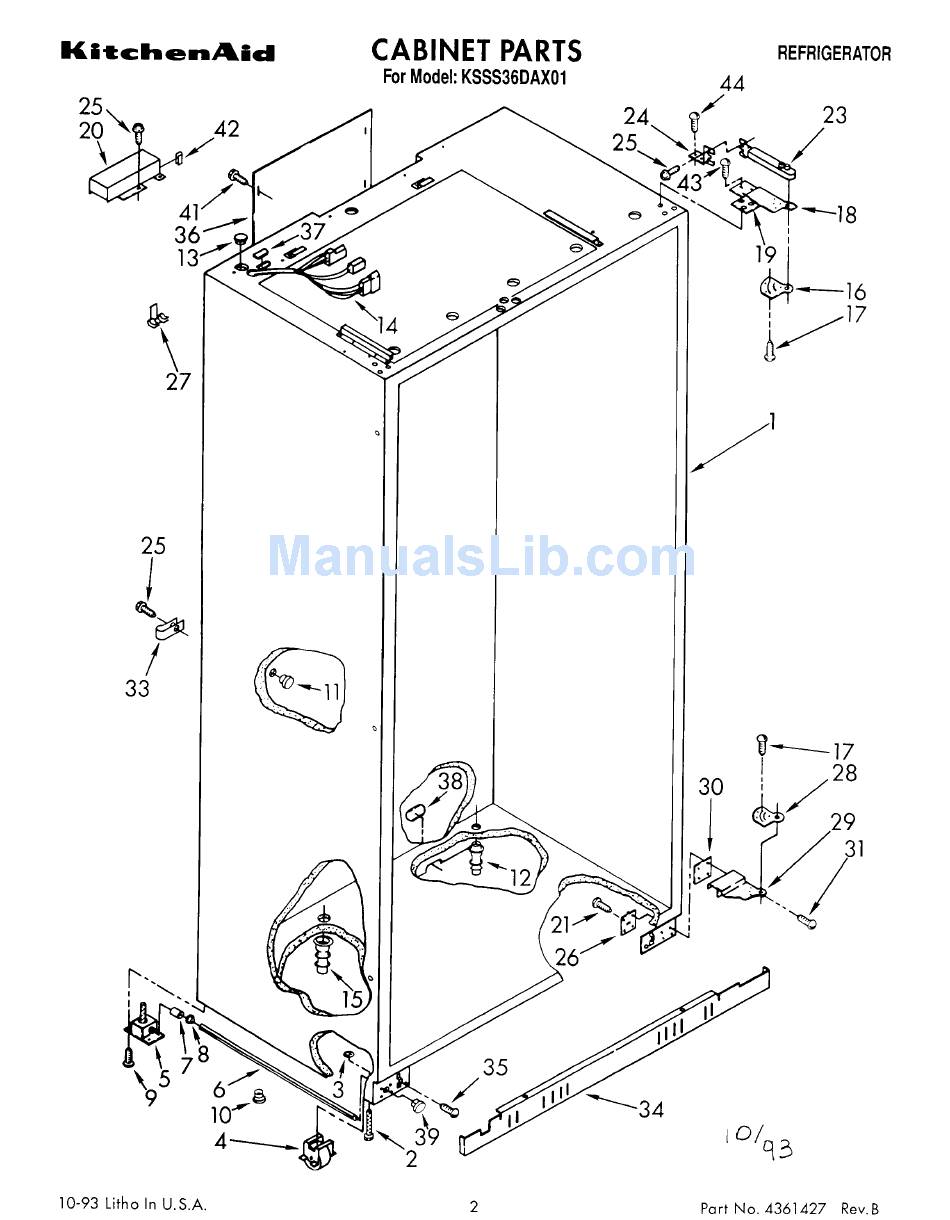

- Page 2 Cabinet (Not A Serviceable Part) 1112019 Leveler, Front (2) 1113249 Retainer (2) 1112023 Roller, Front & Rear (4) 1112695 Leveler, Adjustable (2) 2000670 Adjusting Rod (2) 1113250 Sleeve, Retainer (2) 1112937 Bushing, Rod (2) 489359 Screw 1112939 Hole Plug, Leveler 1112849 Cap, Grommet 1112970...
- Page 4 2000650 Breaker Trim & Retainer Assembly 1112682 Magnet, Side (4) 1112683 Magnet, Freezer (2) 1112679 Magnet, Refrigerator (2) 2000321 Cabinet, Trim R.S 2000322 Cabinet, Trim L.S 2001297 Screw 1112800 Cabinet, Trim (Bottom) 488649 Screw, 8-32 x 1/2 (8) 2001309 Cabinet, Trim Top...
- Page 6 1112640 Control Panel 2000974 Inlay, Control Panel 2000789 Circuit Board 1116853 Control Knob 837444 Retainer, Knob 1108112 Switch, Rocker Arm 1113133 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113773 Shield, Control Panel 1112613 Socket, Light (2) 547225 Light Bulb (2) 486194 Screw, 8 x 1/2...
- Page 8 LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 843436 Grommet, Screw (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw, 8 x 1-1/4 (8) 486194 Screw, 8 x 1/2 1112257 Hole Plug 2000740 Meat Pan, Air Duct Cover (Also Order 12) 2000337 Meat Pan, Air Duct 2001302...
- Page 10 1112595 Control Panel 1113963 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 851387 Switch, Rocker Arm (Dispenser Motor) 1113132 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113767 Shield, Control Panel 1112613 Socket, Light 486194 Screw, 8 x 1/2 547225 Light Bulb...
- Page 12 Liner (Not A Serviceable Part) 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw, 10-12 x 3/8 (2) 992720 Stud, Support (4) 486194 Screw, 8 x 1/2 1112591 Spacer, Control Panel (3) 842534 Clip, Air Duct (4) 1112260 Support, Evaporator 658944 Stud, Shelf (8)
- Page 14 1112365 Solid Shelf 2000885 Front, Ice Compartment 1113564 Shelf, Fixed (2) 1113636 Shelf, Deep 1113639 Basket 1113642 Trim, Basket 1113870 Roller 1113871 Eyelet, Roller 489211 Screw, 10-16 x 3/4 488307 Washer 2000061 Slide, Basket R.S. 2000062 Slide, Basket L.S. 1113169 Stop, Roller 486194 Screw, 8 x 1/2...
- Page 16 1113542 Frame, Shelf 1112297 Glass, Shelf 1113546 Reflector, Shelf 1113790 Gasket, Glass (2) 1125913 Rack, Wine 1113550 Frame, Assembly 1113893 Cover, Crisper 2000154 Glass, Crisper 2000742 Meat Pan, Connector 2000887 Crisper Pan 1113870 Roller 1113871 Eyelet, Roller 489211 Screw, 10-16 x 3/4 488307 Washer 2000891...
- Page 18 2001315 Decorative Panel Assembly 1113313 Back Up Panel 2001577 Top Grille Assembly 2001088 Cover, Unit 486194 Screw, 8 x 1/2 1113300 Cover, Component Assembly 1113317 Brace...
- Page 20 2000693 Door Panel, Refrigerator (Also Order Item 29) 939101 Screw Anchor (8) 2000696 Hinge Assembly, Top 2000303 Spacer 489282 Screw 2000698 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top & Bottom 2000878 Door Gasket, Magnetic 489101...
- Page 22 2001136 Exterior Door Panel, Freezer (Includes Insulation) 1112997 Tube, Wiring 1112928 Retainer, Tube 2000720 Hinge, Bottom 489282 Screw 2000721 Hinge, Top 2000303 Door Spacer 2001031 Overlay, Shelf 2001323 Wiring Harness, Freezer Door 1112533 Gasket Retainer, Side (2) 1112538 Gasket Retainer, Top & Bottom 2000877 Door Gasket, Magnetic 489101...
- Page 24 1107943 Housing, Dispenser 987049 Bracket, Water Fitting 2155037 Water Fitting, Dispenser 487916 Screw, 8 x 3/8 987053 Water Tube 841707 Insert, Tube 488886 Screw, 8-18 x 1/2 488316 Screw, 8-18 x 3/4 987048 Grommet 2001334 Heater, Ice Dispenser 2147167 Ice Door Mechanism 2147168 Door, Ice 1129333...
- Page 26 2000681 Assembly, Unit Base 1113386 Assembly, Sound Barrier 4318252 Compressor (Includes Items 8, 9, 10, 11, 12, 13, 21) (Also Order 876765 Tube Kit) 1105220 Bracket, Mounting 1105219 Grommet, Bracket 1105200 Grommet, Mounting 489334 Screw 2154946 Overload (Production) (Includes Relay) 1101000 Overload (Service) (Includes Relay) 2154452...
- Page 27 978030 Valve, Access (3/4") 876764 Valve, Access (3/16") Production Compressor Requires Production Electrical Components. Service Compressor Requires Service Electrical Components. For Further Information, Refer to Filmcard 19.1.
- Page 29 2000528 Defrost Bi-Metal 1113043 Clamp, Bi-Metal 486194 Screw, 8 x 1/2 1113293 Tube, Connect (Suction) 1113209 Tube, Connect (Discharge) 1113296 Tube, Flow Divider (2) 1113292 Valve, Fluid Control 2001727 Tube, Connect (Drier) 2000754 Heater, Drain Pan 1113062 Hanger, Heater 1113105 Bracket, Heater 487534 Screw, 8 x 1...
- Page 31 2001086 Fan Motor 2154800 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw, 8 x 1/2 2000618 Motor, Wiring 1129179 488366 Clamp, Tube 489348 Clamp, Nylon 2001256 Channel, Wiring 2150347 Union 2000783 Scroll, Fan 488772 Screw, 8 x 1/2 2000744 Assembly, Air Duct 2000048...
- Page 33 489084 Screw, 8 x 1/2 2000829 Fitting, Water Tube 2001087 Clamp, Tube 841707 Insert, Tube 628379 Clip, Fuse 2000392 Wire Clip 2001336 Tube, Water (To Ice Maker) 1106508 Seal Gasket 487627 Sleeve, Nut 2155062 Valve, Solenoid 627018 Nut, Compression 227991 Connector, Wire 2000836 Water Valve, Harness...
- Page 34 LIT628370 Modular Icemaker Service Sheet LIT2001094 Installation Instructions LIT4361427 Parts List...
- Page 36 Spacer, Track 1112282 Left Side 1112281 Right Side 1113870 Roller 1113871 Eyelet, Roller 1113169 Stop, Roller 488307 Washer 486194 Screw, 8 x 1/2 1112291 Bracket, Motor 2155271 Motor Assembly 489399 Screw 983663 Coupling, Motor 1112613 Socket, Light 1113128 Cover, Motor 487294 Screw, 8-32 x 3/8 1112285...
