- Page 1 CABINET PARTS REFRIGERATOR For Model: KSSS36DAX04 Part No. 4379205 11−93 Litho In U.S.A.
-

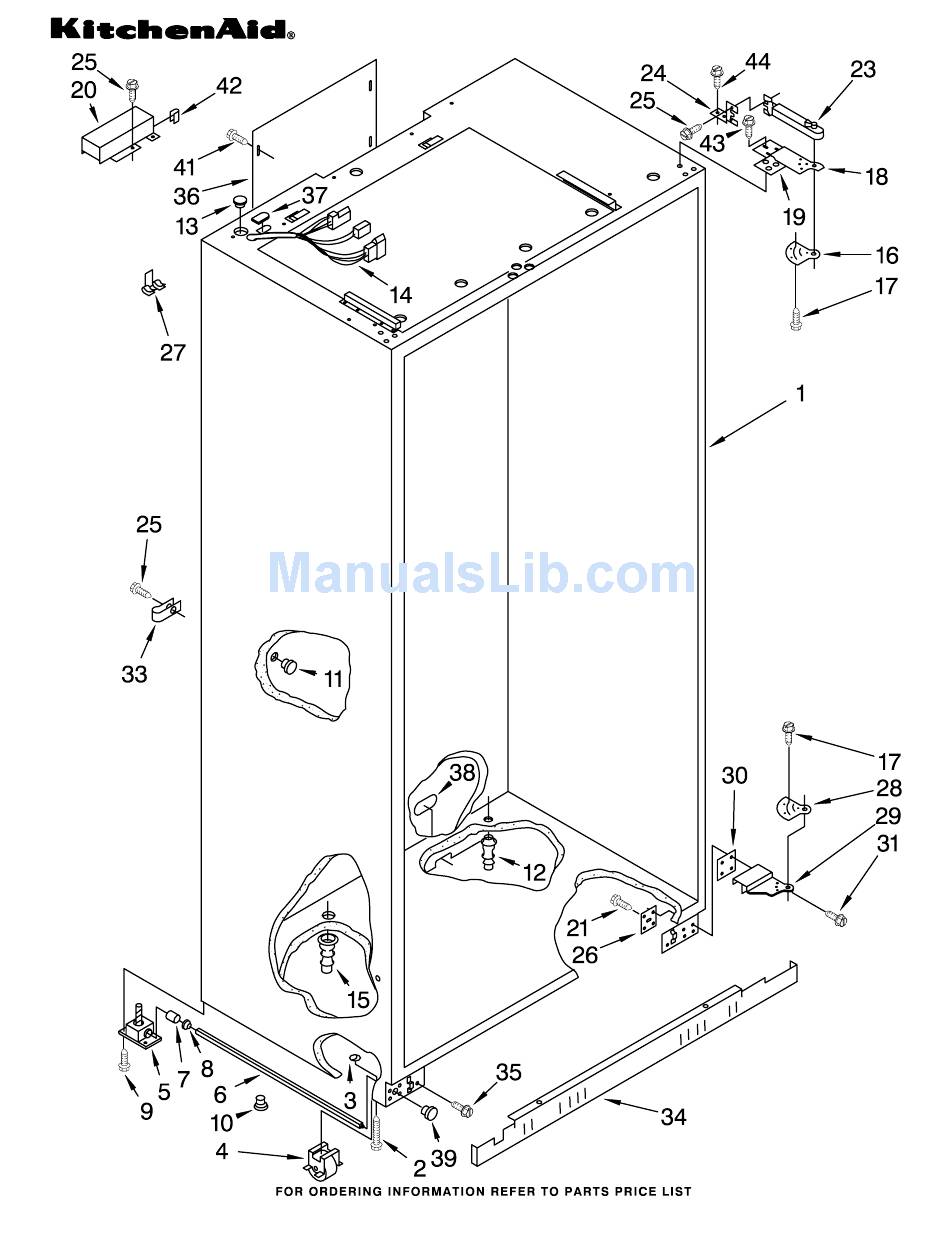

Page 2: Cabinet Parts
Wiring Harness, Cabinet 15 1112848 Drain Fitting Gap, Cover Assembly (Top) 2000305 Left Side 2000304 Right Side CABINET PARTS For Model: KSSS36DAX04 Illus. Part DESCRIPTION 17 2001295 Shoulder Screw Hinge (Top) 2000306 Left Side 2000307 Right Side 19 2000770 Shim, Hinge... - Page 3 CABINET TRIMS AND BREAKER TRIM PARTS For Model: KSSS36DAX04 4379205...
- Page 4 1 2000650 Breaker Trim & Retainer Assembly 5 1112682 Magnet, Side (4) 6 1112683 Magnet, Freezer (2) TOP GRILLE AND UNIT COVER PARTS For Model: KSSS36DAX04 Illus. Part DESCRIPTION 7 1112679 Magnet, Refrigerator (2) 2000321 Cabinet, Trim R.S 10 2000322 Cabinet, Trim L.S...
-
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSS36DAX04 4379205... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSS36DAX04 Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 2 1112591 Spacer, Control Panel (3) 843436 Grommet, Screw (3) 5 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw, 8 x 1−1/4 (8)
-
Page 7: Freezer Liner Parts
FREEZER LINER PARTS 4379205 For Model: KSSS36DAX04 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 538533 Support Clip, Icemaker (2) 7 2000193 Grommet, Screw (2) 488552 Screw, 10−12 x 3/8 (2) 992720 Stud, Support (4) 486194 Screw, 8 x 1/2... -
Page 8: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSS36DAX04 Illus. Part DESCRIPTION 1 1112365 Solid Shelf 2 2000885 Front, Ice Compartment 3 1113564 Shelf, Fixed (2) 1113636 Shelf, Deep 2001551 Basket 5 1113642 Trim, Basket 15 1113870 Roller 1113871 Eyelet, Roller 489211 Screw, 10−16 x 3/4... -
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSS36DAX04 4379205... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSS36DAX04 Illus. Part DESCRIPTION 1 1113542 Frame, Shelf 2 1112297 Glass, Shelf 3 1113546 Reflector, Shelf 4 1113790 Gasket, Glass (2) 5 1125913 Rack, Wine 7 1113550 Frame, Assembly 9 1113893 Cover, Crisper 10 2000154...
-
Page 11: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSS36DAX04 4379205... - Page 12 REFRIGERATOR DOOR PARTS For Model: KSSS36DAX04 Illus. Part DESCRIPTION 1 2000693 Door Panel, Refrigerator (Also Order Item 29) 939101 Screw Anchor (8) 3 2000696 Hinge Assembly, 4 2000303 Spacer 489282 Screw 6 2000698 Hinge Assembly, Bottom 7 1112533 Gasket Retainer,...
-
Page 13: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSS36DAX04 4379205... - Page 14 FREEZER DOOR PARTS For Model: KSSS36DAX04 Illus. Part DESCRIPTION 1 2001136 Exterior Door Panel, Freezer (Includes Insulation) 2 1112997 Tube, Wiring 3 1112928 Retainer, Tube 6 2000720 Hinge, Bottom 489282 Screw 2000721 Hinge, Top 9 2000303 Door Spacer 2001031 Overlay, Shelf...
- Page 15 DISPENSER AND FRONT PARTS For Model: KSSS36DAX04 4379205...
- Page 16 DISPENSER AND FRONT PARTS For Model: KSSS36DAX04 Illus. Part DESCRIPTION 1 1107943 Housing, Dispenser 987049 Bracket, Water Fitting 3 2155018 Water Fitting Assembly (Includes Water Tube) 487916 Screw, 8 x 3/8 Water Tube (See Item #3) 488316 Screw, 8−18 x 3/4...
- Page 17 UPPER UNIT PARTS For Model: KSSS36DAX04 4379205...
- Page 18 Screw, 8 x 3/8 16 1113015 Condenser Production Compressor Requires Production Electrical Components. Service Compressor Requires Service Electrical Components. For Further Information, Refer to Filmcard 19.1. UPPER UNIT PARTS For Model: KSSS36DAX04 Illus. Part DESCRIPTION 943447 Grommet (4) 18 1113019 Clamp (4)
- Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSS36DAX04 4379205...
- Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSS36DAX04 Illus. Part DESCRIPTION 1 2000528 Defrost Bi−Metal 2 1113043 Clamp, Bi−Metal 486194 Screw, 8 x 1/2 4 1113293 Tube, Connect (Suction) 5 1113209 Tube, Connect (Discharge) 6 1113296 Tube, Flow Divider (2)
- Page 21 AIR FLOW AND RESERVOIR PARTS For Model: KSSS36DAX04 4379205...
- Page 22 AIR FLOW AND RESERVOIR PARTS For Model: KSSS36DAX04 Illus. Part DESCRIPTION 1 2001086 Fan Motor 488908 Screw 3 2154800 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw, 8 x 1/2 8 2000618 Motor, Wiring 488366 Clamp...
-
Page 23: Icemaker Parts
ICEMAKER PARTS For Model: KSSS36DAX04 4379205... - Page 24 Water Valve, Harness 14 2001353 Copper, Water Line 489348 Clamp, Nylon Valve 16 1113066 Clamp Tube PARTS NOT ILLUSTRATED ICEMAKER PARTS For Model: KSSS36DAX04 Illus. Part DESCRIPTION 487857 628355 Cover 628228 Mold & Heater (Also Order 542638 Silicone Grease) 628258...
- Page 25 5 1113169 Stop, Roller 488307 Washer 486194 Screw 1112291 Bracket, Motor 9 2155262 Motor Assembly 4379205 ICE CONTAINER PARTS For Model: KSSS36DAX04 Illus. Part DESCRIPTION 489399 Screw 983663 Coupling, Motor 12 1112613 Socket, Light 13 1113128 Cover, Motor 487294 Screw, 8−32 x 3/8...
- Page 26 FREEZER CONTROL PANEL PARTS For Model: KSSS36DAX04 Illus. Part DESCRIPTION 1 1112595 Control Panel 2 1113963 Inlay, Control Panel 3 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 851387 Switch, Rocker Arm (Dispenser Motor) 6 1113132 Seal, Control Panel 489260...
- Page 27 REFRIGERATOR CONTROL PANEL PARTS 4379205 For Model: KSSS36DAX04 Illus. Part DESCRIPTION 1 1112640 Control Panel 2 2000974 Inlay, Control Panel 3 2000789 Circuit Board 4 1116853 Control Knob 837444 Retainer, Knob 6 1108112 Switch, Rocker Arm 7 1113133 Seal, Control...
