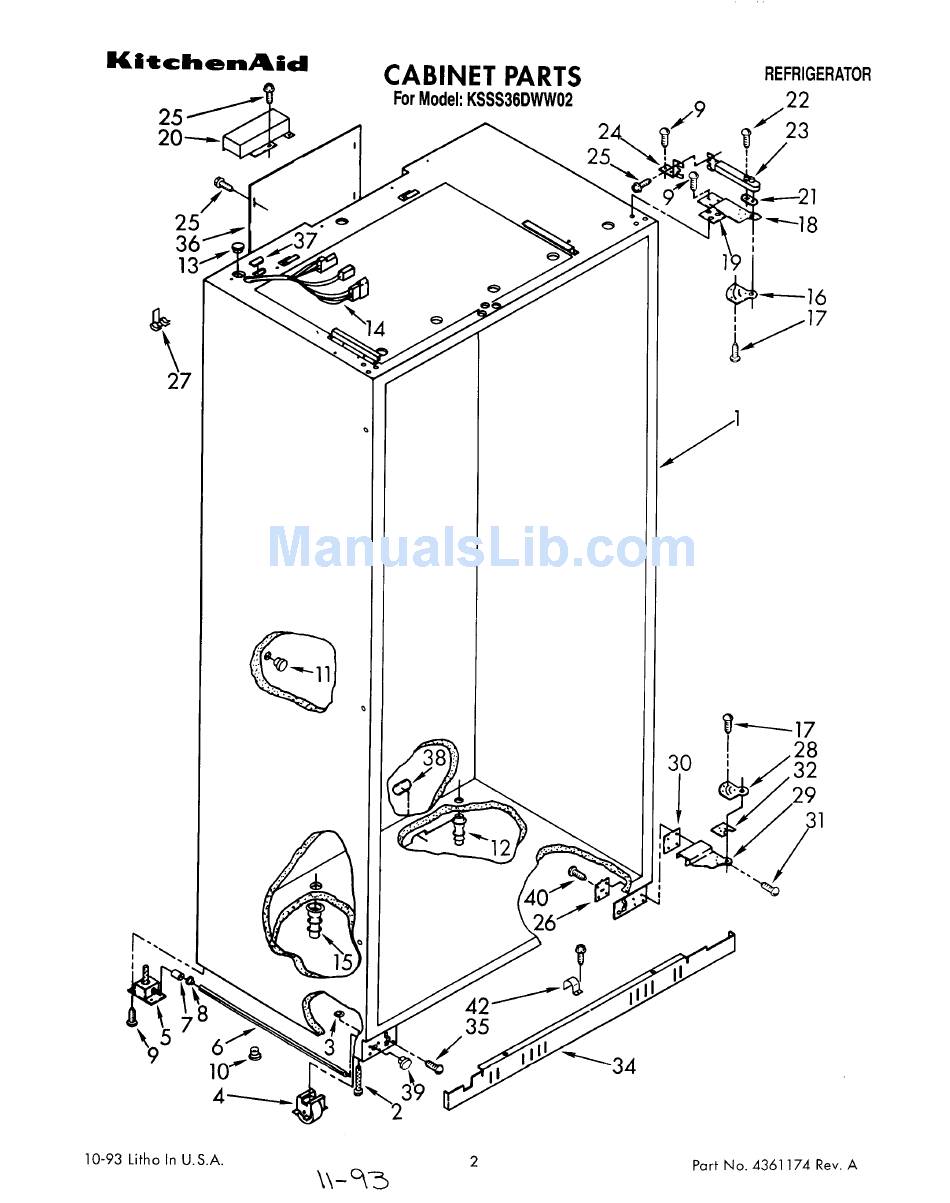

- Page 2 Cabinet (Not A Serviceable Part) 1112019 Leveler, Front (2) 1113249 Retainer (2) 1112023 Roller, Front & Rear (4) 1112695 Leveler, Adjustable (2) 1112936 Adjusting Rod (2) 1113250 Sleeve, Retainer (2) 1112937 Bushing, Rod (2) 2000489 Screw, 10-32 x 5/8 1112939 Hole Plug, Leveler 1112849 Cap, Grommet...
- Page 4 1112665 Breaker Trim & Retainer Assembly 1112682 Magnet, Side (4) 1112683 Magnet, Freezer (2) 1112679 Magnet, Refrigerator (2) 1112710 Heater, Mullion 1113836 Trim (R.S.) 1113835 Trim (L.S.) 489238 Screw (12) 487246 Screw (Repair) 1112800 Trim (Bottom) 488649 Screw, 8-32 x 1/2 (8) 1113842 Spacer Trim, Grille 1113604...
- Page 6 1112640 Control Panel 2000974 Inlay, Control Panel 1113390 Circuit Board 1116853 Control Knob 837444 Retainer, Knob 1108112 Switch, Rocker Arm 1113133 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113773 Shield, Control Panel 1112613 Socket, Light (2) 547225 Light Bulb (2) 486194 Screw, 8 x 1/2...
- Page 8 LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 843436 Grommet, Screw (3) 842339 Grommet 1112115 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw, 8 x 1-1/4 (8) 486194 Screw, 8 x 1/2 1112257 Hole Plug 2000950 Cover, Liner Back 1112219 Control Panel Assembly (Meat)
- Page 10 1112595 Control Panel 1113963 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 851387 Switch, Rocker Arm (Dispenser Motor) 1113132 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113767 Shield, Control Panel 1112613 Socket, Light 486194 Screw, 8 x 1/2 547225 Light Bulb...
- Page 12 Liner (Not A Serviceable Part) 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw, 10-12 x 3/8 (2) 992720 Stud, Support (4) Rail, Evaporator Cover 2000956 Left Side 2000957 Right Side 486194 Screw, 8 x 1/2 1112591 Spacer, Control Panel (3) 842534 Clip, Air Duct (4) 842339...
- Page 14 1112365 Solid Shelf 2000885 Front, Ice Compartment 1113564 Shelf, Fixed (2) 1113636 Shelf, Deep 1113639 Basket 1113642 Trim, Basket 1113870 Roller 1113871 Eyelet, Roller 489211 Screw, 10-16 x 3/4 488307 Washer 2000061 Slide, Basket R.S. 2000062 Slide, Basket L.S. 1113169 Stop, Roller 486194 Screw, 8 x 1/2...
- Page 16 1113542 Frame, Shelf 1112297 Glass, Shelf 1113546 Reflector, Shelf 1113790 Gasket, Glass (2) 1125913 Rack, Wine 1113550 Frame, Assembly 1113893 Cover, Crisper 2000154 Glass, Crisper 2000887 Crisper Pan 1113870 Roller 1113871 Eyelet, Roller 489211 Screw, 10-16 x 3/4 488307 Washer 2000891 Utility Pan 2000895...
- Page 18 1113866 Grille, Frame Assembly 1113863 Decorative Panel Assembly 1113313 Back Up Panel 2000931 Top Grille Assembly 1113490 Cover, Unit 486194 Screw, 8 x 1/2 1113300 Cover, Component Assembly...
- Page 20 2000572 Door Panel, Refrigerator (Also Order Item 29) 939101 Screw Anchor (8) 1112945 Hinge Assembly, Top 1112940 Spacer 489282 Screw 1112921 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top & Bottom 2000444 Door Gasket, Magnetic 489101 Screw, 7 x 1/2 (36) 2000182 Handle, Door...
- Page 22 2000598 Exterior Door Panel, Freezer (Also Order Item 4) 1112997 Tube, Wiring 1112928 Retainer, Tube 876029 Kit, Foam Slab (Required When Replacing Exterior Door Panel) 1112977 Insulation, Dispenser 1112916 Hinge, Bottom 489282 Screw 1112944 Hinge, Top 1112940 Spacer Plate Expansion (2) 2001031 Overlay, Shelf 1112488...
- Page 24 1124715 Housing, Dispenser 987049 Bracket, Water Fitting 2155056 Water Fitting, Dispenser 487916 Screw, 8 x 3/8 987053 Water Tube 841707 Insert, Tube 488878 Clamp, Tube 488886 Screw, 8-18 x 1/2 488316 Screw, 8-18 x 3/4 987048 Grommet 2157430 Heater, Ice Dispenser 2147167 Ice Door Mechanism 2147168...
- Page 26 1113005 Assembly, Unit Base 1113386 Assembly, Sound Barrier 4318252 Compressor (Includes Items 8, 9, 10, 11, 21) (Also Order) 876765 Tube Kit 1105220 Bracket, Mounting 1105219 Grommet, Bracket 1105200 Grommet, Mounting 489334 Screw 2149961 Overload (Production) (Includes Relay) 1101000 Overload (Service) (Includes Relay) 2154452 Terminal Cover 1105222...
- Page 27 Production Compressor Requires Production Electrical Components. Service Compressor Requires Service Electrical Components. For Further Information, Refer to Filmcard 19.1...
- Page 29 2000528 Defrost Bi-Metal 1113043 Clamp, Bi-Metal 486194 Screw, 8 x 1/2 1113293 Tube, Connect (Suction) 1113209 Tube, Connect (Discharge) 1113296 Tube, Flow Divider (2) 1113292 Valve, Fluid Control 1113294 Tube, Connect (Drier) 1113061 Heater, Drain Pan 1113062 Hanger, Heater 1113105 Bracket, Heater 487534 Screw, 8 x 1...
- Page 31 945523 Fan Motor 992953 Compression Ring 992920 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw, 8 x 1/2 538449 Grommet, Screw 488500 Screw, Ground 488366 Clamp, Tube 489348 Clamp, Nylon 2001256 Channel, Wiring 1111212 Scroll, Fan (Also Order Item 15) 1112976 Shield, Electric 488772...
- Page 33 489084 Screw, 8 x 1/2 1112845 Fitting, Water Tube 488878 Clamp, Tube 841707 Insert, Tube 628379 Clip, Fuse 836074 Dampener 1112556 Tube, Water 1106508 Seal Gasket 488645 Screw, 8 x 1/2 (2) 1113103 Valve, Solenoid 627018 Nut, Compression 227991 Connector, Wire 488292 Washer 1113106...
- Page 34 LIT2000936 Service & Wiring Sheet LIT628107 Modular Icemaker Service Sheet LIT2000491 Installation Instructions LIT4361174 Parts List...
- Page 36 Spacer, Track 1112282 Left Side 1112281 Right Side 1113870 Roller 1113871 Eyelet, Roller 489211 Screw, 10-16 x 5/8 1113169 Stop, Roller 488307 Washer 486194 Screw, 8 x 1/2 1112291 Bracket, Motor 1113960 Motor Assembly 488906 Screw, 8-32 x 5/16 983663 Coupling, Motor 1112613 Socket, Light...
