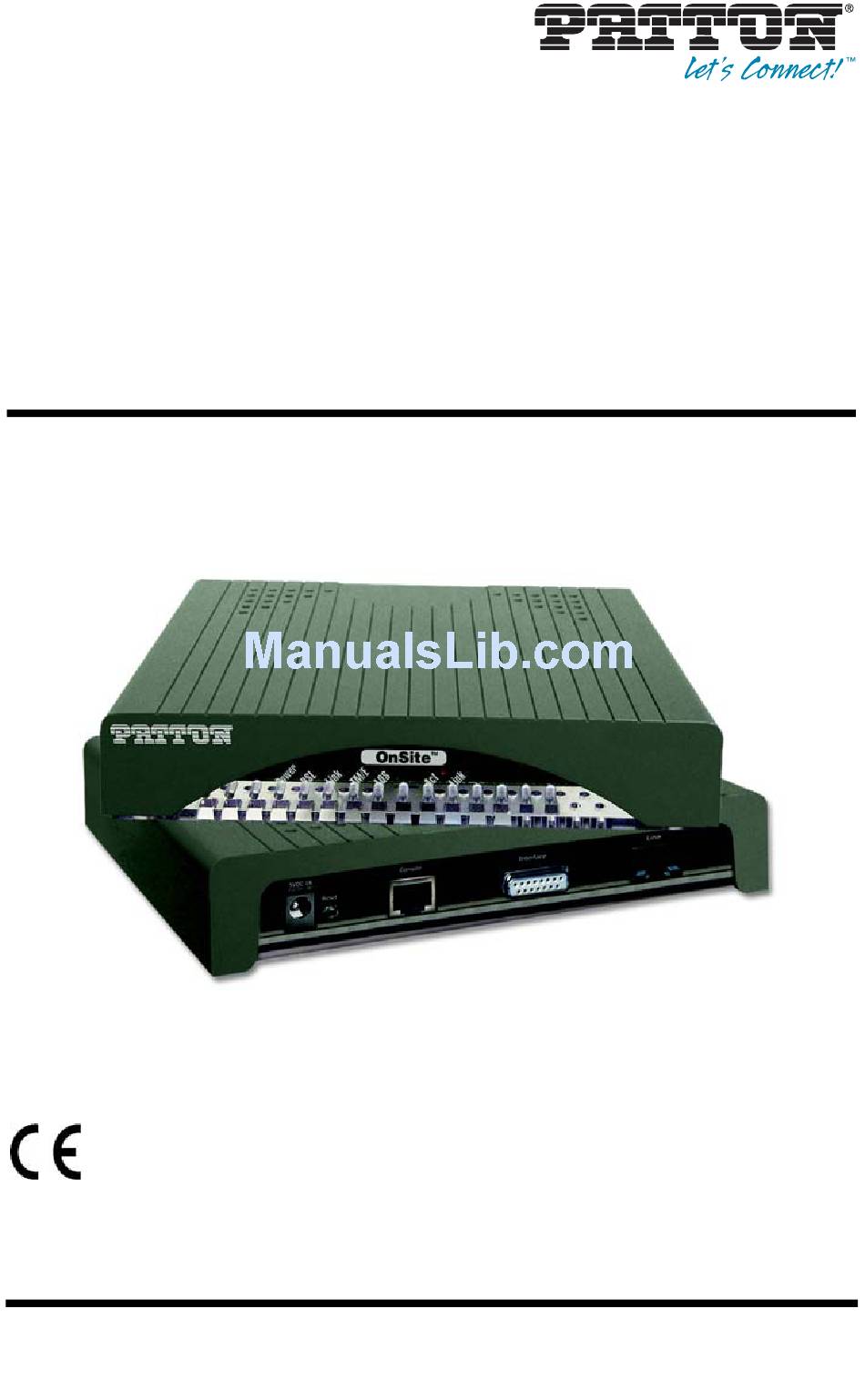

OnSite™ Model 3088A Series
G.SHDSL.bis CPE with Fixed
Serial Interfaces
Quick Start Guide
Important
intended nor approved for use in an industrial or residential environment.
REGULATORY MODEL NUMBER: 03340D4-001
Part Number: 07M3088A-QS, Rev. A
Revised: March 30, 2012
—This is a Class A device and is intended for use in a light industrial environment. It is not
Sales Office: +1 (301) 975-1000
Technical Support: +1 (301) 975-1007
E-mail: support@patton.com
WWW: www.patton.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Patton OnSite 3088A
Summary of Contents for Patton OnSite 3088A
- Page 1 OnSite™ Model 3088A Series G.SHDSL.bis CPE with Fixed Serial Interfaces Quick Start Guide Important —This is a Class A device and is intended for use in a light industrial environment. It is not intended nor approved for use in an industrial or residential environment. REGULATORY MODEL NUMBER: 03340D4-001 Sales Office: +1 (301) 975-1000 Part Number: 07M3088A-QS, Rev.
- Page 2 • Do not open the device when the power cord is connected. For sys- tems without a power switch and without an external power adapter, line voltages are present within the device when the power WARNING cord is connected. • For devices with an external power adapter, the power adapter shall be a listed Limited Power Source The mains outlet that is utilized to power the device shall be within 10 feet (3 meters) of the device, shall be easily accessible, and protected by a circuit breaker in compli-...
- Page 3 1.0 Select configuration method Before powering up, you must select one of the following methods for configuring your OnSite: Plug ‘n’ Play—The OnSite comes factory-configured for Plug ’n’ Play configuration when connected to a • service-provider network. DIP Switch—For deploying the OnSite in back-to-back applications. To use DIP-switch configuration you •...
- Page 4 Link Activity TM / ERR Terminal Power Model 3088A/CA front panel Figure 2. 2.3 Power up indication Verify that the Power LED (see 2) illuminates and remains lit. figure 3.0 Connect the G.SHDSL port Obtain single-twisted-pair cable with an RJ-45 plug connector at each end. Plug one end of the cable into the RJ-45 socket (labelled DSL) on the OnSite CPE.
- Page 5 4.0 Connect the serial port Your OnSite comes with one of the following serial WAN ports for connection to an CPE: RS-232 (DB-25F)—Model 3088A/A • V.35 (DB-25F)—Model 3088A/CA • X.21 (DB-15)—Model 3088A/D • E1 (120-Ohm RJ-48C and dual 75-Ohm BNC connectors)—Model 3088A/K •...
- Page 6 A.0 Compliance Information A.1 Compliance EMC: FCC Part 15, Class A • EN55022, Class A • EN55024 • Safety: UL 60950-1/CSA C22.2 N0. 60950-1 • IEC/EN60950-1 • AS/NZS 60950-1 • 1.2 Radio and TV Interference (FCC Part 15) This equipment generates and uses radio frequency energy, and if not installed and used properly—that is, in strict accordance with the manufacturer's instructions—may cause interference to radio and television recep- tion.
- Page 7 A.4 EG-Konformitätserklärung (see section for English version) A.3 “EC Declaration of Conformity” Produktbezeichnung: OnSite 3088A Sendereihe Die bezeichneten Produkte stimmen in der von uns in Verkehr gebrachten Ausführung mit den Vorschriften fol- gender Richtlinie überein: R&TTE 1999/5/EG Richtlinie des europäischen Parlaments und des Rates zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über Funkanlagen und Telekommunikations-Endeinrichtungen und die gegenseitige Anerkennung ihrer Konformität.
- Page 8 Copyright statement Copyright © 2012, Patton Electronics Company. All rights reserved. The information in this document is subject to change without notice. Patton Electronics assumes no liability for errors that may appear in this document. Trademarks statement The term OnSite is a trademark of Patton Electronics Company. All other trademarks presented in this document are the property of their respective owners.
