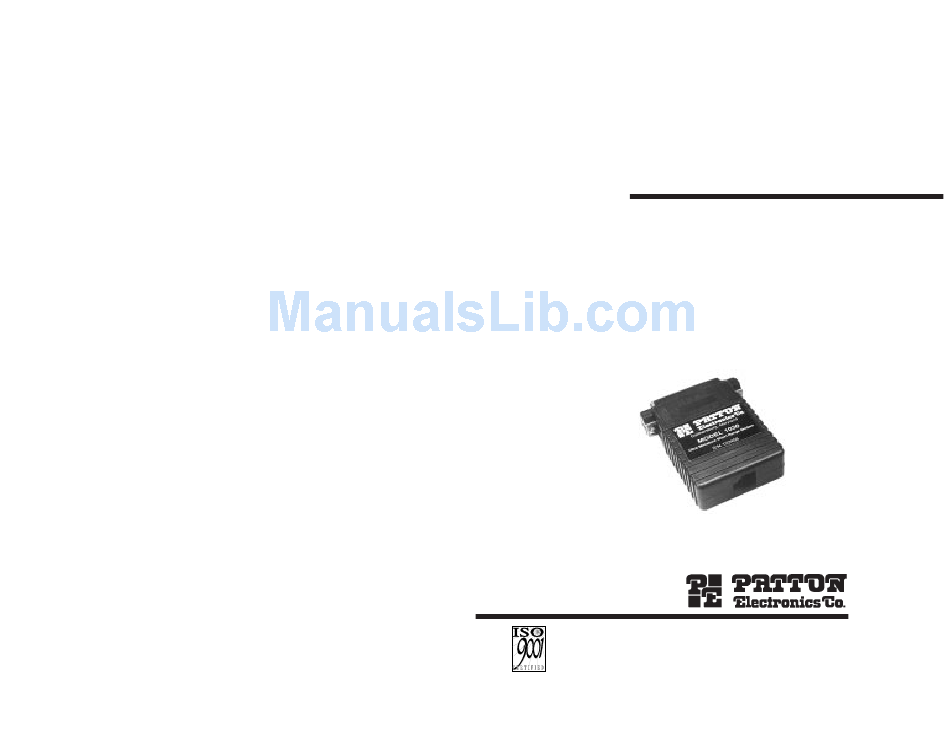

USER MANUAL MODEL 1030 and 1030S Synchronous, Carrier Controlled Short Range Modem SALES OFFICE Part #07M1030-C Doc. #041013UC (301) 975-1000 Revised 4/20/98 TECHNICAL SUPPORT C E R T I F I E D (301) 975-1007 An ISO-9001 http://www.patton.com Certified Company...
However, there is no guarantee that interference will not occur in a particular installation. If the Model 1030 does cause interference to radio or television reception, which can be...
The Patton Electronics Model 1030 synchronous, multipoint short range modem provides exceptional versatility in a compact package. Measuring only 2.66” x 2.10” x and 0.73”, the Model 1030 is suitable for many applications where connection space is limited. The Model 1030 supports up to twelve drops, and requires no AC power or Figure 1.
After request to send (RTS) is raised by the host terminal, the are presented in the summary table and descriptions below. If you Model 1030 raises CTS after a slight delay in order to give the remote have additional questions regarding configuration, contact Patton terminal time to receive an incoming signal.
If your application requires you to connect two pair of bare wires to the Model 1030, you will need to open the case to access the terminal blocks. The instructions on the following pages will tell you how to...
Page 6
Open the unit by gently inserting a screwdriver between the DB-25 connector and the lip of the plastic case (see below). the terminal block. The Model 1030 is not polarity sensitive, You don’t have to worry about breaking the plastic, but be so either wire may connect to either pole.
The Model 1030 is wired as a DCE, and therefore wants to plug into a DTE such as a terminal, PC or host. Because the Model 1030 is interface powered, a direct connection to the RS-232 DTE port is most desirable.
4.2.2 CONNECTION TO A “DCE” DEVICE PATTON MODEL 1030/1030S SPECIFICATIONS Since the Model 1030 is wired as a DCE, you cannot connect it directly to another DCE such as a modem, multiplexer or printer. If you need to connect the Model 1030 to another DCE device, you must use...
Page 9
APPENDIX B PATTON MODEL 1030/1030S RS-232 PIN CONFIGURATIONS DIRECTION “DCE” STANDARD SETTING DIRECTION 1- (FG) Frame Ground 2- (TD) Transmit Data To Model 1030 From Model 1030 Transmitting Timing - 15 3- (RD) Receive Data From Model 1030 4- (RTS) Request to Send...
