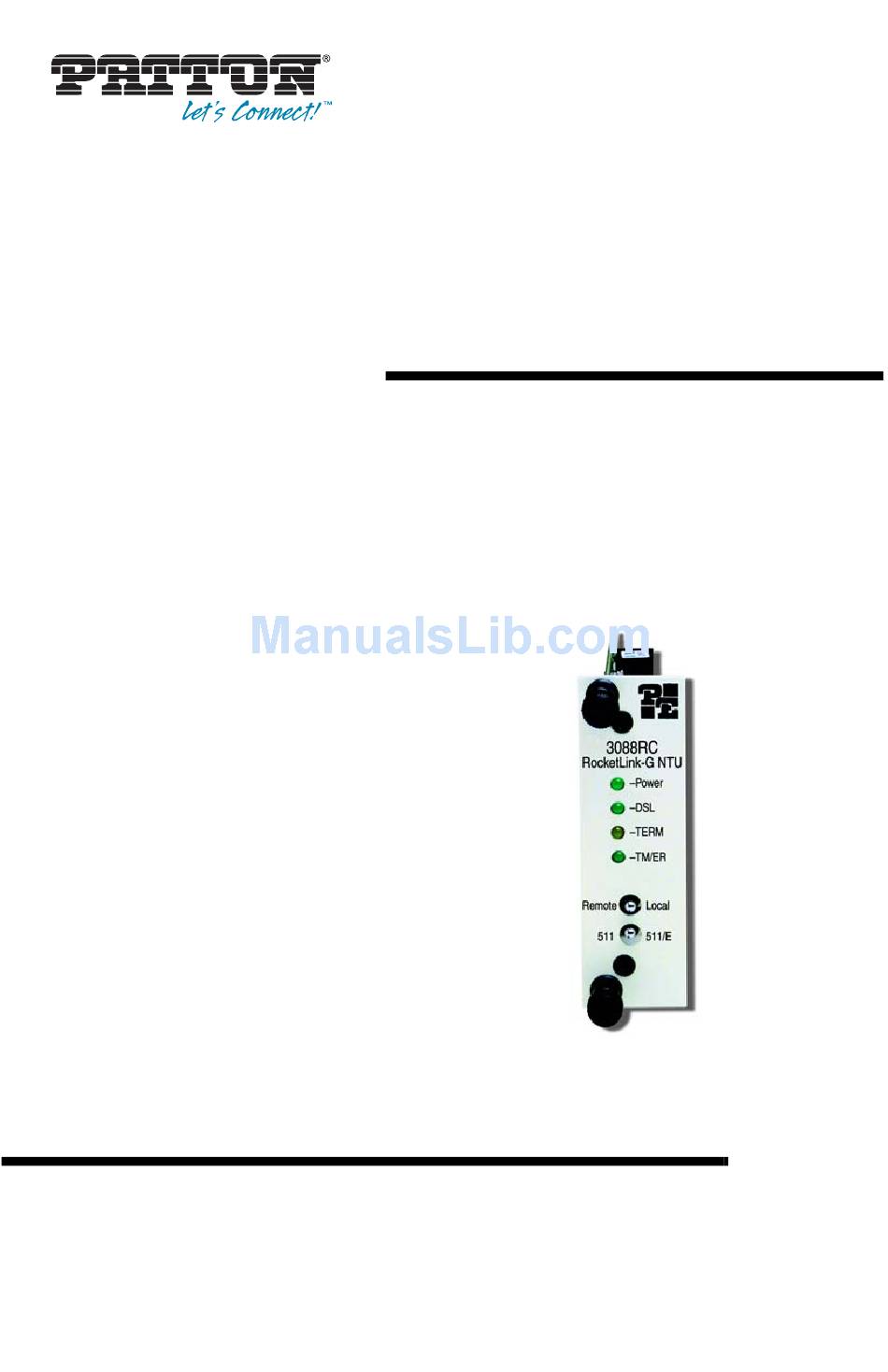

- Page 1 USER MANUAL MODEL 3088RC RocketLink-G NTU Rack Mount G.SHDSL Modem Card SALES OFFICE Part# 07M3088RC-UM, Rev. B Revised 2/16/12 (301) 975-1000 TECHNICAL SUPPORT (301) 975-1007...
-
Page 2: Table Of Contents
Warranty Information ..............5 Compliance................... 5 EMC Compliance:................. 5 Low-Voltage Directive (Safety): ............ 5 PSTN Regulatory:................. 5 FCC Part 68 (ACTA) Statement ........... 6 Radio and TV Interference (FCC Part 15) ........6 Industry Canada Notice ..............7 CE Declaration of Conformity ............7 Authorized European Representative........... - Page 3 Configuring the X.21 Rear Card ..........27 Model 1001RCM11545& 1001RCM115TB Strap Settings..27 DTE Shield (DB-15 Pin 1) & FRGND (JB3) ......28 SGND & FRGND (JB4) ............28 Configuring the E1 Rear Card ............ 28 DIP Switch Configuration............28 Switch S1-1 : Line Coding ..........
- Page 4 Operation................... 51 LED status indicators..............51 Test Modes ................. 52 Loopbacks .................. 52 Patterns ..................53 Remote Console Operation ............53 Establishing a Remote Console Session........53 How to Connect ..............53 How to Disconnect .............. 55 Differences in Local and Remote Control Session Behavior..56 Software Upgrade...............
-
Page 5: Warranty Information
1.0 WARRANTY INFORMATION Patton Electronics warrants all Model 3088RC components to be free from defects, and will—at our option—repair or replace the product should it fail within one year from the first date of the shipment. This warranty is limited to defects in workmanship or materials, and does not cover customer damage, abuse or unauthorized modification. -
Page 6: Fcc Part 68 (Acta) Statement
1.2 FCC PART 68 (ACTA) STATEMENT This equipment complies with Part 68 of FCC rules and the requirements adopted by ACTA. On the bottom side of this equipment is a label that contains—among other information—a product identifier in the format US: AAAEQ##TXXXX. -
Page 7: Industry Canada Notice
ment into a different AC outlet (such that the computing equipment and receiver are on different branches). 1.4 INDUSTRY CANADA NOTICE This equipment meets the applicable Industry Canada Terminal Equip- ment Technical Specifications. This is confirmed by the registration num- ber. -
Page 8: Authorized European Representative
1.6 AUTHORIZED EUROPEAN REPRESENTATIVE D R M Green European Compliance Services Limited. Oakdene House, Oak Road Watchfield, Swindon, Wilts SN6 8TD, UK 1.7 SERVICE All warranty and non-warranty repairs must be returned freight prepaid and insured to Patton Electronics. All returns must have a Return Materi- als Authorization number on the outside of the shipping container. -
Page 9: Safety When Working With Electricity
1.8 SAFETY WHEN WORKING WITH ELECTRICITY • Do not open the device when the power cord is con- nected. For systems without a power switch and without an external power adapter, line voltages are present within the device when the power cord is connected. - Page 10 This device contains no user serviceable parts. This device can only be repaired by qualified service personnel. WARNING This device is NOT intended nor approved for connection to the PSTN. It is intended only for connection to customer premise equipment. WARNING Electrostatic Discharge (ESD) can damage equipment and impair electrical circuitry.
-
Page 11: General Information
2.0 GENERAL INFORMATION Thank you for your purchase of this Patton Electronics product. This product has been thoroughly inspected and tested and is warranted for One Year parts and labor. If any questions arise during installation or use of this product, please contact Patton Electronics Technical Support at: (301) 975-1007. -
Page 12: Serial Interface Types
2.3 SERIAL INTERFACE TYPES The Model 3088RC versions listed below provide the following types of built-in serial interfaces: • 3088RC/A/I provides a V.35 interface on an M/34 female connector • 3088RC/C/AI provides a Ethernet interface on an RJ45 connector • 3088RC/D/V/V provides a X.21 interface on a DB-15 female connector •... -
Page 13: Configuration
3.0 CONFIGURATION This section describes the location and orientation of the Model 3088RC’s configuration switches and jumpers, and provides detailed instructions for all possible settings. Each 3088RC model has different configuration requirements, depending on the card’s serial interface. You can configure the 3088RC using either the software (CLI via a 1001CC port) or the hardware (via DIP switches). -
Page 14: Configuring The Dip Switches (V.35, X.21, And Ethernet Models)
• If you attempt to modify any configuration parameters via the EOC (by changing (EOC variables), the RocketLink-G will not execute your changes. 3.3 CONFIGURING THE DIP SWITCHES (V.35, X.21, and Ethernet Models) The Model 3088RC is equipped with three sets of DIP switches, which you can use to configure the RocketLink-G for a broad range of applica- tions. -
Page 15: S1-1 Through S1-7: Data Rate
S1-1 through S1-7: Data Rate Switches S1-1 through S1-7 define both the DSL data rate and the serial data rate. Data Rate S1-1 S1-2 S1-3 S1-4 S1-5 S1-6 S1-7 (kbps) 1024 1088 1152 1216 1280 1344 1408 1472 1536 1600 1664 1728 1792... - Page 16 Data Rate S1-1 S1-2 S1-3 S1-4 S1-5 S1-6 S1-7 (kbps) 2240 2304 2368 2432 2496 2560 2624 2688 2752 2816 2880 2944 3008 3072 3136 3200 3264 3328 3392 3456 3520 3584 3648 3712 3776 3840 3904 3968 4032 4096 4160 4224 4288...
-
Page 17: S1-8: Tx Clock
S1-8: TX Clock S1-8 Setting Description Normal TD sampled on falling edge of TX clock. Inverted TD sampled on rising edge of TX clock. S2-1: Front Panel Switches The 3088RC uses front panel switches to control test modes. They may be disabled so that the 3088RC ignores them. -
Page 18: S2-4 Through S2-5: Clock Mode
S2-4 through S2-5: Clock Mode The RocketLink-G can operate in one of three clock modes: internal, external, or receive-recover. S2-4 S2-5 Clock Mode Description Internal The on-board oscillator in the 3088RC provides clock for both serial and DSL lines. External 3088RC uses the RX clock from the serial interface as the clock for the DSL link. -
Page 19: S2-6: Dte Loops
S2-6: DTE Loops The V.35 interface provides two pins, one to request an LAL and the other to request an RDL. If DTE loops are enabled, the 3088RC/A/I will start a local loopback or a remote loopback when these pins are asserted. -
Page 20: Software Upgrades
Software Upgrades The software is upgraded by waiting for the Reset Mode message. Then, the user can send an Intel HEX file supplied by Patton. After the VT100 emulator has finished sending this file, the 3088RC will respond with a mes-sage stating how many errors were detected. - Page 21 • Data Rate: Both the serial/E1 and DSL data rates are set by specifying the number of 64k timeslots. • Annex: Either G.991.2 Annex A or Annex B. • DTE Interface Type: Either E1 or a normal serial interface. • DSL Error Monitor Max Interval Errors: The number of errors allowed in an interval before considering the interval errored.
-
Page 22: Console Help Commands
been found (out of sync), there are no sync word errors (in sync), or whether we are transitioning from out of sync to in sync (acquiring sync) or vice versa (losing sync). Typically, when the link is training, the sync state goes from out of sync to acquiring sync to in sync. -
Page 23: System Configuration Commands
• dsl help: Lists all the commands that start with dsl that the console recognizes. • dsl set help: Lists all the commands that start with dsl set that the console recognizes. • dsl show help: Lists all the commands that start with dsl show that the console recognizes. -
Page 24: System Status Commands
The following commands allow the user to view the current system configuration: • system show config: Shows the configuration of the entire system, including DSL and serial/T1/E1 lines. Any changes to the system configuration or the DSL configuration will be lost on the next power cycle unless the changes are saved. -
Page 25: Dsl Status Command
check the number of errors that have occurred during each (inttime) sec- onds to see if they meet the error threshold. The error monitor inspects (totint) intervals before it stops. Note Setting maxint to 0 disables the error monitor and setting totint to 0 causes the error monitor to run continuously. -
Page 26: Configuring The V.35 Rear Card
3.6 CONFIGURING THE V.35 REAR CARD The V.35 interface card is configured by setting the configuration straps and dip switches located on the PC board. Model 1001RCM13445 & 1001RCM134TB Strap Settings Figure 2 shows the strap location for the Model 1001RCM134XX (M/34) rear card. -
Page 27: Sgnd & Frgnd (Jb4)
SGND & FRGND (JB4). In the connected position, this strap links Signal Ground and frame ground through a 100 ohm resistor. In the open posi- tion, signal ground is disconnected from frame ground. Description Position 1&2 SGND and FRGND Connected Position 2&3 SGND and FRGND Not Connected 3.7 CONFIGURING THE X.21 REAR CARD... -
Page 28: Dte Shield (Db-15 Pin 1) & Frgnd (Jb3)
DTE Shield (DB-15 Pin 1) & FRGND (JB3). In the connected position, this strap links DB-15 pin 1 & frame ground. In the open position, pin 1 is disconnected from frame ground. Description Position 1&2 DTE Shield (Pin 1) and FRGND Connected Position 2&3 DTE Shield (Pin 1) and FRGND Not Connected SGND &... -
Page 29: Switch S1-2 : Crc-4 Multiframe
• Alternate Mark Inversion (AMI): AMI coding does not inherently account for ones density. To meet this requirement, you should ensure that the data inherently meets pulse density requirements. Switch S1-2 : CRC-4 Multiframe. CRC-4 Multiframe uses Time Slot zero to carry CRC-4 information. When CRC-4 is enabled (ON), the unit synchronizes to the CRC-4 multi-frame protocol. -
Page 30: Making Interface Connections
Making Interface Connections The 3088RC/K model may be connected to G.703/G.704 ports using a single 120 ohm RJ-48C or a dual 75 ohm coax (BNC). The 3088RC/K model rear panels and the location of these connectors are show below. Figure 4. K Module Rear Panels, Showing Location of Connectors Connect Twisted Pair (120 ohm) to G.703/G.704 Network . -
Page 31: Connect Dual Coaxial Cable (75 Ohm) To G.703/G.704 Net- Work
Connect Dual Coaxial Cable (75 ohm) to G.703/G.704 Network. The 3088RC/K model is also equipped with dual female BNCs (TX and RX) for connection to a 75 ohm dual coax G.703/G.704 network interface. If your G.703/G.704 network terminates via dual coaxial cable, use the dia- gram below to make the proper connections. -
Page 32: Connecting The Ethernet Rear Card
3.9 CONNECTING THE ETHERNET REAR CARD The Model 3088RC/C/AI module plugs into Patton’s1092ARC and 3088RC modems to provide Ethernet LAN extension. The 3088RC/C/AI has no switches or jumpers and does not need to be configured. How- ever, factors such as the type of medium, throughput across the link and clocking mode must be determined by the settings of the baseband modems. -
Page 33: Connecting The Interface Driver Board
Connecting the Interface Driver Board This package contains an interface driver board that allows you to config- ure your front function card for ethernet operation. Figure 7 shows the Interface Driver Board connected to a Model 3088RC front function card. Figure 7. -
Page 34: Connecting To The 10Base-T Ethernet Port
Connecting to the 10Base-T Ethernet Port The Model 3088RC/C/AI provides line side connections through a termi- nal block or through a RJ-45 connector. Figure 8 below, shows the rear panel options and the locations of the connectors. Figure 8. 3088RC/C/AI Ethernet Port The RJ-45 Ethernet port on Model 3088RC/C/AI is designed to connect directly to a 10BaseT network. -
Page 35: Connecting The 10Base-T Ethernet Port To A Hub
Connecting the 10Base-T Ethernet Port to a Hub . The Model 3088RC/C/AI 10Base-T interface is configured as DTE (Data Terminal Equipment), just like a 10Base-T network interface card in a PC. There- fore, it “expects” to connect to a 10Base-T Hub using a straight-through RJ-45 cable. -
Page 36: Led Status Monitors
signal equalization equipment, or standard, flat modular telephone type cable, are not acceptable. Figure 10. RJ-45 Line Interface Note Two-Wire Modems use RJ-45 pins 4 and 5 and 4-Wire Modems use RJ-45 pins 3, 4, 5 and 6, as shown above. Please see the Function Card User Manual for more details. -
Page 37: Status
Status. Blinks yellow from one to eleven times to indicate system status. Each pulse pattern is separated by a 2 second “off” period. Greater pulse patterns have higher priority (buffer saturation has greater priority than an empty MAC table). Valid system statuses are: •... -
Page 38: Connecting The 10/100 Ethernet Rear Card
3.10 CONNECTING THE 10/100 ETHERNET REAR CARD The Model 3088RC/C/AI-100B module plugs into Patton’s 3088RC modem to provide Ethernet LAN extension. The 3088RC/C/AI-100B has a jumper that needs to be configured. The jumper at J7 should be factory installed on pins 1 and 2. Factors such as the type of medium, through- put across the link and clocking mode must be determined by the set- tings of the 3088 standalone modem. -
Page 39: Connecting The Interface Driver Board
Connecting the Interface Driver Board This package contains an interface driver board that allows you to config- ure your front function card for ethernet operation. Figure 12 shows the Interface Driver Board connected to a Model 3088RC front function card. Figure 12. -
Page 40: Connecting To The 10/100Basetx Ethernet Port
Connecting to the 10/100BaseTX Ethernet Port The Model 3088RC/C/AI-100B provides line side connections through a terminal block or through a RJ-45 connector. Figure 13 below, shows the rear panel options and the locations of the connectors. Figure 13. 3088RC/C/AI-100B Ethernet Port The RJ-45 Ethernet port on Model 3088RC/C/AI-100B is designed to connect directly to a 10/100BaseTX network. -
Page 41: Connecting The 10/100Basetx Ethernet Port To A Hub
Connecting the 10/100BaseTX Ethernet Port to a Hub. The Model 3088RC/C/AI-100B 10/100BaseTX interface is auto-sensing, meaning that it can connect to either a 10/100BaseTX switch, hub or a PC. Use a straight-through or cross-over cable to connect the 10/100BaseTX port. Refer to the wiring diagram below. -
Page 42: Led Status Monitors
LED Status Monitors The Model 3088RC/C/IA-100B features two LEDs that monitor general operating status and the 10/100BaseTX twisted pair link integrity. Figure 16 shows the LEDs located directly beneath the RJ-45 jack. Activity LED Yellow Link LED Green Figure 16. 3088RC/C/IA-100B Rear Panel, LED Locations... -
Page 43: Installation
4.0 INSTALLATION This section describes the functions of the Model 1001R14 rack chassis, tells how to install front and rear Model 3088RC Series cards into the chassis, and how to connect to the twisted pair interface and the serial interface. 4.1 THE MODEL 1001R14 RACK CHASSIS The Model 1001R14 Rack Chassis (Figure 17) has fourteen short range modem card slots, plus its own power supply. -
Page 44: Powering Up Your 1001R14 Rack
Powering Up Your 1001R14 Rack Note The power supplies that come with your 1001R14 rack system are equipped with a power entry connector on the rear card. The power supplies are Hot-Swappable, so you are not required to remove the cards from the rack while applying power to the sys- tem. -
Page 45: Connecting The Twisted Pair Interface
4.3 CONNECTING THE TWISTED PAIR INTERFACE The Model 3088RC supports communication between two DTE devices as follows: The interconnecting cables shall be acceptable for external use and shall be rated for the proper applica- tion with respect to voltage, current, anticipated tem- CAUTION perature, flammability, and mechanical serviceability. - Page 46 The RJ-45 connector on the Model 3088RC’s twisted pair interface is polarity insensitive and is wired for a two-wire interface. The signal/pin relationships are shown in Figure 18. 3088RC/A/I 3088RC/D/V (V.35, female DB-25) (X.21, female DB-15) Figure 18. Model 3088RC V.35/X.21 interfaces...
-
Page 47: Connecting The Model 3088Rc/A/I (V.35) Serial Interface
4.4 CONNECTING THE MODEL 3088RC/A/I (V.35) SERIAL INTER- FACE Model 3088RC/A/I supports V.35 serial port connections. This section describes how to connect the serial ports to your V.35 equipment. The interconnecting cables shall be acceptable for external use and shall be rated for the proper applica- tion with respect to voltage, current, anticipated tem- CAUTION perature, flammability, and mechanical serviceability. -
Page 48: Connecting The Model 3088Rc/A/I (V.35) To A "Dce" Device
Connecting the Model 3088RC/A/I (V.35) to a “DCE” device The Model 3088RC/A/I provides a V.35 DCE (data circuit terminating equipment) interface on a M/34 connector. As a DCE, this interface is designed to connect to DTE equipment, such as a router. However, con- necting the 3088RC/A/I to another DCE device, such as a multiplexer or G.703 E1 NTU, requires a tailcircuit cable. -
Page 49: Connecting The Model 3088Rc/D/V (X.21) Serial Interface
4.5 CONNECTING THE MODEL 3088RC/D/V (X.21) SERIAL INTER- FACE Model 3088RC/D/V supports X.21 serial port connections. This section describes how to connect the serial ports to your X.21 equipment. The interconnecting cables shall be acceptable for external use and shall be rated for the proper applica- tion with respect to voltage, current, anticipated tem- CAUTION perature, flammability, and mechanical serviceability. -
Page 50: Connecting The 3088Rc/K/K (E1) Interface
4.6 CONNECTING THE 3088RC/K/K (E1) INTERFACE The Model 3088RC/K/K is a rear-mountable G.703/G.704 interface card that works with the Patton Model 3088RC function card. The two cards meet inside the rack chassis and plug into each other by way of mating 50 pin card edge connectors. -
Page 51: Operation
5.0 OPERATION Once the Model 3088RC is properly configured and installed, it should operate transparently. These sections describes functions of the LED status indicators, and the use of the built-in loopback test modes. 5.1 LED STATUS INDICATORS The Model 3088RC features four front panel LEDs that monitor the opera- tion of the rack card. -
Page 52: Test Modes
5.2 TEST MODES The 3088RC offers test modes in the form of loopbacks, PRBS pattern generators, and combinations of both (see Figure 22 on page 51). Figure 23 is a block diagram of the Model 3088RC with respect to test modes. -
Page 53: Patterns
Patterns The 3088RC can generate and detect 511 and 511 with Error patterns. These can be initiated either by the optional front panel switches or by the console command dsl set pattern <off|511|511e>. When the pattern is started, the DSL framer uses its internal 511 pattern generator for its DSL TX data instead of the data received from the serial interface. - Page 54 3. Ensure that a DSL link is established. You can verify an established DSL link by using the system show status command or by checking that the DSL LED is solid green. Upon executing the show status command, the dsl link state is shown as success if the DSL link is established.
-
Page 55: How To Disconnect
Figure 27 is a screenshot of opening a typical remote console session: Log in to 3088RC (Near End) system show status command shows that DSL link is not up remote console command requests a remote console session on 3088RC (Far End) Message informs us that the 3088RC (Far End) did not respond and a remote console session was not opened... -
Page 56: Differences In Local And Remote Control Session Behavior
> The timeout period is a fixed, non-configurable parameter of 5 minutes. If the remote 3088RC (far-end) has received no command within 5 min- utes, it automatically terminates the RCS. Once the RCS is terminated, the PC (far-end) can establish a local console session if desired. How- ever if the PC (near-end) wishes to re-establish a RCS, it is able to do so whether or not the PC (far-end) is in an active local session, because the RCS has priority over a local console session. -
Page 57: Software Upgrade
• dsl set loopback lal: Do not issue this command over the RCS to the far-end 3088RC. If the far-end goes into LAL, the near-end and far- end 3088RC NTUs can no longer communicate over the RCS. Do not issue this command to a far-end unit. If you were to do so, the near-end 3088RC would no longer be able CAUTION to communicate with the far-end 3088RC. -
Page 58: Reset Configuration To Factory Default
7. Open Model 3088RC Console (via HyperTerminal or other terminal emulation program). >>Transfer >>Send Text File... >>Set “Files of Type:” to “All files (*.*)” >>Select 033252Z.hex 8. When the transfer completes, turn off the Model 3088RC. 9. Set the DIP switches for the proper configuration. 10.Turn on the Model 3088RC. -
Page 59: Specifications
APPENDIX A SPECIFICATIONS A.1 CLOCKING MODES Internal, external (V.35 only), or receive recovered A.2 DTE RATE All 64k steps from 64 to 4608 kbps A.3 SERIAL INTERFACE V.35 (Model 3088RC/A/I), DCE orientation; X.21 (Model 3088RC/D/V), DCE or DTE orientation depending on orien- tation of daughter board mounted on the mother board. -
Page 60: Configuration
test mode is in progress. It blinks once if an error is detected either during a test mode, or in normal DSL operation. A.7 CONFIGURATION Configuration is done with either externally accessible DIP switches, CLI or through the EOC (Embedded Operations Channel) from a Model 3096RC G.SHDSL concentration card. -
Page 61: Model 3088Rc Interface Pin Assignments
APPENDIX B MODEL 3088RC INTERFACE PIN ASSIGNMENTS B.1 RJ-11 NON-SHIELDED DSL PORT Single twisted-pair (TP) for full-duplex transmission. The signals are polarity insensitive. Pin # Signal Ring B.2 V.35 INTERFACE (M/34F Female Connector: DCE Configuration) Pin # Signal SGND (Signal Ground) RTS (Request to Send) CTS (Clear to Send) DSR (Data Set Ready) -
Page 62: E1 Interface
B.3 E1 INTERFACE RJ-48C female connector Pin # Signal Receive (Ring) Receive (Tip) Shield Transmit (Ring) Transmit (Tip) Shield No connection No connection B.4 X.21 INTERFACE D-sub-15 female connector (DTE/DCE orientation) Pin # Signal Frame Ground T - Transmit Data-A (DTE Source) C - Control-A (DTE Source) R - Receive Data-A (DCE Source) I - Indication-A (DCE Source) -
Page 63: Rs-232 Console Interface
B.5 RS-232 CONSOLE INTERFACE RJ-45 non-shielded connector (EIA-561) Pin # Signal DSR (out) CD (out) DTR (in) Signal Ground RD (out) TD (in) CTS (out) RTS (in) B.6 ETHERNET INTERFACE RJ-45 non-shielded connector Pin # Signal No connection No connection No connection No connection... - Page 64 NOTES _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ © Copyright 2012. Patton Electronics Company All Rights Reserved...
