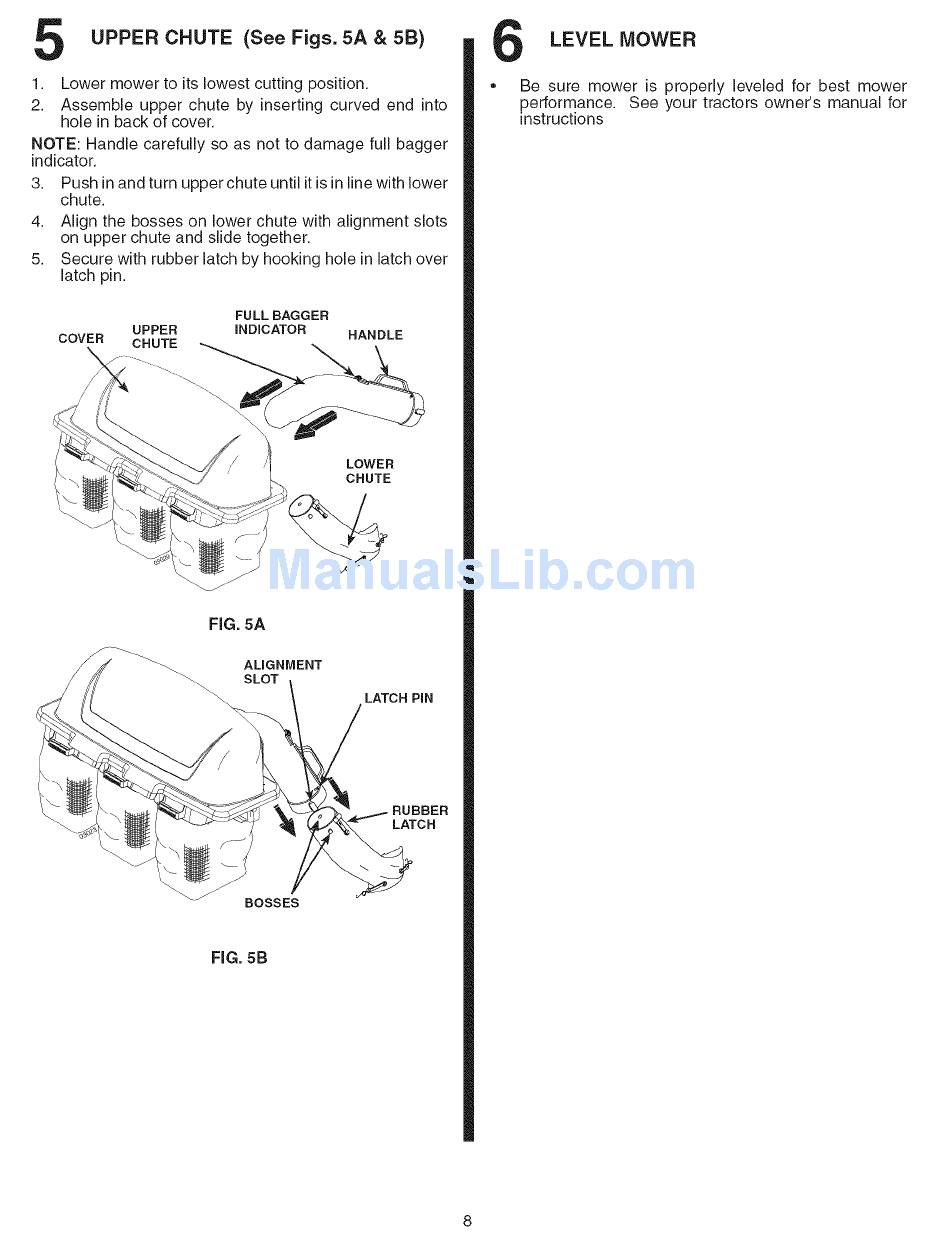

UPPER CHUTE
(See Figs. 5A & 5B)
1.
Lower mower to its lowest cutting position.
2.
Assemble upper chute by inserting curved end into
hole in back of cover.
NOTE: Handle carefully so as not to damage full bagger
indicator.
3.
Push in and turn upper chute until it is in line with lower
chute.
4.
Align the bosses on lower chute with alignment slots
on upper chute and slide together.
5.
Secure with rubber latch by hooking hole in latch over
latch pin.
UPPER
COVER
CHUTE
FULL BAGGER
INDICATOR
HANDLE
LOWER
CHUTE
FIG. 5A
ALIGNMENT
SLOT
LATCH PIN
RUBBER
LATCH
J
BOSSES
FiG. 5B
LEVEL MOWER
Be sure mower is properly leveled for best mower
performance.
See your tractors owner's manual for
instructions
