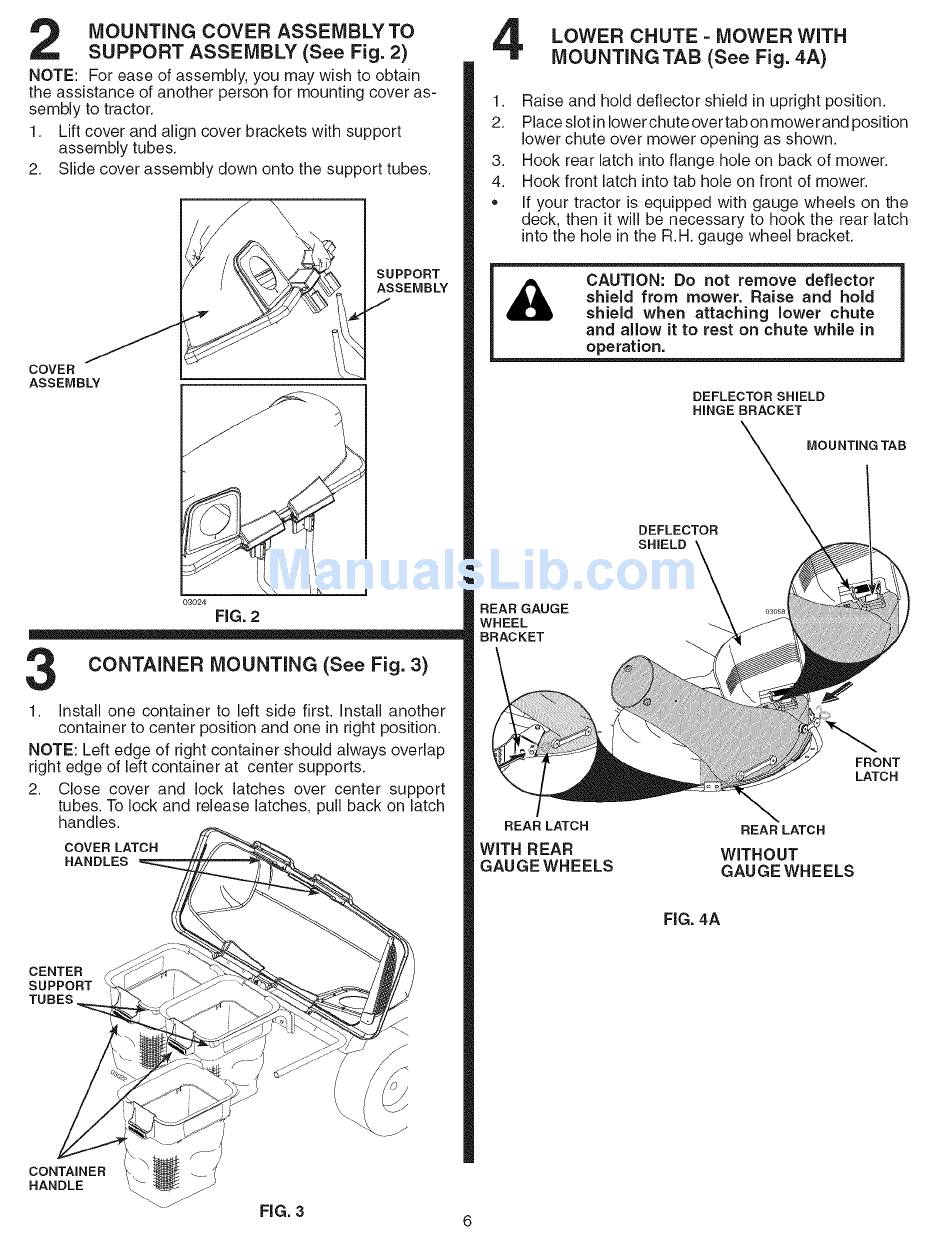

MOUNTING
COVER ASSEMBLY
TO
SUPPORT
ASSEMBLY
(See Fig. 2)
NOTE: For ease of assembly, you may wish to obtain
the assistance of another person for mounting cover as-
sembly to tractor.
1.
Lift cover and align cover brackets with support
assembly tubes.
2.
Slide cover assembly down onto the support tubes.
COVER
ASSEMBLY
SUPPORT
ASSEMBLY
03024
FIG. 2
CONTAINER
MOUNTING
(See Fig. 3)
1.
Install one container to left side first. Install another
container to center position and one in right position.
NOTE: Left edge of right container should always overlap
right edge of left container at center supports.
2.
Close cover and lock latches over center support
tubes. To lock and release latches, pull back on latch
handles.
COVER LATCH
HANDLES
CENTER
SUPPORT
TUBES
LOWER
CHUTE - MOWER WiTH
MOUNTING
TAB (See Fig. 4A)
1.
Raise and hold deflector shield in upright position.
2.
Place slot in Iowerchute overtab on mowerand position
lower chute over mower opening as shown.
3.
Hook rear latch into flange hole on back of mower.
4.
Hook front latch into tab hole on front of mower.
If your tractor is equipped with gauge wheels on the
deck, then it will be necessary to hook the rear latch
into the hole in the R.H. gauge wheel bracket.
CAUTION:
Do not remove deflector
shield from
mower.
Raise and hold
shield
when
attaching
lower
chute
and allow it to rest on chute while in
operation.
DEFLECTOR
SHIELD
HINGE BRACKET
MOUNTING TAB
DEFLECTOR
SHIELD
REAR GAUGE
WHEEL
BRACKET
FRONT
LATCH
REAR LATCH
WITH REAR
GAUGE WHEELS
REAR LATCH
WITHOUT
GAUGE WHEELS
FIG. 4A
CONTAINER
HANDLE
FIG. 3
6
