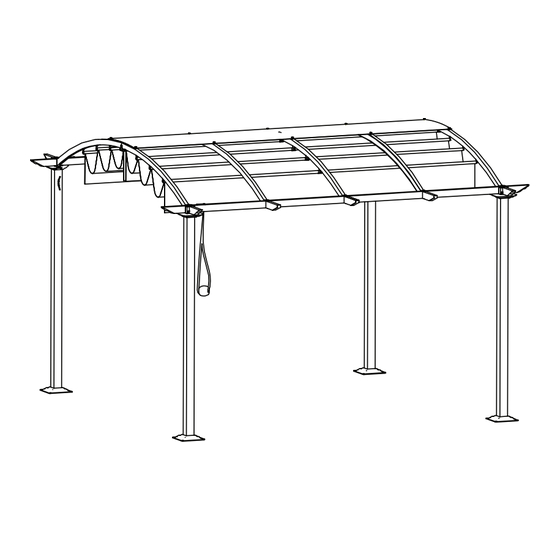

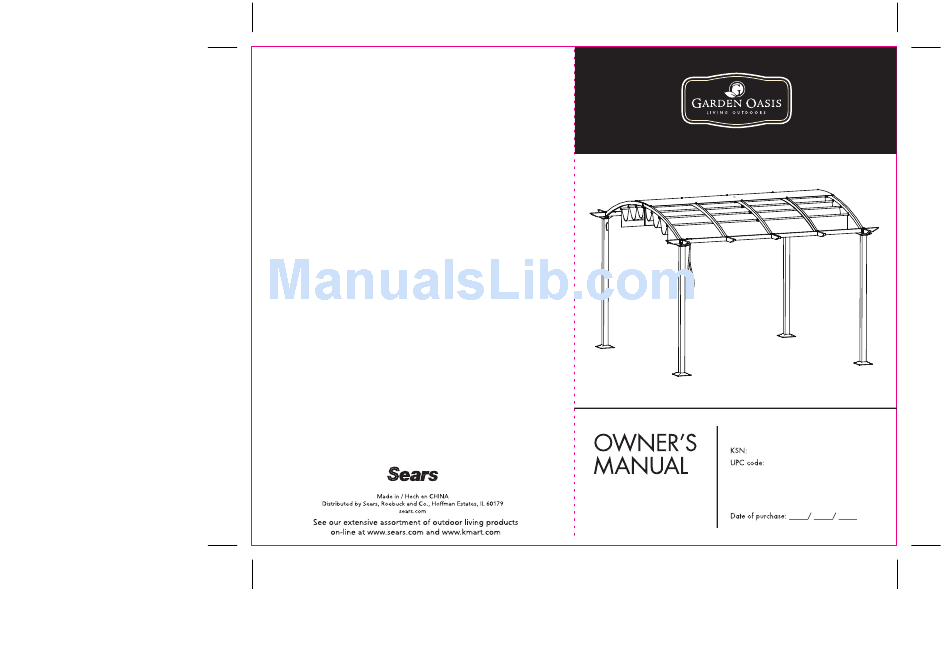

- Page 1 Product Code: D71 M83028 02628062-8 805670024222 11 ft x 11 ft CURVED PERGOLA...
- Page 2 IMPORTANT SEARS INSISTS ON THE HIGHEST STANDARDS OF FURNITURE. EACH PIECE HAS BEEN CAREFULLY INSPECTED BEFORE SHIPMENT. IN CASE OF PROBLEM, DO NOT RETURN TO THE STORE, CALL YOTRIO CORPORATION AT PHONE# 1-866-905-4107 BETWEEN THE HOURS OF 8:30 AM TO 5:00 PM PST, MONDAY THROUGH FRIDAY, FOR ANY QUESTIONS OR PROBLEM YOU MAY HAVE.
- Page 3 11 x 11 ft Curved Pergola Assembly Instructions GFM00110B PARTS LIST PARTS NAME DESCRIPTION 1 PC Tow Rope Crossbeam 1 1 PC Tow Rope Crossbeam 2 Top Tube 1 PC Bending Tube 1 2 PCS Bending Tube 2 2 PCS Side Bending Tube 1 2 PCS Side Bending Tube 2...
- Page 4 11 x 11 ft Curved Pergola Assembly Instructions GFM00110B PARTS LIST PARTS NAME DESCRIPTION M6*16 Nuts & Bolts 72 PCS 10 PCS M6*35 Nuts & Bolts 8 PCS M6*72 Nuts & Bolts Rope Holder 2 PCS Top Tube Connector 1 PC 4 PCS Base Decorative Base 1...
- Page 5 11 x 11 ft Curved Pergola Assembly Instructions GFM00110B Step 1: Insert Side Bending Tube 1 (F) into Side Bending Tube 2 (G), then align all bolt holes and fasten by using M6*16 Nuts & Bolts (N). Step 2: Insert Bending Tube 1 (D) into Bending Tube 2...
- Page 6 11 x 11 ft Curved Pergola Assembly Instructions GFM00110B Step 3: Put the tube joint of Tow Rope Crossbeam 1 (A) and Tow Rope Crossbeam 2 (B) close to Top Tube (C), then embed Top Tube Connector (R) into joint and fasten by using M6*16 Nuts &...
- Page 7 11 x 11 ft Curved Pergola Assembly Instructions GFM00110B Step 7: Unfold the Replacement Canopy (K), insert the tube joint on Canopy (K) one with another. Then put it close to Top Tube (C) and tighten by using M6*35 Nuts & Bolts (O). Step 8: Insert the Sliding Tube (X) into the Replacement Canopy (K) and pass through pulley until it reaches to the other end.
- Page 8 11 x 11 ft Curved Pergola Assembly Instructions GFM00110B Step 9: Lay the Sunshade (J) onto the top of the pergola. Line up the bolt holes on the Sunshade with corresponding holes on the top, then screw in the M6*16 Nuts & Bolts (N).
- Page 9 11 x 11 ft Curved Pergola Assembly Instructions GFM00110B Step 10: 1). Embed Decorative Base 1 (T) and Decorative Base 2 (U) into Tow Rope Leg Tube (H) and Leg Tube (I) respectively, then screw in the M6*16 Nuts & Bolts (N). 2).
- Page 10 11 x 11 ft Curved Pergola Assembly Instructions GFM00110B Step 11: 1). Lift the whole top and make sure all leg tubes are in place. Align all bolt holes on the top tube with corresponding bolt holes on Leg Tube H and I and screw together by using M6*16 Nuts &...
- Page 11 11 x 11 ft Curved Pergola Assembly Instructions GFM00110B Step 13: Insert the Ground Spike (Y) into the corresponding holes on the Base (S) to fix leg tubes. See our extensive assortment of outdoor living products on-line at www.sears.com and www. kmart.com.
- Page 12 CARING FOR YOUR OUTDOOR GAZEBO Please keep this page for your records. CARING FOR STEEL FRAMES Though its powder-coated finish is rust-resistant, steel is prone to rust over time with exposure to the elements. In case of rust or scratches, lightly sand the affected area and apply touch-up paint.
