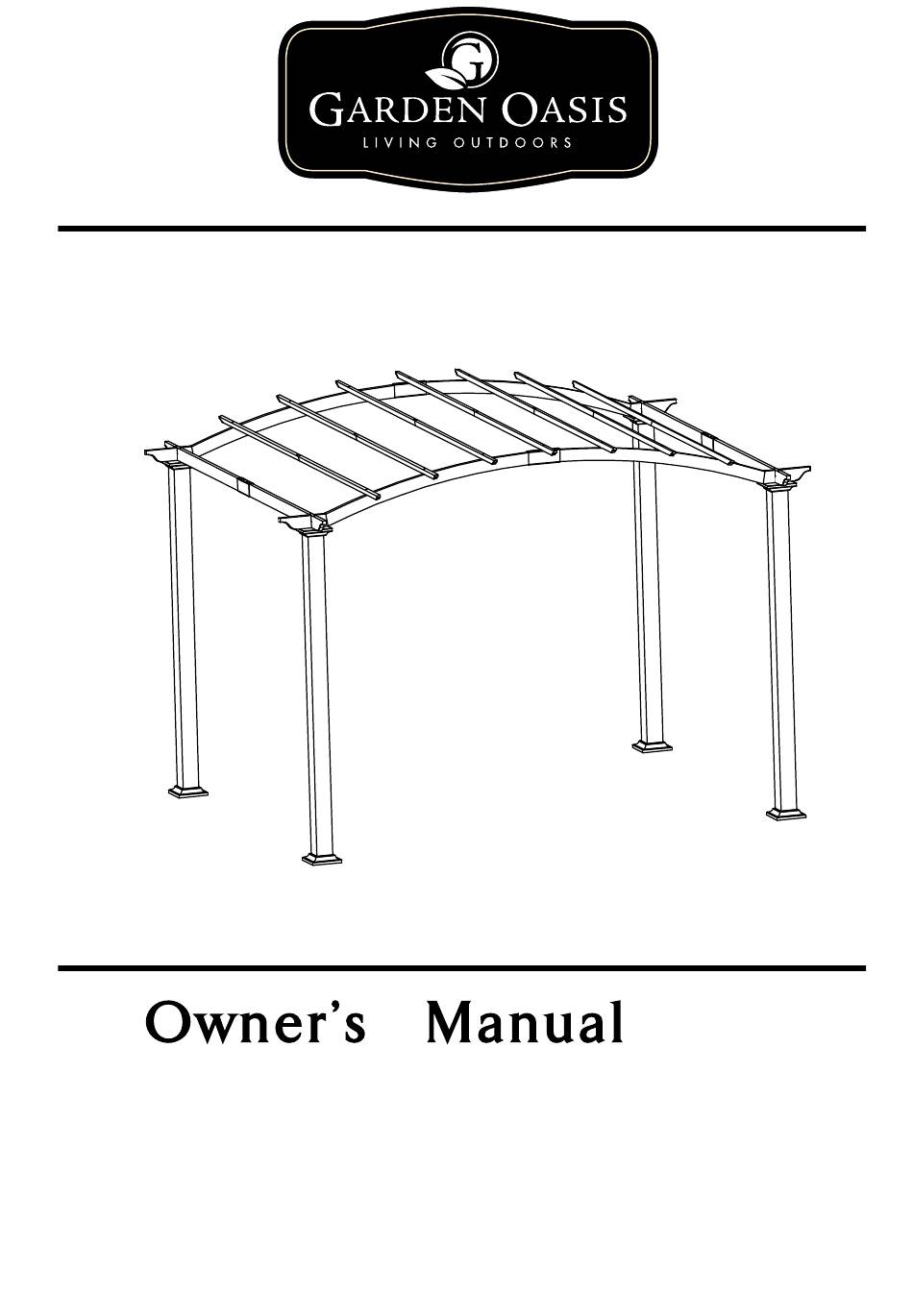

- Page 1 Steel Pergola With Open Roof Product Code: D71 M23737 KSN Code: 04733844-7 UPC Code: 749241313141 Date of purchase: _____/ _____/ _____...
-
Page 2: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. If any parts is missing or damaged, do not attempt to assemble the product. Two to four people are needed for assembly. In order to avoid damage to the shelter and its components, use appropriate tools. - Page 4 Parts list Item Description Illustration Post Base cap Flange base Roof cap Long crossbar Short crossbar Connector 1 Connector 2 Long roof tube Short roof tube Stake Short screw M6 x 15mm Medium screw M6 x 40mm Long screw M6 x 95mm Hex wrench...
- Page 5 1. Insert base cap (B) into post (A), then using screw (AA) secure base flange (C) on the bottom of post (A). Place roof cap (D) on the top of post (A). Repeat for remaining 3 posts (A).
- Page 6 AA AA AA AA 1. Slide long crossbar (E) into connector 1 (G) halfway, then insert another long crossbar (E) into the other side of connector 1 (G), then secure them by using 4 short screws (AA) as figure shown. Repeat for the rest 2 long crossbars (E).
- Page 7 AA AA 1. Slide short crossbar (F) into connector 2 (H) halfway, then insert another short crossbar (F) into the other side of connector 2 (H), then secure them by using 4 short screws (AA) as figure shown. Repeat for the rest 2 short crossbars (F).
- Page 8 1. Insert the long roof tube (I) into short roof tube (J), then secure them by using short screw (AA). Repeat for all remaining long roof tube (I) and short roof tube (J).
- Page 9 You need 3 persons for this step. 1. Place the assembled long crossbar set (E) over the post (A), then secure long crossbar set (E) through roof cap (D) onto post (A) by using long screw (CC) as figure shown. Repeat for remaining long crossbar set (E).
- Page 10 You need 3 persons for this step. 1. Place the assembled short crossbar set (F) over the long crossbar set (E), then secure short crossbar set (F) through long crossbar set (E) and roof cap (D) onto the post (A) by using long screw (CC) as shown.
- Page 11 1. Place the assembled roof tube set (I, J) onto the assembled long crossbar set (E), then secure them by using medium screw (BB). Repeat for all assembled roof tube set (I, J).
- Page 12 X 16 1. Raise up the base cap (B), put the stake (K) through the base flange (C) and insert the into the earth, then put down the base cap (B). 2. Remove all gazebo assembly stickers.
- Page 13 steel frame periodically with liquid wax for maximum protection Bond Vast Industrial Limited Bao Tang Industrial Jing Lian Chiao Tou Town Dong Guan City Guang Dong Province China 523 538 Please refer to part numbers when reordering For questions or comments about product: Email: customerservice@bondvast.com or Call toll-free: 1-800-961-9838 Made in / Hecho en CHINA Distributed by Sears, Roebuck and Co., Hoffman Estates, IL 60179...
