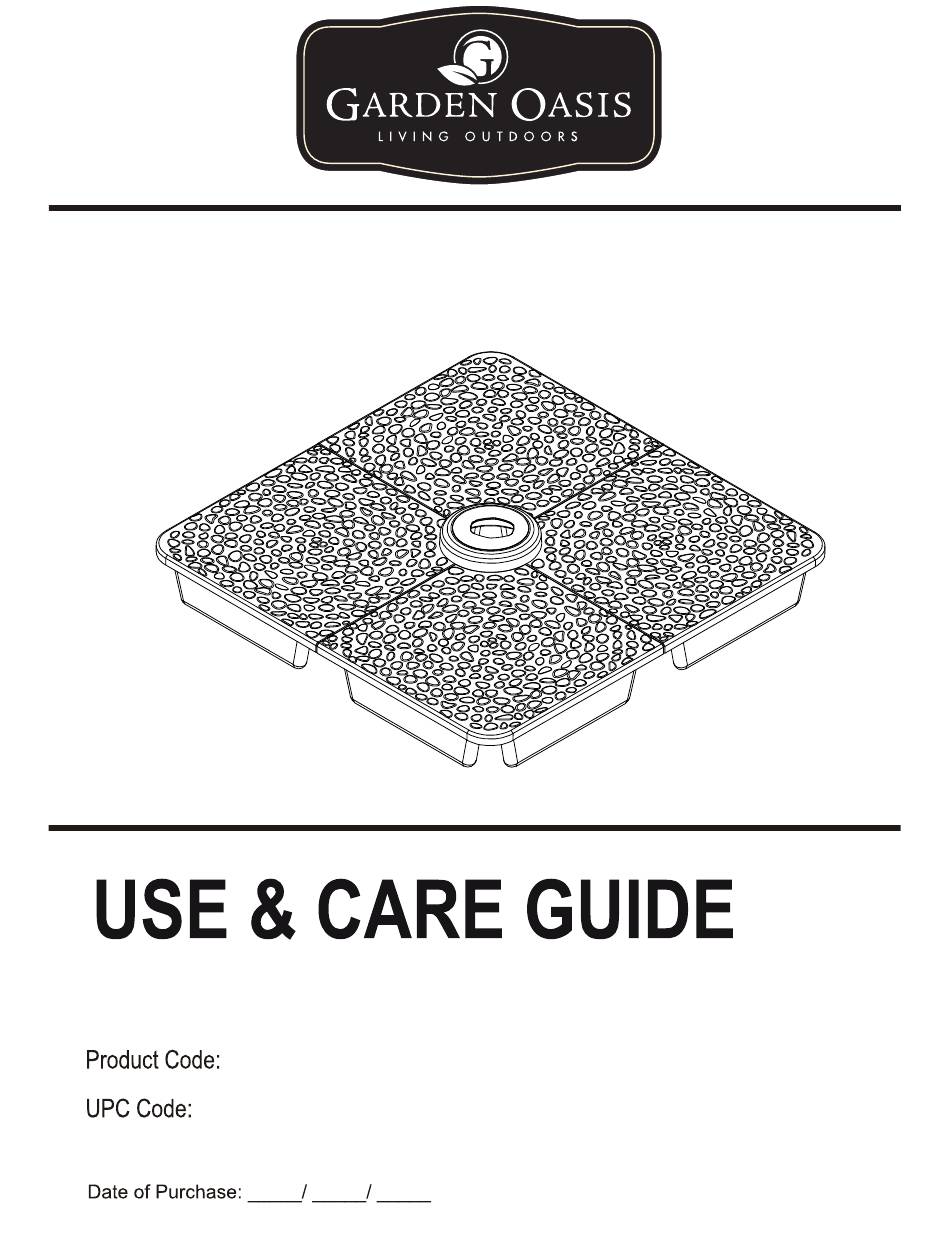

- Page 1 OFFSET UMBRELLA BASE KIT COBBLESTONE 08824341-5 8-48681-03664-8...
-
Page 2: Table Of Contents
Thank you for your purchase Thank you for your purchase! We are pleased that you have chosen Sears for your outdoor furniture purchase. We hope that you enjoy the unmatched quality, comfort, and style of your new patio set. Every piece is meticulously considered all the way down to the smallest details, exclusively for you, by our world class design team. -
Page 3: Safety Information
Safety Information Umbrella Base Set Up Ensure that all parts are assembled properly and fully tightened as per the instructions. Examine Your Umbrella Base Examine occasionally to ensure that there are no loose parts. If loose parts are found, they must be retightened fully before additional use. Warranty 1 YEAR WARRANTY FOR GRC COVER AND PLASTIC BASE KIT WHAT IS COVERED... -
Page 4: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY To prevent damage, place all parts on a soft surface during assembly. Remove all protective caps before beginning assembly. It takes about 20 minutes for one person to complete all the assembly. CAUTION: The GRC cover is fragile, please handle and assemble with care. -
Page 5: Assembly Instruction
Assembly Instruction Attaching the plastic base kit ATTACH PLASTIC BASE KIT TO FIT TOGETHER AS PICTURE SHOW. - Page 6 Assembly Instruction (continued) Filling the plastic base with sand POUR SAND INTO THE PLASTIC BASE KIT ONE BY ONE. AFTER FILLING WITH SAND ONLY, MAKE THE SAND FLAT. FOR STABILITY OF YOUR UMBRELLA BASE, THE RECOMMENDED MAXIMUM WEIGHT OF THE SAND TO BE PLACED INTO PLASTIC BASE KIT “A”...
- Page 7 Assembly Instruction (continued) Placing the GRC Cover onto the fully filled sand plastic base kit PLACE GRC COVER “B” ONTO THE PLASTIC BASE KIT “A” WITH FULL SAND AS SHOWN IN THE PICTURE BELOW.
- Page 8 Assembly Instruction (continued) Placing the pole cover onto the GRC cover PLACE THE POLE COVER “C” ONTO THE RECESS ON THE GRC COVER “B” AS SHOWN IN THE PICTURE BELOW.
-
Page 9: Customer Service
Customer Service YOTRIO CORPORATION 1100 Coiner Ct., City of Industry, CA 91748 1-626-269-6399 1-866-905-4107 SEVICE HOURS: MONDAY-FRIDAY 8:30 AM TO 5:00 PM PST / 11:30 AM TO 8:00PM EST E-MAIL: customerservice@yotrious.com... - Page 10 Email: customerservice@yotrious.com or Call toll-free: 1-866-905-4107 Made in CHINA / Hecho en CHINA...
