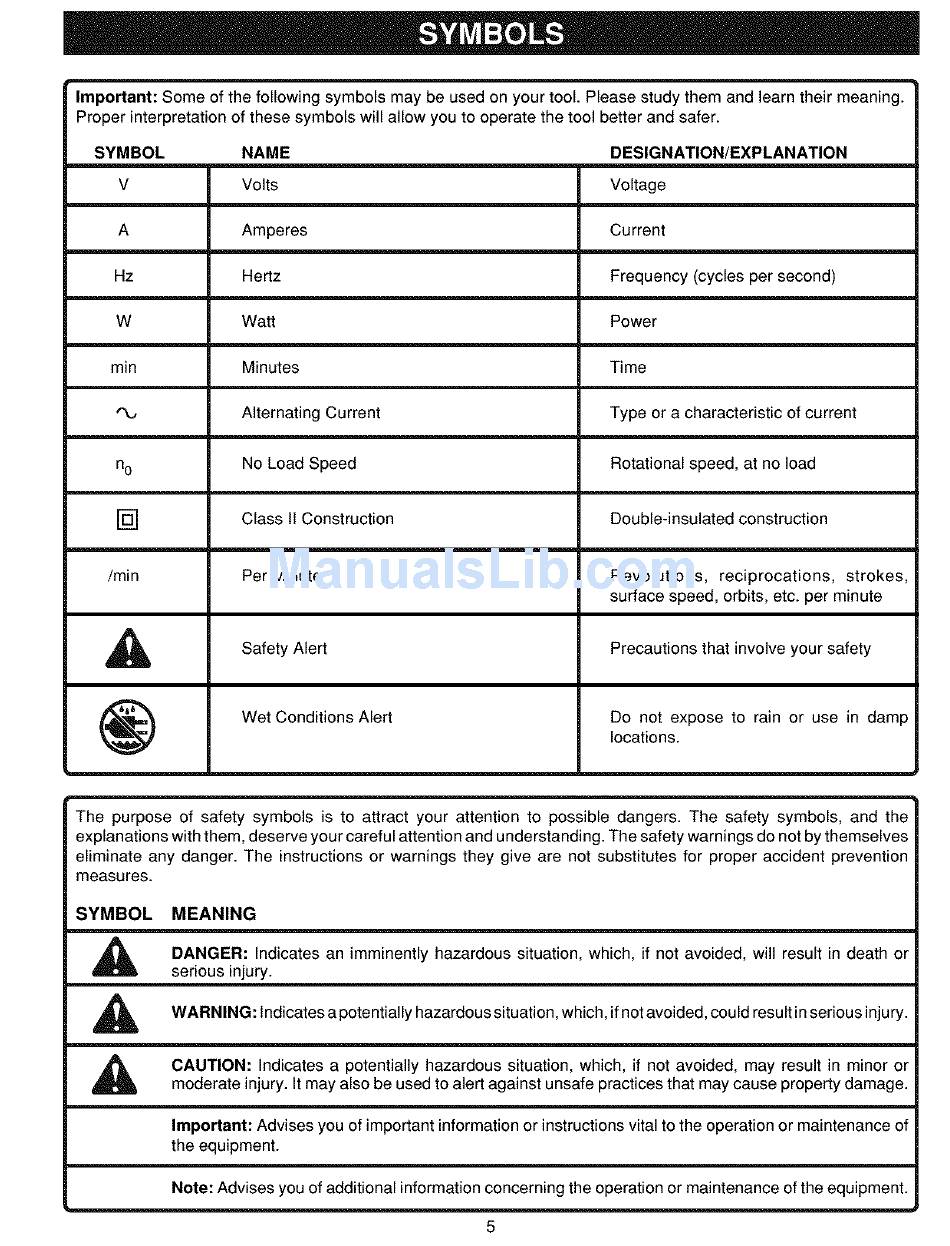

Symbols - Craftsman 315.175340 Operator's Manual

Important:Someofthefollowing symbols maybeusedonyourtool.Please study themandlearntheirmeaning.
Proper i nterpretation ofthesesymbols willallowyouto operate thetoolbetter andsafer.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
Alternating Current Type or a characteristic of current
no No Load Speed Rotational speed, at no load
[] Class 11 Construction Double-insulated construction
/min Per Minute Revolutions, reciprocations, strokes,
surface speed, orbits, etc. per minute
,_ Alert Precautions that involve
Safety safety your
Wet Conditions Alert Do not expose to rain or use in damp
locations.
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the
explanations with them, deserve your careful attention and understanding. The safety warnings do not by themselves
eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention
measures.
SYMBOL MEANING
,_ DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result in death or
serious injury.
i_ WARNING: Indicates a potentially hazardous situation, which, if not avoided, could result in serious injury.
,_ CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices that may cause property damage.
Important: Advises you of important information or instructions vital to the operation or maintenance of
the equipment.
Note: Advises you of additional information concerning the operation or maintenance of the equipment.
5
