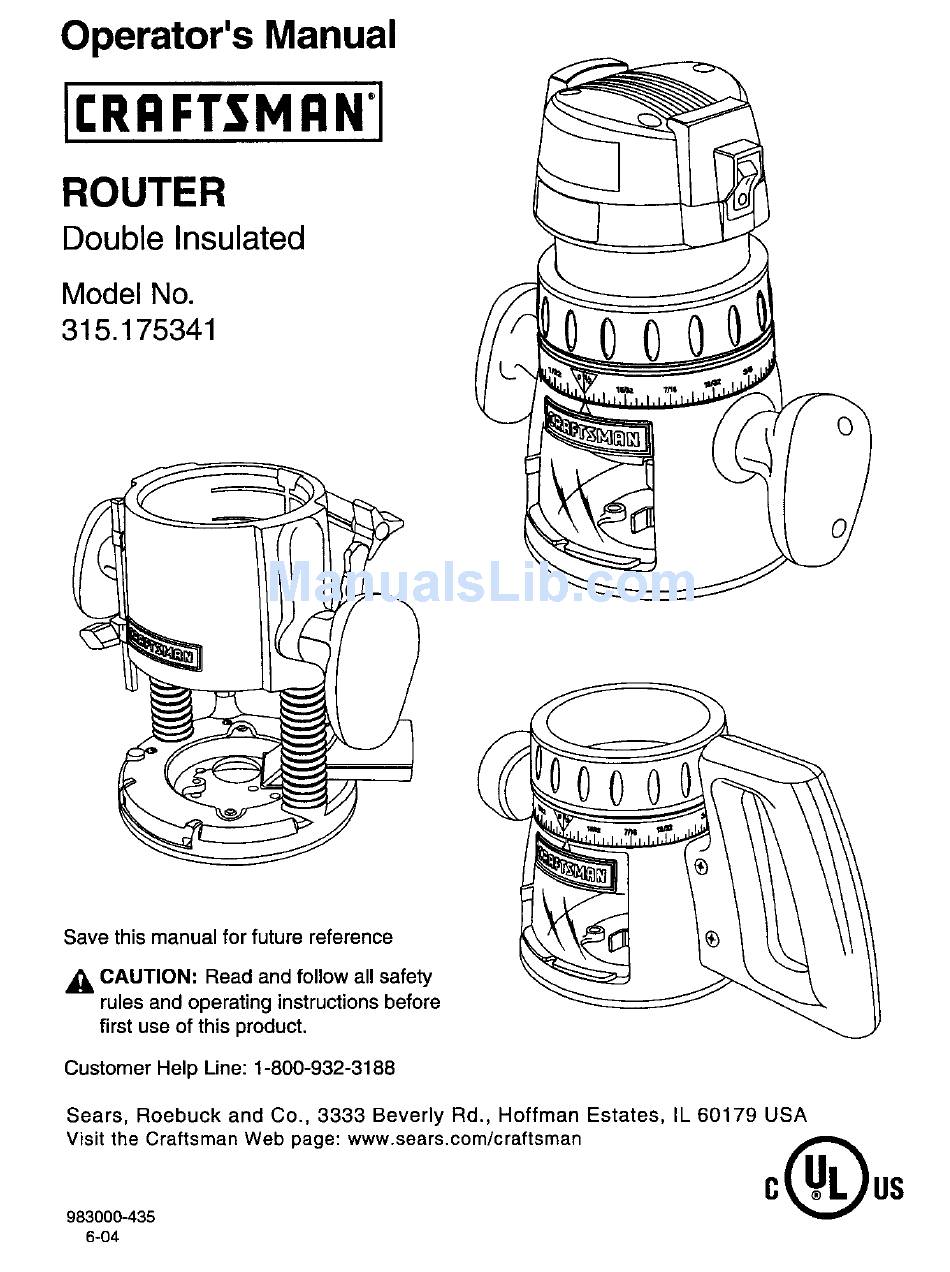

Operator's Manual
ROUTER
Double Insulated
Model No.
315.175341
Save this manual for future reference
_,
CAUTION:
Read and follow all safety
rules and operating instructions before
first use of this product.
Customer
Help Line: 1-800-932-3188
Sears,
Roebuck
and Co.,
3333
Beverly
Rd.,
Hoffman
Estates,
IL 60179
USA
Visit the Craftsman
Web page:
www.sears.com/craftsman
983000-435
6-04

Advertisement

Table of Contents
loading

Summary of Contents for Craftsman 315.175341

  • Page 1 Save this manual for future reference CAUTION: Read and follow all safety rules and operating instructions before first use of this product. Customer Help Line: 1-800-932-3188 Sears, Roebuck and Co., Visit the Craftsman Web page: 983000-435 6-04 3333 Beverly Rd., Hoffman www.sears.com/craftsman Estates,...
  • Page 2 • Customer Service Information ... FULL ONE YEAR WARRANTY ON CRRFT$1vlRH ROUTER If this CRRFTSHRN tool fails to give complete satisfaction within one year from the date of purchase, return it to the nearest Sears store in the United States, and Sears will repair it, free of charge.
  • Page 3: Work Area

    WARNING: Read and understand all instruc- tions. Failureto follow all instructionslisted be- low, may resultin electric shock,fire and/or seri- ous personal injury. SAVE THESE INSTRUCTIONS WORK AREA • Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. •...
  • Page 4: Additional Safety Rules

    Followingthis rule will reduce the risk of electric shock or fire. • Never attempt to use the router motor without first installing it in the fixed base (Model No. 315.175310), D-handle base (Mode] No. 315.175300), or plunge base (Model No.
  • Page 5 Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpre- tation of these symbols will allow you to operate the tool better and safer. SYMBOL NAME Volts Amperes Hertz Watt Minutes "L, Alternating Current...
  • Page 6 The followingsignalwordsand meaningsare intendedto explainthe levelsof risk associatedwith this product. SYMBOL MEANING DANGER: WARNING: CAUTION: SERVICE Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest AUTHORIZED SERVICE CENTER for repair.
  • Page 7: Double Insulation

    For service, we suggest you return the tool to your nearest authorized service center for repair. When servicing, use only identical Craftsman replacement parts. ELECTRICAL CONNECTION The router has a precision built electric motor. It should be connected to a power supply that is 120 volts, 60 Hz, AC only (normal household current).
  • Page 8 The router has a conveniently located toggle switch. GOLDSPINDLE LOCKBUTTON SPINDLE LOCK The spindle lock secures the spindlewhile you make adjustments and acts as a retainer to keep the router body from coming out of the base. MOTOR_ HOUSING_ 1-1/2 in.
  • Page 9: Packing List

    Failure to do so could result in serious personal injury. WARNING: The router should never be connected to a power supply when you are assembling parts, making adjustments,cleaning, performing maintenance, or when the tool is not in use.
  • Page 10 1. Unplug the router, WARNING: Failure to unplugthe tool could result in accidental starting causingserious. Place the router upside down with the Craftsman label away from you. Loosen the locking arm on the base. Depress and hold the gold spindle lock button. The gold spindle lock button will not depress fully unless it is in line with the hole in the collet.
  • Page 11 1. Unplug the router. • 1, WARNING: Failure to unplug the tool could result in accidental starting causing serious injury. Place the router on a flat sudace. Loosen the locking knob. Depress and hold the gold spindle lock button. The gold spindle lock button will not depress fully unless it is in line with the hole in the collet.
  • Page 12: Adjusting Depth Of Cut

    Based on these considerations,choose a depth of cut that will not place excessive strain on the router motor. If you find that extra force is needed or that the motor speed stows down considerably,turn off the router and reduce the depth of cut.
  • Page 13 Place the router on a flat surface. Loosen the stop bar knob. Unlock the plunge lock lever. Plunge the router until the tip of the cutter touches STOP KNOB the flat surface. Lock the plunge lock lever.
  • Page 14 POINT IN__ RING Tighten the locking arm securely. Note: To adjust the depth of cut when the router is mounted to a router table, turn the depth adjustment ring untilthe cutter reaches the desired depth of cut. LOCKING Fig.
  • Page 15 Secure the workpiece. Plug the router into a power source. Hold the router firmly with both hands. Turn on the router and let the motor build to its full speed. Feed the cutter slowly into the workpiece. Note: Do not let the cutter contact the workpiece before starting the router and allowing it to devetop full speed.
  • Page 16 When routing, the cutter rotates clockwise. Therefore, you should feed the router into the workpiece from left to right. When you feed the router from left to right, the rotation of the cutter pulls the router against the workpiece. If you feed the router in the opposite direction, the rotational forces of the spinning bit tend to throw the router away from the workpiece.
  • Page 17: Rate Of Feed

    The best rate of feed is one that does not slow down the router motor more than one-third of its no load speed. If you feed the router too fast, it will take large chips out of the wood and leave gouge marks. If you feed the router too slowly, it will scorch or burn the wood.
  • Page 18: Depth Of Cut

    (and, also, the possibility of damage to the router motor and bit). A deep cut requires a slower feed than a shallow one. A cut that is too deep causes you to slow the feed so much that the bit no longer cuts;...
  • Page 19 WARNING: When servicing, use only identical Craftsman replacement parts. Use of any other part may create a hazard or cause product damage. GENERAL Only the parts shown on the parts list, are intended to be repaired or replaced by the customer. All other parts...
  • Page 20 I* FORCARBIDE TIPPEDEDGEFORMING BITS I WARNING: The use of attachments or accessories not listed above might be hazardous. ROUTER TABLES With a router table your router is converted into a high- speed shaper. WARNING: Only use router tables with proper guarding for the cutter and with "on board"...
  • Page 22 Sears repair center. Contact your nearest Sears retail store for service center information. MOTOR - MODEL NUMBER an Important part of the double 315.175341 insulated system. To avoid the be performed by your nearest...
  • Page 23: Parts List

    CRAFTSMAN ROUTER The model number will be found on a plate attached to the motor housing.Always mention the model number in all correspondence regardingyour ROUTER MOTOR or when ordering repair parts. SEE BACK PAGE Part Description 690141001 Shaft Lock Spring ...
  • Page 24 For repair-in your home-of lawn and garden equipment, no matter who made it, no matter For the replacement parts, accessories and owner's manuals that you need to do-it-yourself. For Sears professional installation of home appliances and items like garage door openers and water heaters. 1-800-4-MY-HOME Call anytime, day or night (U.SA www.sears.com...
