Frigidaire CFEF2415LWA Use & Care Manual
  1. Manuals
  2. Brands
  3. Frigidaire Manuals
  4. Ranges
  5. CFEF2415LWA
  6. Use & care manual
Frigidaire CFEF2415LWA Use & Care Manual

Frigidaire CFEF2415LWA Use & Care Manual

Hide thumbs Also See for CFEF2415LWA:

Advertisement

Table of Contents

LE OF CONTE
..........
:6 @_
Installation Instructions ....................................... 9
CaPe&
Before Setting Surface Controls ............................
11
Setting Surface Controls ......................................
15
16
_4
www,frigidaire.com
USA 1-800-944-9044
www.frigidaire.ca
Canada 1-800-265-8352

Advertisement

Table of Contents
loading

Related Manuals for Frigidaire CFEF2415LWA

Summary of Contents for Frigidaire CFEF2415LWA

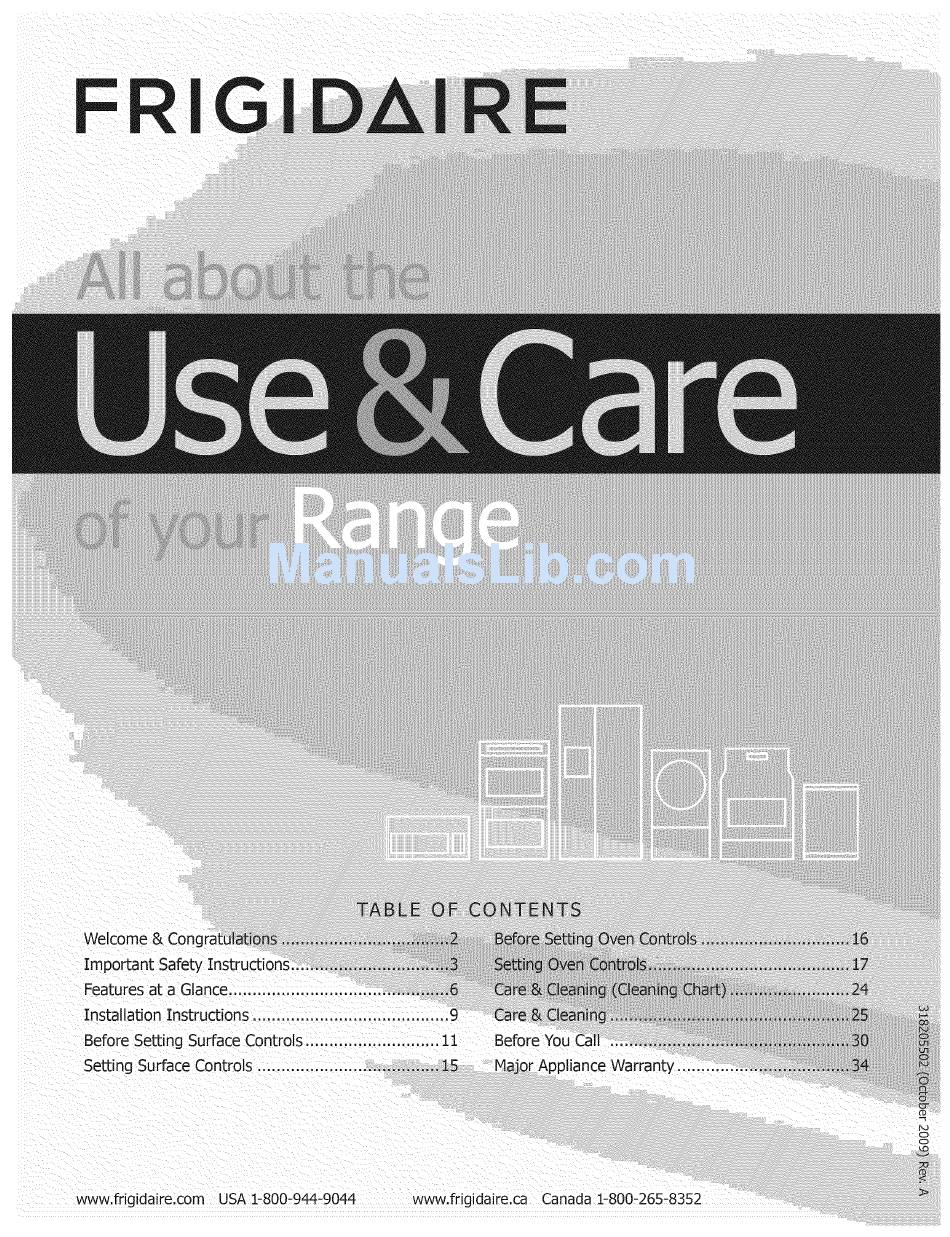

  • Page 1 LE OF CONTE ..:6 @_ Installation Instructions ........9 CaPe& Before Setting Surface Controls ......Setting Surface Controls ........www,frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352...

  • Page 2: Product Registration

    Congratulations on your purchase of a new appliance! Product Registration At Electrolux Major Appliances, we are very proud of our product and are completely committed to providing Register Your Product you with the best service possible. Your satisfaction is our The PRODUCT number one priority.
  • Page 3 and in Canada with CSA C22.1 PART l=latest Read all instructions before using this appliance. edition and local code requirements. Install only Save these instructions for future reference. per installation instructions provided in the literature DEFINITIONS package for this range. A This is the safety alert symbol.
  • Page 4 • DO NOT TOUCH SURFACE UNITS, AREAS NEAR THESE UNITS, OVEN HEATING ELEMENTS OR INTERIOR SURFACES OF THE OVEN OR WARMER Electronic controllers can be damaged by cold DRAWER (if equipped). Both surface units and oven temperatures. When you use your appliance for heating elements may be hot even though they are the first time, or if it has not been used for a long dark in color.
  • Page 5 FOR GLASS COOKTOP ONLY Do not touch a hot oven light bulb with a damp cloth. Doing so could cause the bulb to break. • Do Not Clean or Operate a Broken Cooktop-- Disconnect the appliance or shut off the power to the cooktop should break, cleaning solutions and spillovers appliance before removing and replacing the bulb.
  • Page 6 Your Range Features: Oven temperature knob Element control knobs Element On/Off indicator light Oven On/Off indicatorlight Oven selector knob Oven light switch Electric outlet 6" right rear coil 6" left element coil element 6" left coil element 8" right front coil element cooktop Broil element...
  • Page 7 Your Range Features," Electronic oven control Element control knobs Element On/Off indicator light ght light switch Electric outlet light switch 6" left rear 6" right rear coil coil element element 6" left front 8" right front coil element_ coil element Porcel_ cooktop Broil element...
  • Page 8 Your Range Features: Electronic oven control with kitchen timer Night The features shown for your appliance may vary according to model type & color. Element control knobs Hot surface Element On/Off indicator light indicator light Night light switch Electric outlet Oven light switch 6"...

  • Page 9: Electrical Hook-Up

    To eliminate the risk of burns or fire SIDE VIEW by reaching over heated surface units, cabinet storage space located ]:nstallation and service must be performed above the surface units should be avoided. If cabinet storage is to be by a qualified technician, li:!!:!:i:_:i:i:i:i:i:!:i:i:!8!:ii:!i!i provided, the risk can be reduced by...

  • Page 10: Night Light Replacement

    Night Light Replacement (Some models) Leveling For good baking results, your range should be level. To remove and replace the fluorescent light: Screw type leveling legs are provided at each corner 1. Lift up the control panel cover. of the range at the base. Remove the storage drawer to adjust the leveling legs.
  • Page 11 Cool{ware material types Using proper cookware The size and type of cookware used will influence the The cookware material determines how evenly and quickly setting needed for best cooking results. Be sure to follow heat is transferred from the surface element to the pan the recommendations for using proper cookware as bottom.
  • Page 12 Specialty Pans & Trivets Canning Tips & Information Use tested recipes and follow instructions carefully. Wokswith fiat bottoms suitable for use on your cooktop Check with your local Cooperative Agricultural are available in most cookshop or hardware stores. Extension Service or a manufacturer of glass jars for Round-bottomed woks (with a support ring that does the latest canning information.
  • Page 13 Ceramic Glass Cooktop (model C only) About the Radiant Surface Elements The ceramic cooktop has radiant surface elements The element temperature rises gradually and evenly. located below the surface of the glass, The design of As the temperature rises, the element will glow red. To the ceramic cooktop outlines the area of the surface maintain the selected setting, the element will cycle ON element underneath.
  • Page 14 Element Hot surface indicator light Your appliance can be equipped with two different types (Model C only) of radiant surface control indicator lights that will glow The hot surface indicator light is located on the control on the backguard = the Element On indicator light and the panel (Figure 2) between the two right element control hot surface indicator lights.

  • Page 15: Operating The Surface Elements

    Surface cooking settings Operating the Surface Elements use the chart to determine the correct setting for the type To Operate the Surface Elements of food you are preparing. i. Place correctly sized cookware on the surface Note" The size and type of cookware used will influence element.
  • Page 16 Oven vent location Arranging oven racks ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS Each oven has its own vent as shown below (Figure COOL (PRIOR TO OPERATING THE OVEN). Always use 1). When the oven is on, warm air is released through oven miLLs when using the oven.

  • Page 17: Temperature Control Knob

    Selector Control Knob Temperature Control Knob br0i[ gritter 200°F 95°C bake cuire Baking Broiling To Set the Controls for Normal Baking: To Set the Controls for Broiling= Arrange oven racks while the oven is still coo!. Arrange oven racks while the oven is still cool. For rare Turn the Selector Contro! Knob to the Bake position.

  • Page 18: Control Pad Features

    Control pad features READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN, For satisfactory use of your oven, become familiar with the various features and functions of the oven as described below. Detailed instructions for each feature and function follow later in this Use & Care Guide, The oven function will not work if the time of day clock is not set.
  • Page 19 The oven function will not work if the time of day dock To turn the time of day display OFF or ON in the display press and hold the CLOCK pad for 8 seconds (the control is not set. will beep once) and then release. This feature does not TO SET THE CLOCK remove the set time of day from the memory of the When the range is first plugged in, or when the power...
  • Page 20 TO SET OR CHANGE TEMPERATURE - If using a Searing Grill (available by mail order), preheat the grill for 5 to 10 minutes before placing your meat. NORMAL BAKING - DO NOT use the broil pan without the insert. DO NOT The oven can be programmed to bake at any temperature cover the broil pan insert with foil, The exposed from 170°F to 550°F (77°C to 287°C).
  • Page 21 TO SET THE BAKE TIHE FEATURE The BAKE TIME and START TIME controls operate the Timed Bake Feature. The automatic timer will turn the Use caution when using the automatic timer. oven on and off at the times you select in advance. The Use the automatic timer when cooking cured or...
  • Page 22 SELF-CLEANING What to Expect during Cleaning While the oven isin operation, the oven heals to temperatures A self-cleaning oven cleans itself with high temperatures much higher than those used in normal cooking. Sounds (well above normal cooking temperatures) which of metal expansion and contraction are normal. Odor is eliminate soils completely or reduces them to a fine also normal as the food soil is being removed.
  • Page 23 SELF-CLEANING To Start the Self=Clean Cycle When the Self=Clean Cycle is Completed: *We recommend a 2 hour self-clean cycle for light soils, The time of day will appear in the display window and a 3 hour cycle for average to heavy soils (to assure and the "Door Locked"...

  • Page 24: Cleaning Various Parts Of Your Appliance

    Cleaning various parts of your appliance Before cleaning any part of the appliance, be sure all controls are turned OFF and the appliance is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANING WILL REDUCE THE NUMBER OF MAJOR CLEANING LATER.
  • Page 25 To Clean the Oven Bottom Porcelain enamel oven Cleaning (model A) Clean using hot, soapy water, a mild abrasive cleanser, a soap-filled abrasive pad or oven cleaner following oven cleaner manufacturer's instructions. Adhere to the following cleaning precautions: Allow the oven to cool before cleaning. •...

  • Page 26: To Remove And Replace Storage Drawer

    To Replace Drip Bowls and Surface Elements Surface Elements Drip Bowls Slide the terminal end on the element through the Surface elements can be unplugged and removed to opening in the drip bowl. make cleaning the drip pans easier. The surface elements Align the element support to rest on the rim inside clean themselves when they are turned on.
  • Page 27 Ceramic glass cooktop cleaning & Porcelain enamel cooktop cleaning maintenance (Model C only) instructions (Models A & B only) Consistent and proper cleaning is essential maintaining your Ceramic glass cooktop, Do not use a cooktop cleaner on a hot cooktop. Prior to using your cooktop for the The fumes can be hazardous to your health, and can first time, apply the recommended...
  • Page 28 Cleaning recommendations for the ceramic glass cooktop (Hodel C only) Plastic or foods with a high sugar content: These types of soils need be removed immediately if spilled or melted onto the ceramic cooktop surface. Permanent damage (such as pitting of the cooktop Before cleaning the cooktop, be sure the controls are surface) may occur if not removed immediately, After...

  • Page 29: Removing And Replacing The Lift-Off Oven Door

    Care cleaning of stainless steel Some models are equipped with stainless steel exterior parts. Special care and cleaning are required maintaining the appearance of stainless parts. Refer to Oven door the General Care 8=Cleaning table for detailed cleaning instructions. Removing and replacing the lift-off oven door Figure 3 Figure 4...

  • Page 30: Oven Baking

    Oven baking For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance, Baking Causes...
  • Page 31 Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Range is not level, Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust leveling legs at base of range until the rack is level.
  • Page 32 Areas of Mineral deposits from water and food. Remove using a ceramic-glass cooktop cleaning discoloration with cream. Use cookware with clean, dry bottoms. metallic sheen, Poor baking results, Many factors affect baking results. Make sure the proper rack position is used. Center food in the oven and space pans to allow air to circulate.
  • Page 34 Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.
  • Page 35 LE OF CONTE ..:6 @_ Installation Instructions ........9 CaPe& Before Setting Surface Controls ......Setting Surface Controls ........www,frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352...
  • Page 36 Congratulations on your purchase of a new appliance! Product Registration At Electrolux Major Appliances, we are very proud of our product and are completely committed to providing Register Your Product you with the best service possible. Your satisfaction is our The PRODUCT number one priority.
  • Page 37 and in Canada with CSA C22.1 PART l=latest Read all instructions before using this appliance. edition and local code requirements. Install only Save these instructions for future reference. per installation instructions provided in the literature DEFINITIONS package for this range. A This is the safety alert symbol.
  • Page 38 • DO NOT TOUCH SURFACE UNITS, AREAS NEAR THESE UNITS, OVEN HEATING ELEMENTS OR INTERIOR SURFACES OF THE OVEN OR WARMER Electronic controllers can be damaged by cold DRAWER (if equipped). Both surface units and oven temperatures. When you use your appliance for heating elements may be hot even though they are the first time, or if it has not been used for a long dark in color.
  • Page 39 FOR GLASS COOKTOP ONLY Do not touch a hot oven light bulb with a damp cloth. Doing so could cause the bulb to break. • Do Not Clean or Operate a Broken Cooktop-- Disconnect the appliance or shut off the power to the cooktop should break, cleaning solutions and spillovers appliance before removing and replacing the bulb.
  • Page 40 Your Range Features: Oven temperature knob Element control knobs Element On/Off indicator light Oven On/Off indicatorlight Oven selector knob Oven light switch Electric outlet 6" right rear coil 6" left element coil element 6" left coil element 8" right front coil element cooktop Broil element...
  • Page 41 Your Range Features," Electronic oven control Element control knobs Element On/Off indicator light ght light switch Electric outlet light switch 6" left rear 6" right rear coil coil element element 6" left front 8" right front coil element_ coil element Porcel_ cooktop Broil element...
  • Page 42 Your Range Features: Electronic oven control with kitchen timer Night The features shown for your appliance may vary according to model type & color. Element control knobs Hot surface Element On/Off indicator light indicator light Night light switch Electric outlet Oven light switch 6"...
  • Page 43 To eliminate the risk of burns or fire SIDE VIEW by reaching over heated surface units, cabinet storage space located ]:nstallation and service must be performed above the surface units should be avoided. If cabinet storage is to be by a qualified technician, li:!!:!:i:_:i:i:i:i:i:!:i:i:!8!:ii:!i!i provided, the risk can be reduced by...
  • Page 44 Night Light Replacement (Some models) Leveling For good baking results, your range should be level. To remove and replace the fluorescent light: Screw type leveling legs are provided at each corner 1. Lift up the control panel cover. of the range at the base. Remove the storage drawer to adjust the leveling legs.
  • Page 45 Cool{ware material types Using proper cookware The size and type of cookware used will influence the The cookware material determines how evenly and quickly setting needed for best cooking results. Be sure to follow heat is transferred from the surface element to the pan the recommendations for using proper cookware as bottom.
  • Page 46 Specialty Pans & Trivets Canning Tips & Information Use tested recipes and follow instructions carefully. Wokswith fiat bottoms suitable for use on your cooktop Check with your local Cooperative Agricultural are available in most cookshop or hardware stores. Extension Service or a manufacturer of glass jars for Round-bottomed woks (with a support ring that does the latest canning information.
  • Page 47 Ceramic Glass Cooktop (model C only) About the Radiant Surface Elements The ceramic cooktop has radiant surface elements The element temperature rises gradually and evenly. located below the surface of the glass, The design of As the temperature rises, the element will glow red. To the ceramic cooktop outlines the area of the surface maintain the selected setting, the element will cycle ON element underneath.
  • Page 48 Element Hot surface indicator light Your appliance can be equipped with two different types (Model C only) of radiant surface control indicator lights that will glow The hot surface indicator light is located on the control on the backguard = the Element On indicator light and the panel (Figure 2) between the two right element control hot surface indicator lights.
  • Page 49 Surface cooking settings Operating the Surface Elements use the chart to determine the correct setting for the type To Operate the Surface Elements of food you are preparing. i. Place correctly sized cookware on the surface Note" The size and type of cookware used will influence element.
  • Page 50 Oven vent location Arranging oven racks ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS Each oven has its own vent as shown below (Figure COOL (PRIOR TO OPERATING THE OVEN). Always use 1). When the oven is on, warm air is released through oven miLLs when using the oven.
  • Page 51 Selector Control Knob Temperature Control Knob br0i[ gritter 200°F 95°C bake cuire Baking Broiling To Set the Controls for Normal Baking: To Set the Controls for Broiling= Arrange oven racks while the oven is still coo!. Arrange oven racks while the oven is still cool. For rare Turn the Selector Contro! Knob to the Bake position.
  • Page 52 Control pad features READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN, For satisfactory use of your oven, become familiar with the various features and functions of the oven as described below. Detailed instructions for each feature and function follow later in this Use & Care Guide, The oven function will not work if the time of day clock is not set.
  • Page 53 The oven function will not work if the time of day dock To turn the time of day display OFF or ON in the display press and hold the CLOCK pad for 8 seconds (the control is not set. will beep once) and then release. This feature does not TO SET THE CLOCK remove the set time of day from the memory of the When the range is first plugged in, or when the power...
  • Page 54 TO SET OR CHANGE TEMPERATURE - If using a Searing Grill (available by mail order), preheat the grill for 5 to 10 minutes before placing your meat. NORMAL BAKING - DO NOT use the broil pan without the insert. DO NOT The oven can be programmed to bake at any temperature cover the broil pan insert with foil, The exposed from 170°F to 550°F (77°C to 287°C).
  • Page 55 TO SET THE BAKE TIHE FEATURE The BAKE TIME and START TIME controls operate the Timed Bake Feature. The automatic timer will turn the Use caution when using the automatic timer. oven on and off at the times you select in advance. The Use the automatic timer when cooking cured or...
  • Page 56 SELF-CLEANING What to Expect during Cleaning While the oven isin operation, the oven heals to temperatures A self-cleaning oven cleans itself with high temperatures much higher than those used in normal cooking. Sounds (well above normal cooking temperatures) which of metal expansion and contraction are normal. Odor is eliminate soils completely or reduces them to a fine also normal as the food soil is being removed.
  • Page 57 SELF-CLEANING To Start the Self=Clean Cycle When the Self=Clean Cycle is Completed: *We recommend a 2 hour self-clean cycle for light soils, The time of day will appear in the display window and a 3 hour cycle for average to heavy soils (to assure and the "Door Locked"...
  • Page 58 Cleaning various parts of your appliance Before cleaning any part of the appliance, be sure all controls are turned OFF and the appliance is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANING WILL REDUCE THE NUMBER OF MAJOR CLEANING LATER.
  • Page 59 To Clean the Oven Bottom Porcelain enamel oven Cleaning (model A) Clean using hot, soapy water, a mild abrasive cleanser, a soap-filled abrasive pad or oven cleaner following oven cleaner manufacturer's instructions. Adhere to the following cleaning precautions: Allow the oven to cool before cleaning. •...
  • Page 60 To Replace Drip Bowls and Surface Elements Surface Elements Drip Bowls Slide the terminal end on the element through the Surface elements can be unplugged and removed to opening in the drip bowl. make cleaning the drip pans easier. The surface elements Align the element support to rest on the rim inside clean themselves when they are turned on.
  • Page 61 Ceramic glass cooktop cleaning & Porcelain enamel cooktop cleaning maintenance (Model C only) instructions (Models A & B only) Consistent and proper cleaning is essential maintaining your Ceramic glass cooktop, Do not use a cooktop cleaner on a hot cooktop. Prior to using your cooktop for the The fumes can be hazardous to your health, and can first time, apply the recommended...
  • Page 62 Cleaning recommendations for the ceramic glass cooktop (Hodel C only) Plastic or foods with a high sugar content: These types of soils need be removed immediately if spilled or melted onto the ceramic cooktop surface. Permanent damage (such as pitting of the cooktop Before cleaning the cooktop, be sure the controls are surface) may occur if not removed immediately, After...
  • Page 63 Care cleaning of stainless steel Some models are equipped with stainless steel exterior parts. Special care and cleaning are required maintaining the appearance of stainless parts. Refer to Oven door the General Care 8=Cleaning table for detailed cleaning instructions. Removing and replacing the lift-off oven door Figure 3 Figure 4...
  • Page 64 Oven baking For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance, Baking Causes...
  • Page 65 Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Range is not level, Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust leveling legs at base of range until the rack is level.
  • Page 66 Areas of Mineral deposits from water and food. Remove using a ceramic-glass cooktop cleaning discoloration with cream. Use cookware with clean, dry bottoms. metallic sheen, Poor baking results, Many factors affect baking results. Make sure the proper rack position is used. Center food in the oven and space pans to allow air to circulate.
  • Page 68 Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.
